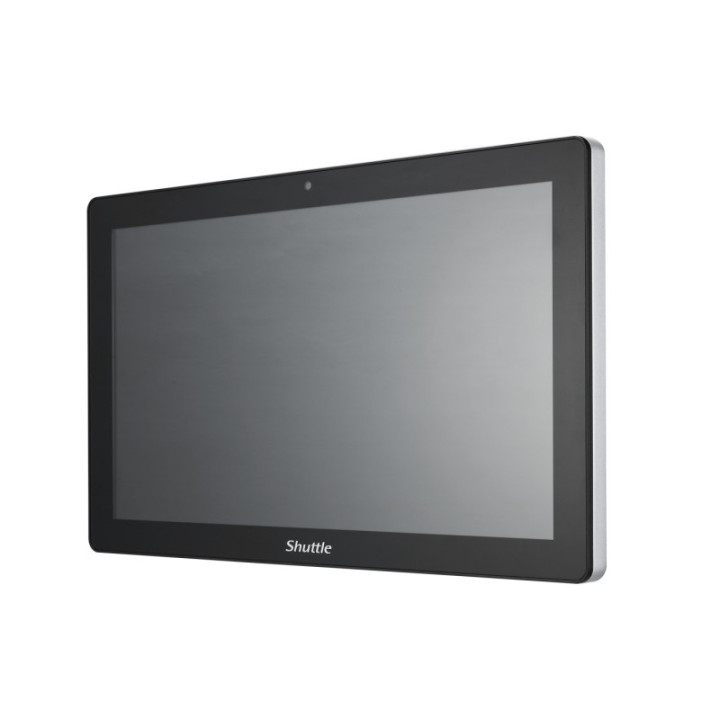

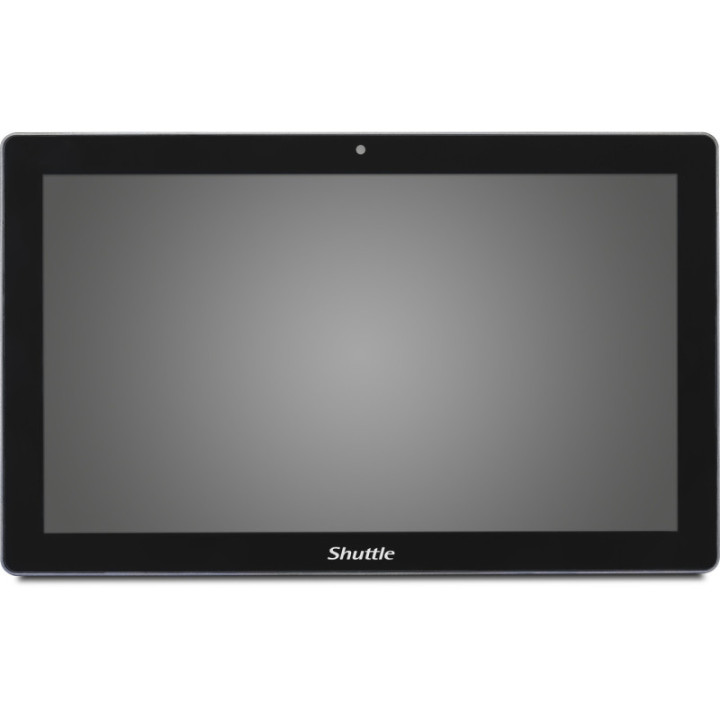

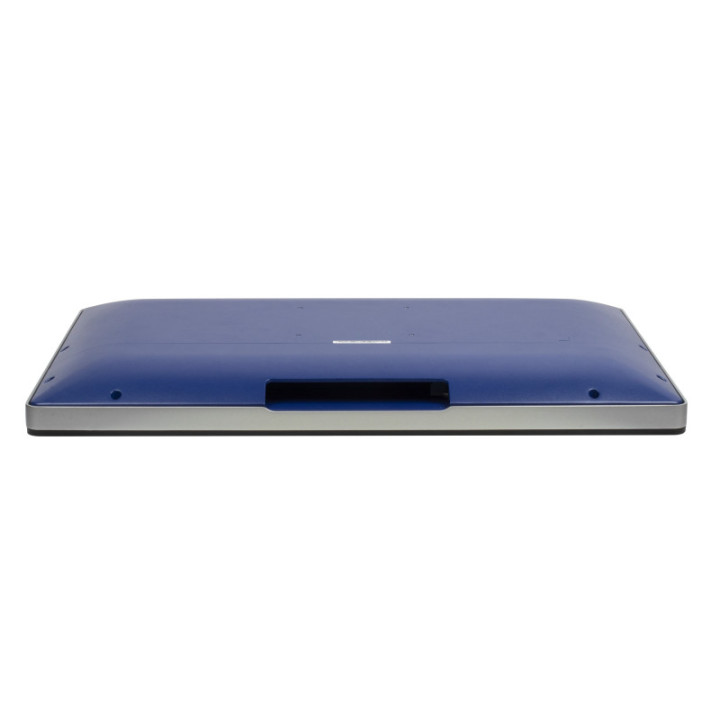

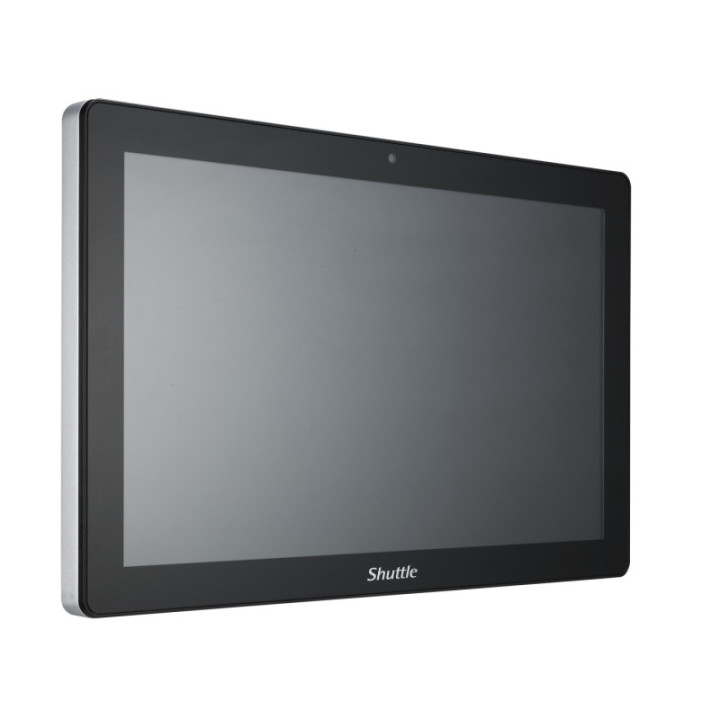

Shuttle PanelPC 21,5" P21AL01-I3 Blue

Shuttle PanelPC 21,5" P21AL01-I3 Blue

Panel-PC P21AL01-i3
Industry-grade Panel PC with 21.5" display
The high-value P21AL01 series of Panel PCs comes with a rugged Aluminium chassis with a IP65 compliant front panel and is powered by an Intel Core Gen12 ULV processor. The display is Full-HD and sports a projected capacitive 10-point multi-touch function. With its passive cooling the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. This makes it the perfect choice for rugged and public applications such as healthcare, hospitality sector, digital signage, POI, POS, Kiosk and industry.

ROBUST CHASSIS
◼ Colour: dark blue (rear) and black (front)

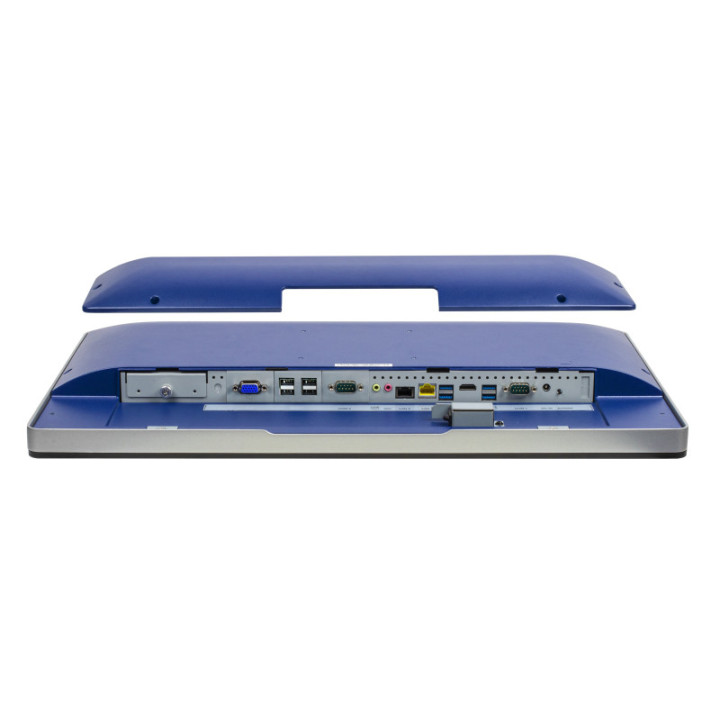

◼ Robust Aluminium chassis (3 mm thickness) with magnetic cover for the I/O connectors
◼ IP65 front panel protection
◼ Dimensions (WHD): 543 x 334 x 49.9 mm
◼ Net weight: 7.6 kg
◼ Fanless cooling system
◼ Operating temperature: 0 ~ 40 °C
◼ Humidity: 20 ~ 80% RH non-condensing
◼ Supports 100 x 100 mm VESA mount (VESA mount and stand are not included)
TOUCH PANEL AND GRAPHICS
◼ High quality 21.5” / 54.6cm display with 1920x1080 pixels
◼ Brightness: 500 cd/m2 (nits), Contrast ratio 1000:1, Viewing angle: 89° (all directions),
Response time: 22 ms
◼ Capacitive touch panel with 10-point multi-touch
◼ Integrated Intel UHD graphics
OPERATING SYSTEM
◼ An operating system is not included.
◼ Supports Windows 10, Windows 11 and Linux (64-bit)
PROCESSOR
◼ Intel Core i3-1215U, 2x P-Core, 4x E-Core, 10 MB Cache
◼ Intel Core Gen. 12, “Alder Lake" ULV Prozessor, 15 W TDP
RAM & SSD SUPPORT (not included)
◼ RAM: 2x 262-pin SO-DIMM slot supports up to 2x 32 GB DDR5-4800
◼ M.2-SSD card: M.2-2280/2242 M slot supports PCIe/NVMe and SATA
◼ Swappable drive tray for 2.5”/7mm SATA SSD storage drive

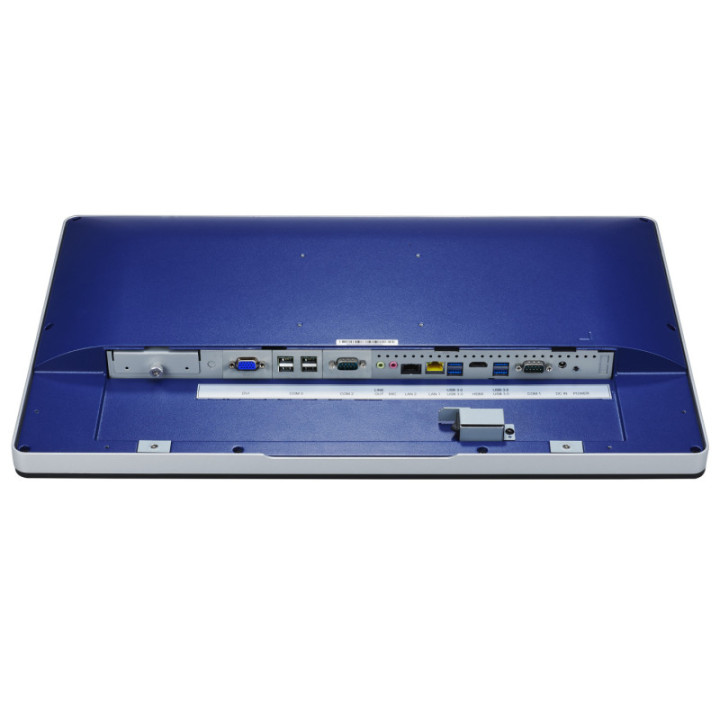

BACK PANEL CONNECTORS
◼ HDMI 2.0b
◼ VGA Port
◼ 4x USB 3.2 Gen 2 (10 Mbps)
◼ 4x USB 2.0
◼ Dual 2.5G LAN (Intel 226)
◼ 2x COM Ports (RS232)
◼ Mic-in and Line-out
◼ DC-input 19V
◼ Power Button and Easy Rock Switch
OTHER FEATURES
◼ WLAN 802.11ac / BT 4.2 with two internal antennas
◼ Hardware TPM v2.0
◼ Full-HD Webcam
◼ Two internal speakers (2x 2W, stereo)
POWER SUPPLY
◼ Power adapter 90W/19V
◼ AC input 100~240V 50~60 Hz, 3-pin connector
◼ DC input: 19V (optional 9~36V on request)
