XPC slim DL40N
Efficiency meets resilience: The fanless 1.3-litre powerhouse for 24/7 operation
Silence meets performance. The Shuttle XPC slim Barebone DL40N is the sophisticated successor to the proven DL30N, engineered for environments where reliability and silence are non-negotiable. Powered by the energy-efficient Intel "Twin Lake-N" N150 processor, this fanless 1.35-litre PC is the ideal foundation for slimline workstations, robust edge computing, or high-availability client/server setups.

Connectivity is at the heart of the DL40N. Featuring dual Intel 2.5G LAN ports for high-speed networking and an optional 4G upgrade, it ensures seamless integration even in mobile or remote applications. The integrated Intel UHD Graphics supports hardware acceleration for 4K video playback across three independent displays (HDMI, DisplayPort, VGA), making it a versatile choice for digital signage and multi-monitor office environments.

Designed for 24/7 continuous operation and encased in a durable metal chassis, the DL40N remains noiseless when paired with an SSD. Whether it’s for industrial control, point-of-sale, or silent office use – the DL40N delivers professional-grade performance in a compact, maintenance-free form factor.

Equipped with Intel processor N150
Up to 16 GB DDR5 memory
Two M.2 slots (1× M.2-2280, 1× M.2-2230)

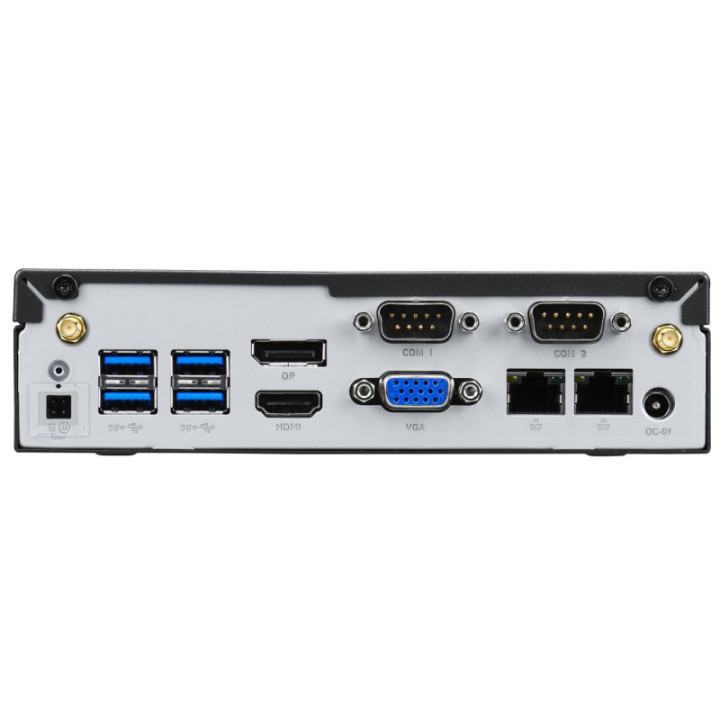

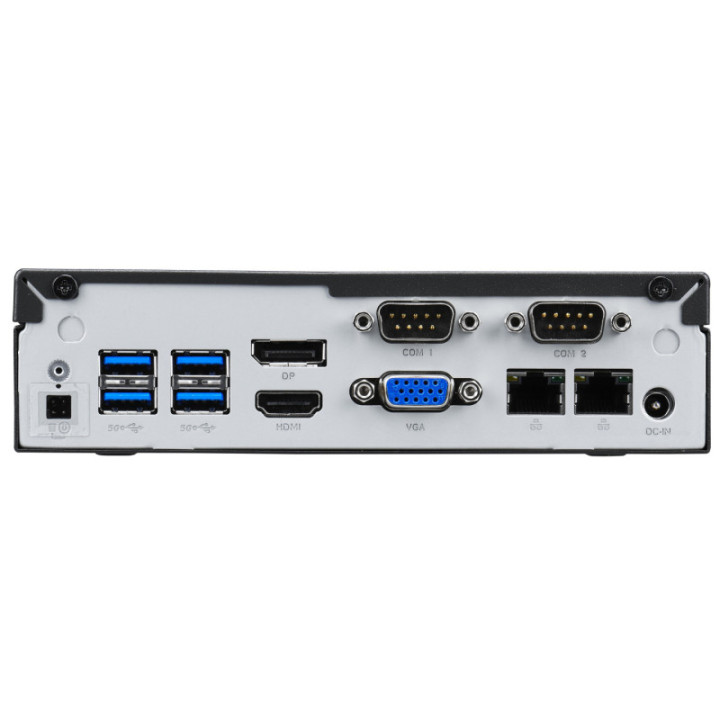

2× 2.5 Gbit Ethernet
8× USB 3.2 (5 Gbit), 2× COM
1× HDMI 2.0b, 1× DisplayPort 1.4, 1× VGA
Offers space for 1× 2.5" HDD/SSD and NVMe SSD
Suitable for 12 or 19 V DC
Remote power-on connection
Wall/VESA mounting option
Optional DIN-Rail/19” mount
