Shuttle DB860

Shuttle DB860

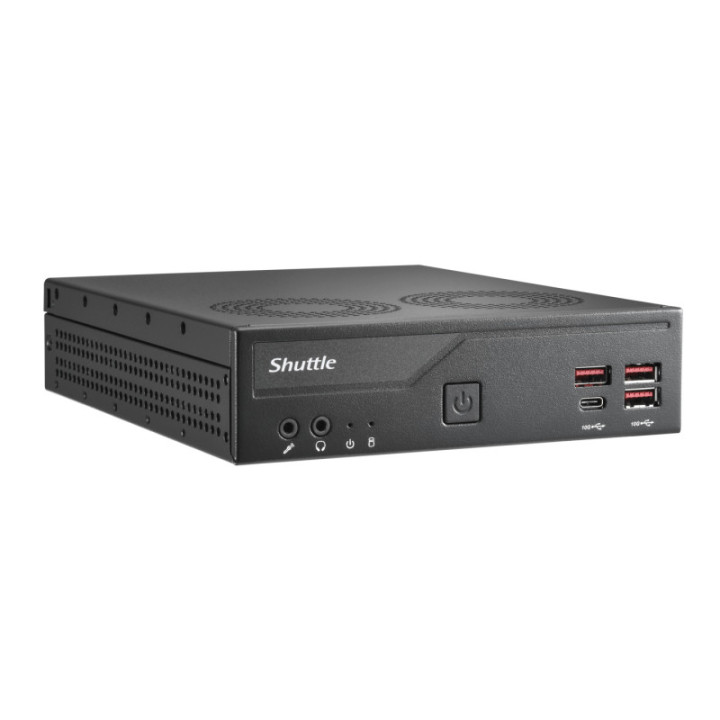

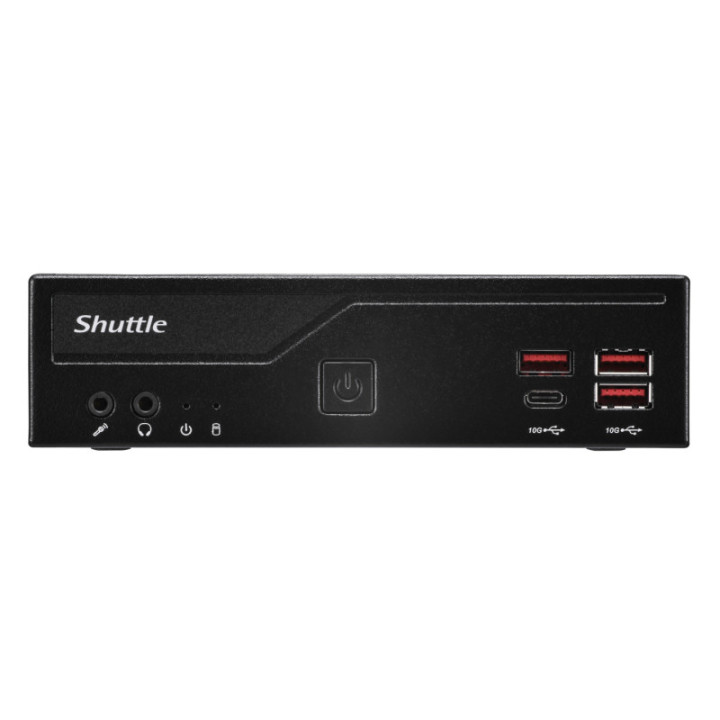

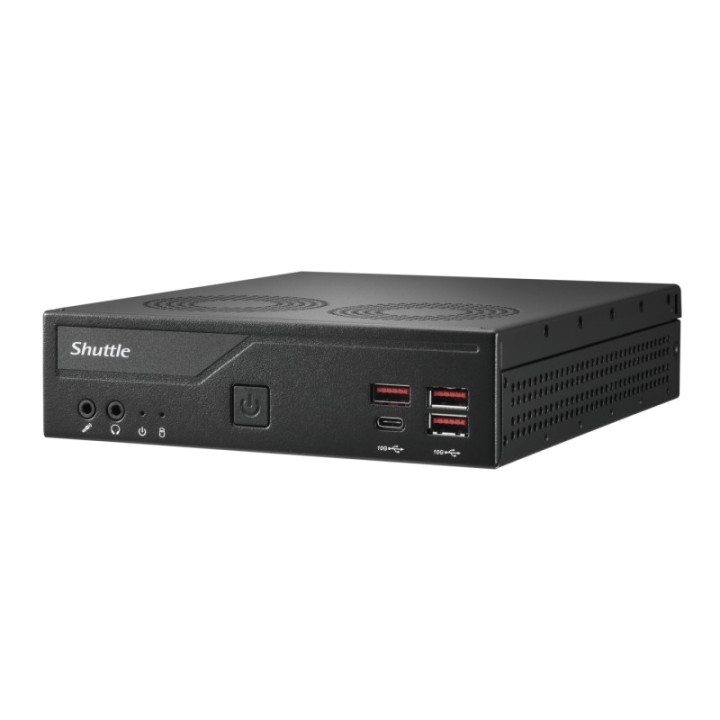

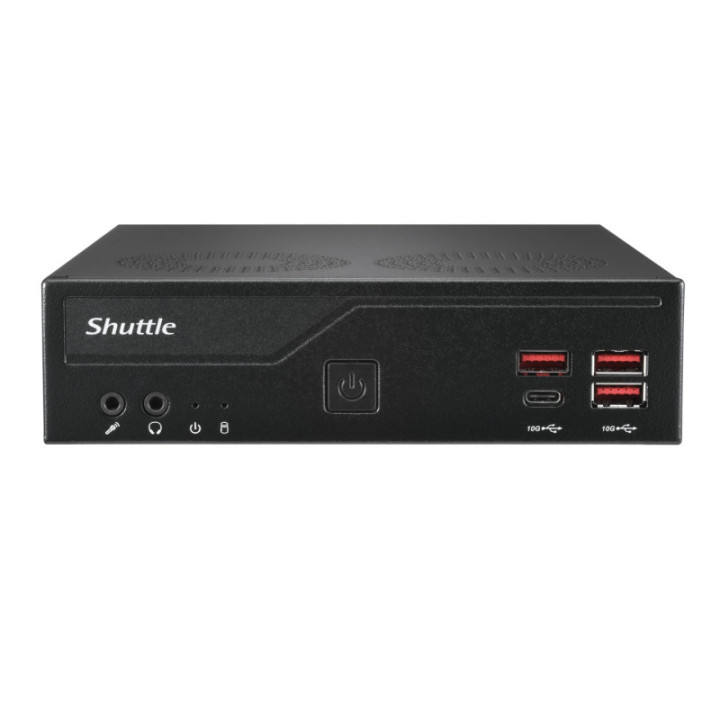

XPC slim DB860
Robust 1.3-litre PC supports Intel Core Ultra 200 processors and up to four displays

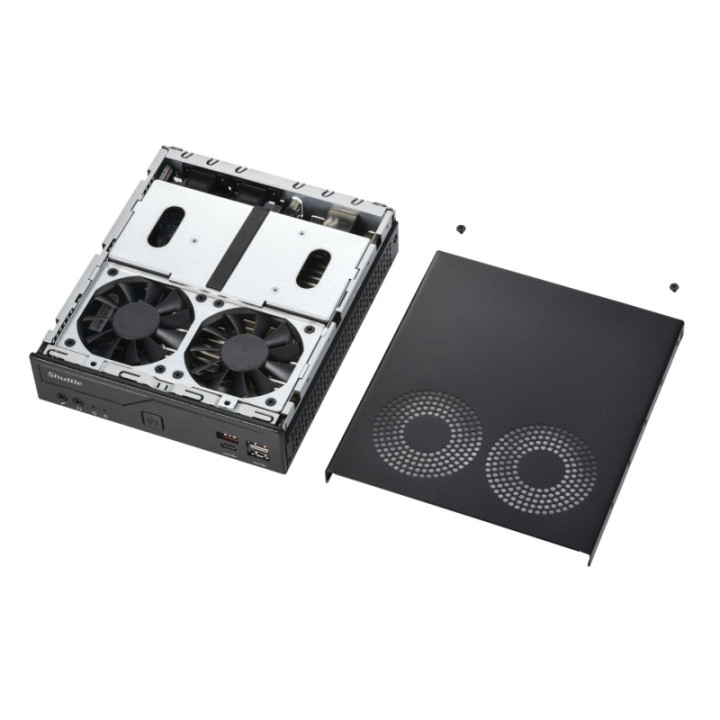

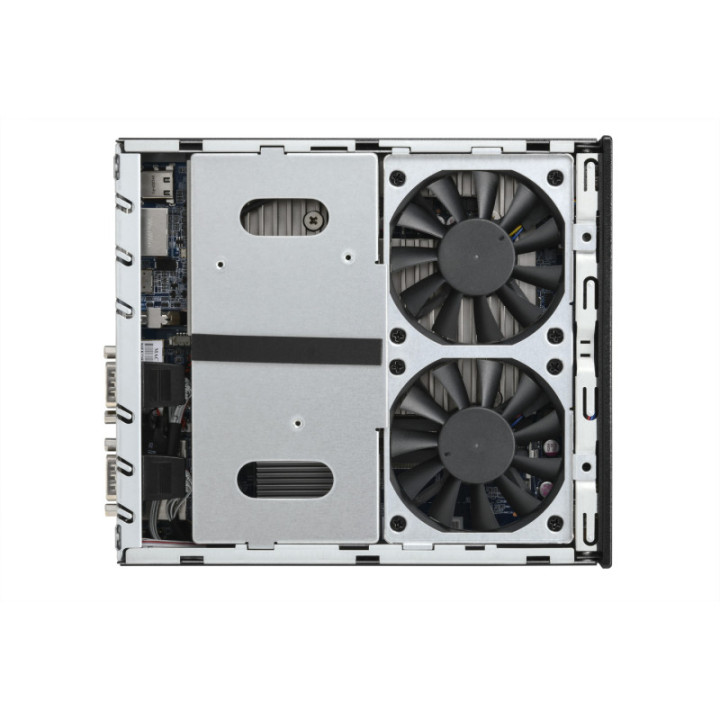

This robust 1.3-litre Barebone PC houses the performance of Intel's Core Ultra 200 series processors (Socket LGA1851 "Arrow Lake-S") with Integrated Neural Processing Unit (NPU) for demanding AI workloads. The DB860 supports up to 8K display resolution via HDMI 2.1 plus one HDMI 2.0 and two DisplayPorts (one as USB-C), delivering a stunning visual experience for digital signage and entertainment. Beside this it also offers Dual Intel LAN, eight additional USB 3.2 ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as AI tasks, Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

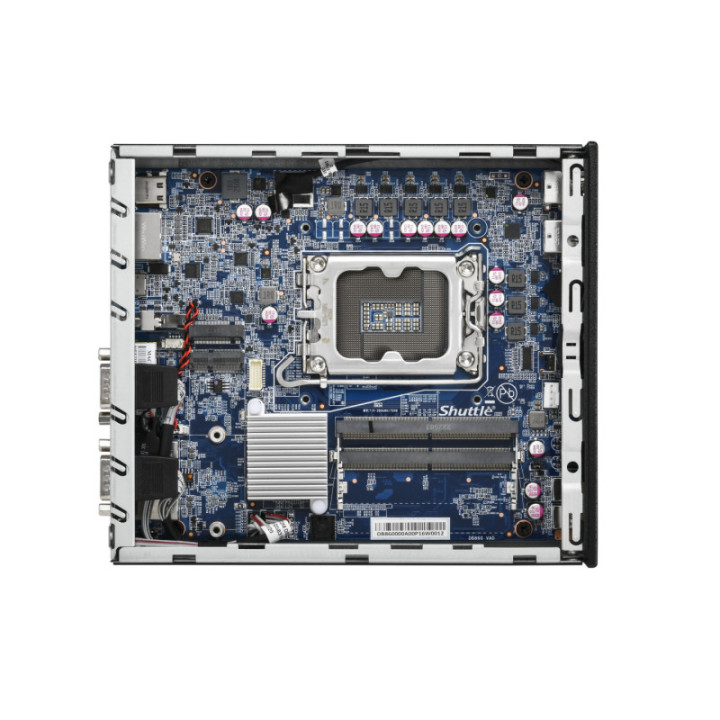

Intel B860 LGA 1851
2 x SO-DIMM DDR5-5600 (max .96GB)
USB 4+4+1 (2x USB 10 Gbps)
2x SATA (1+2.5G)

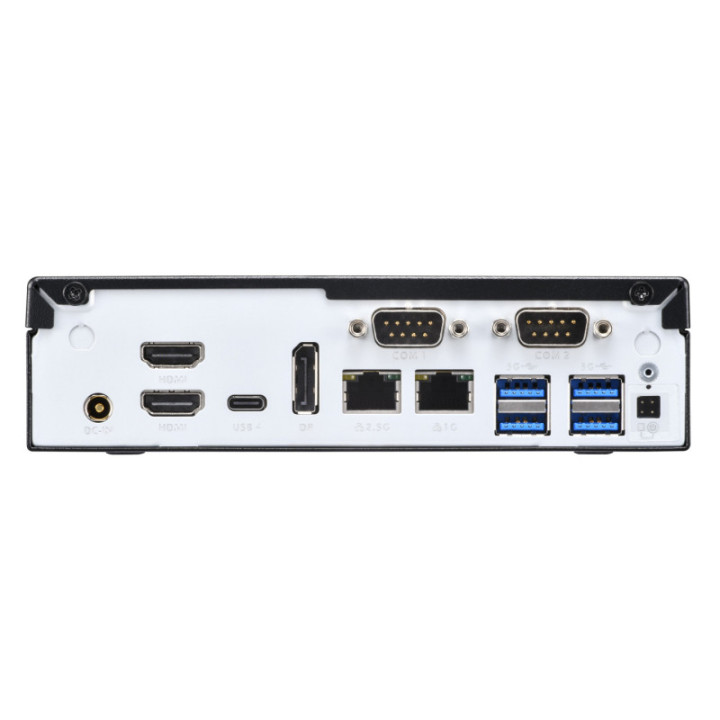

1x HDMI 2.0 , 1x HDMI 2.1 , 1x DP , 1x USB-C (supports DP)
supports 4 displays
external 180W fanless
