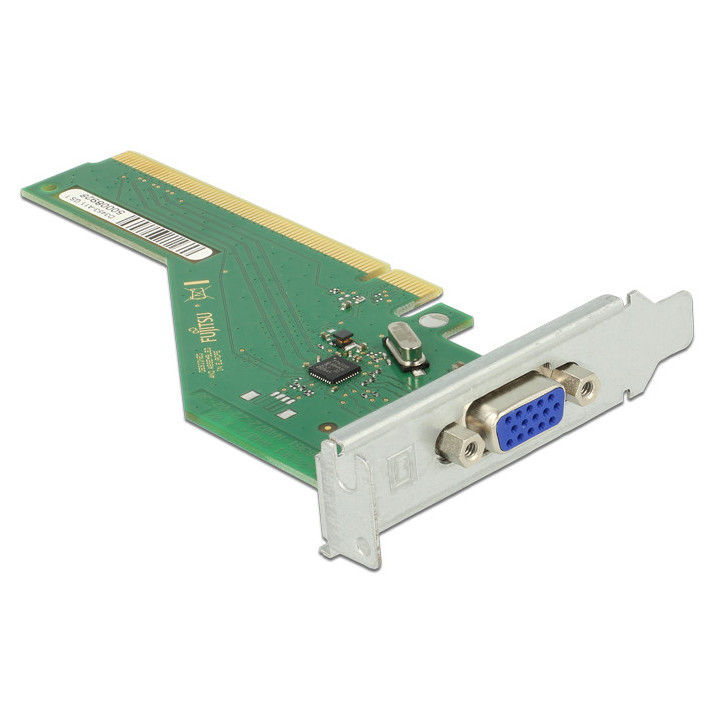

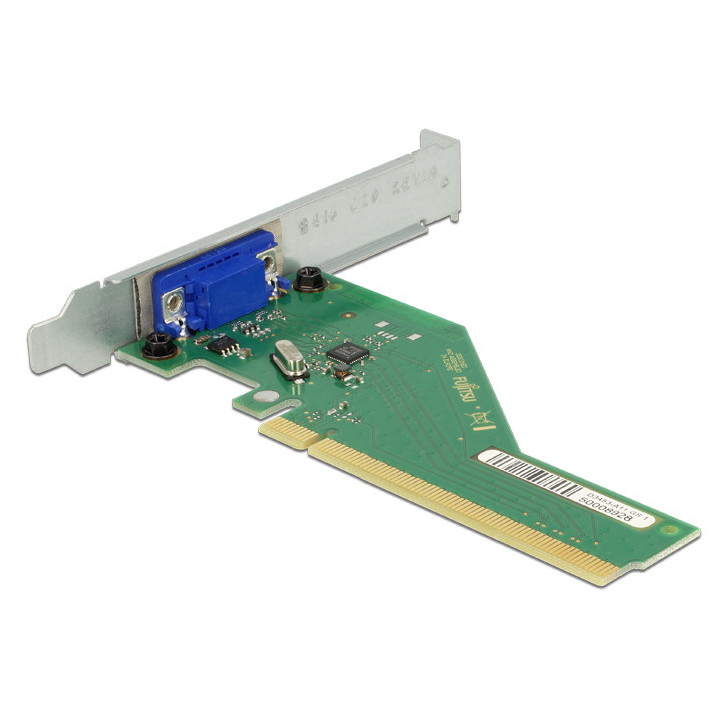

Fujitsu VGA Converter Board D3453
This low-cost VGA converter board provides a VGA output for iQ150- / iQ170- and
iC236-based Fujitsu mainboards.

Specifications:
Provides a VGA connector via integrated
converter chip NXP PTN3355
Interface:
PCIe x16 slot (FTS specific: PEG Slot not possible)
Supported Resolutions:
Max. resolutions:
1920 x 1440 @ 60 Hz (18 bpp)
2048 x 1152 @ 60 Hz (reduced blanking, 24 bpp)
2048 x 1536 @ 50 Hz (reduced blanking, 24 bpp)
Driver Support:
No additional drivers required
Supported Mainboards:
D3401-A/-B, D3402-A/-B, D3417-A/-B: Must be installed in Slot #4: PCIe x16 (4 lanes, Gen3)
D3441-S, D3446-S: Must be installed in Slot #3: PCIe x16 (4 lanes, Gen3)
D3445-S: Must be installed in Slot #3: PCIe x16 (1 lane, Gen2)

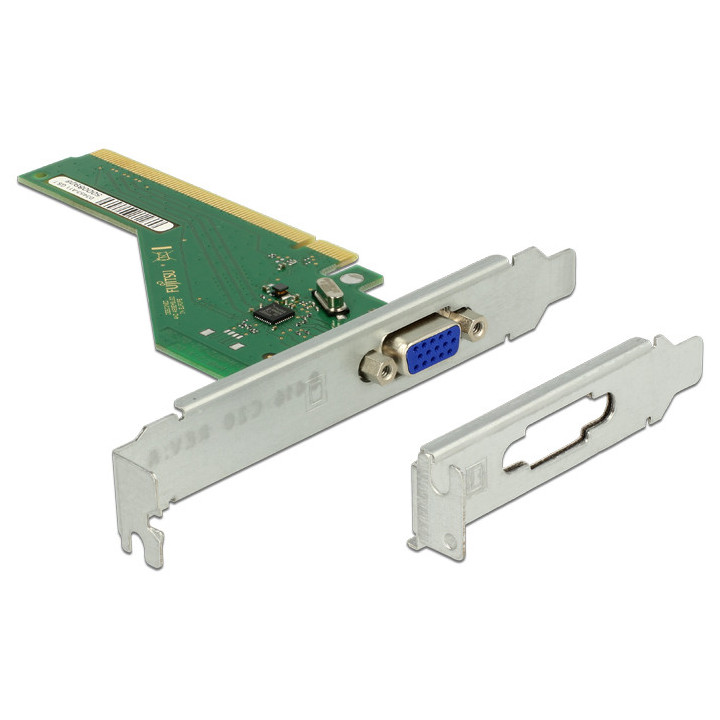

Package Content:
D3453 VGA converter board
ATX and SFF slot bracket
Mounting screws for slot bracket
