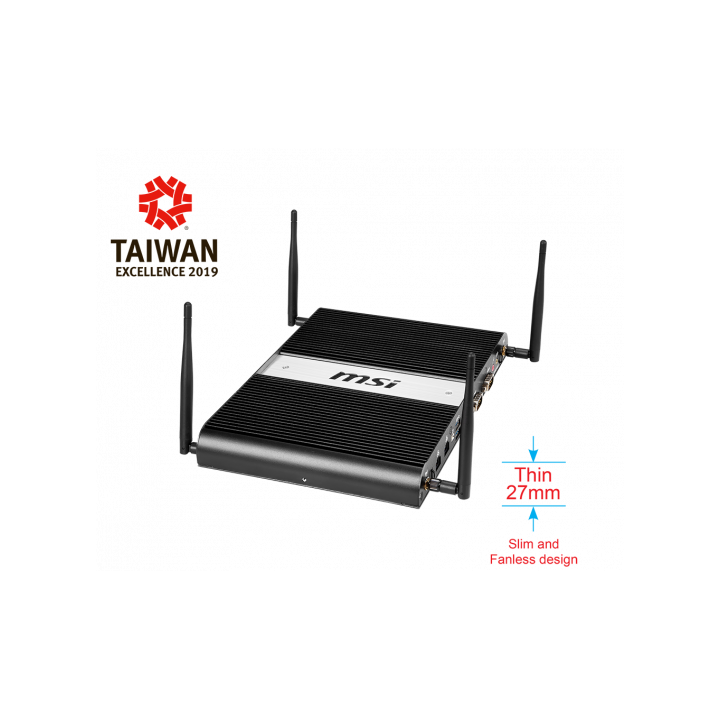

MSI WindBOX MS-9B05 / i5 8265U

MSI WindBOX MS-9B05 / i5 8265U

Flexible Expansion Box PC with Intel® Whiskey Lake ULT, 3 Display Outputs & Easy Maintenance for Digital Signage Player & Automation
Intel® 8th Gen Whiskey Lake-U Series
2 DDR4 2400 MHz (by option) SODIMM slots up to 32GB

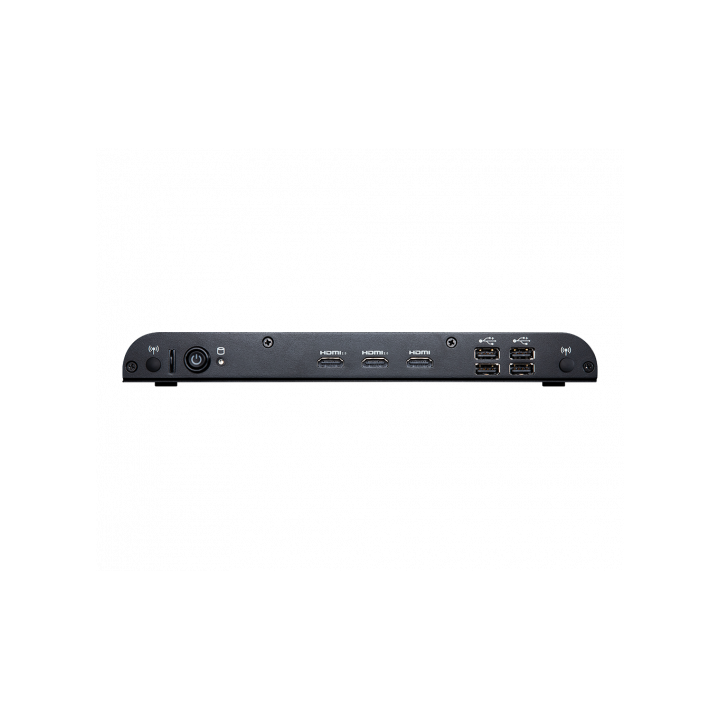

Triple independent displays: HDMI(DVI-D by option), 2 HDMI(DP by option)
HDMI 2.0
2 GbE LAN with RJ-45
Expansion slots: 1 M.2 E Key, 1 M.2 M Key, 1 Mini-PCIe (Full/Half size, with SIM Holder), 1 Mini-PCIe (Full/Half size, with mSATA) slots
mSATA, M.2 M key, SATA 3.0 (2.5” SSD/HDD, 7mm) for storage

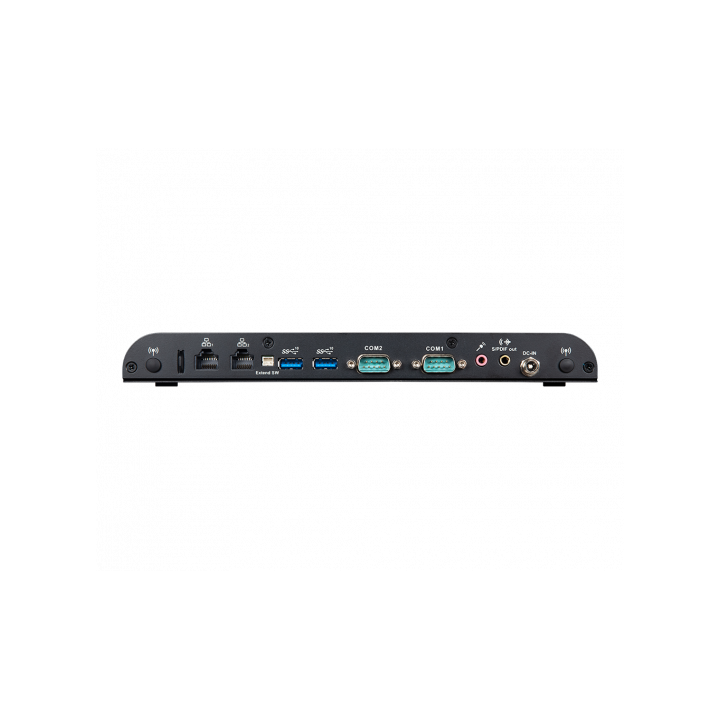

2 USB 3.2 Gen 2 (by option), 4 USB 2.0, 2 COM(2 RS485), Audio
Onboard TPM 2.0 (by option)
ESD: Contact 8KV/ Air 15KV
Easy access:
Only 2 screws to fix/remove bottom cover within 6 secs
Quick Assembly all on bottom side: 2 x Memory, 2 x Mini-PCIe, 2 x M.2, 1 x 2.5” HDD/SSD, SIM Card Slot
4 openings reserved for WiFi/BT/LTE antennas
Compliance IEC 61373
Wide Voltage DC-IN 9~36V
Ultra-Slim & fanless design with thinness 27mm

Intel Core i5 8265U
2 DDR4 2400 MHz (by option) SODIMM slots up to 32GB
HDMI 2.0 up to 4096 x 2160 @60Hz
HDMI 1.4 up to 4096 x 2160 @24Hz
2 USB 3 , 4 USB 2.0, 2 COM(2 RS485), Audio
4 openings reserved for WiFi/BT/LTE antennas
Wide Voltage DC-IN 9~36V
