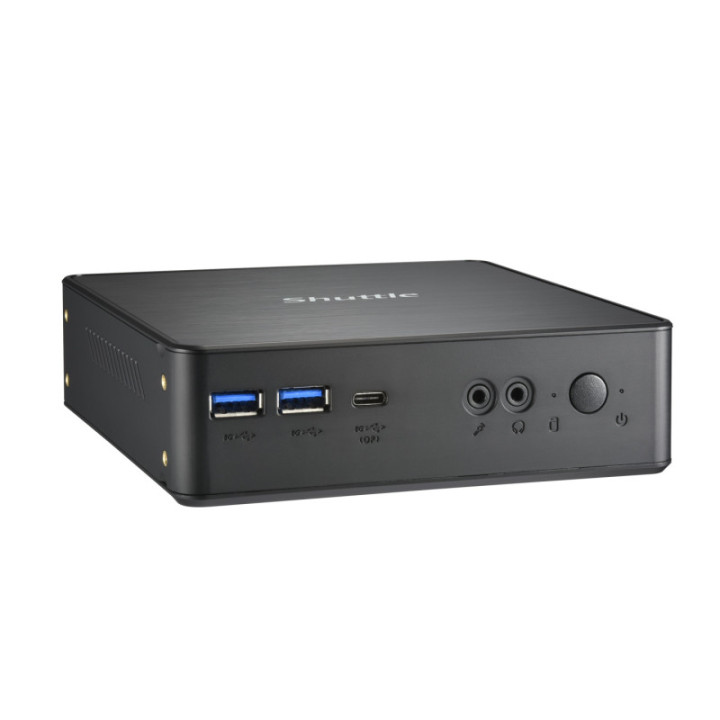

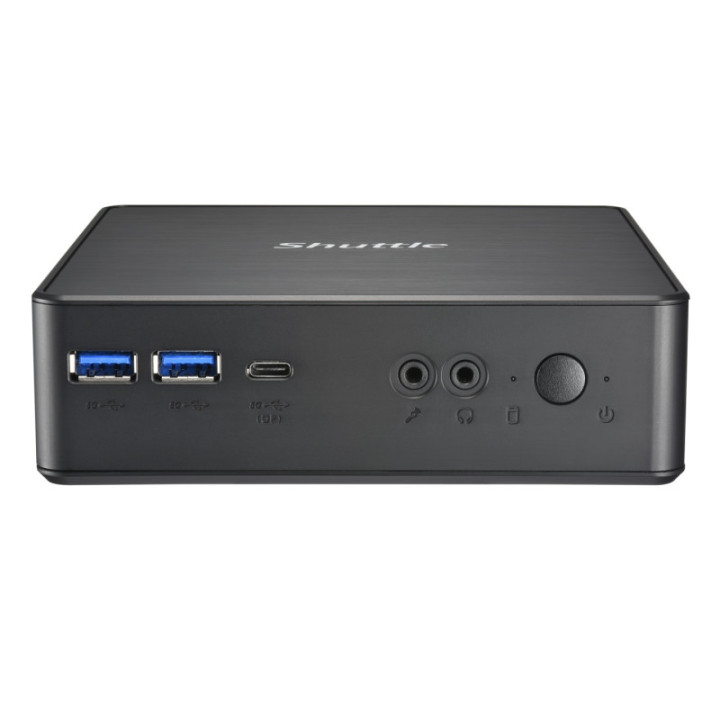

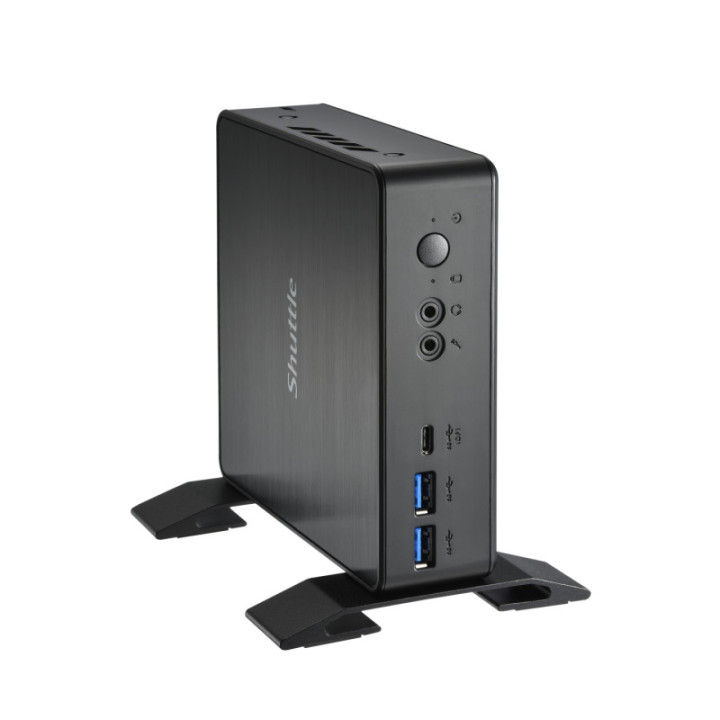

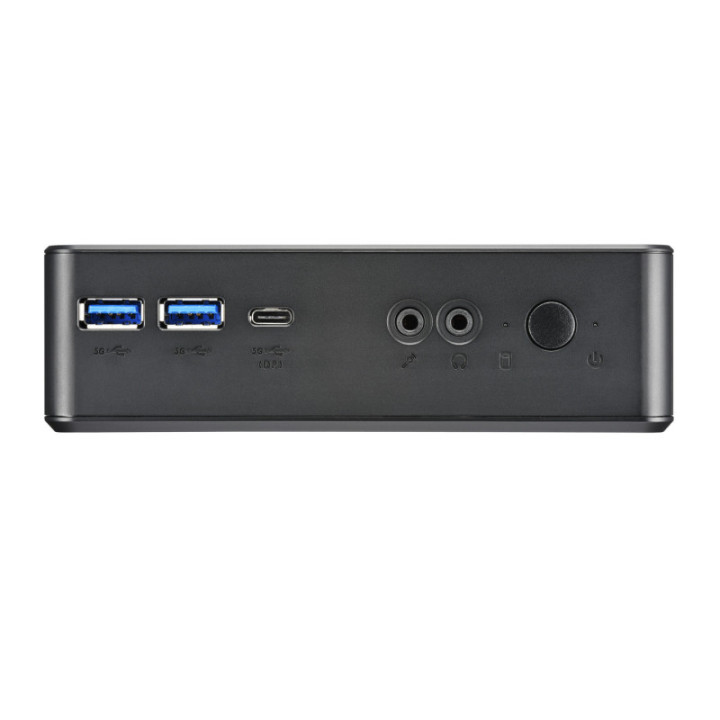

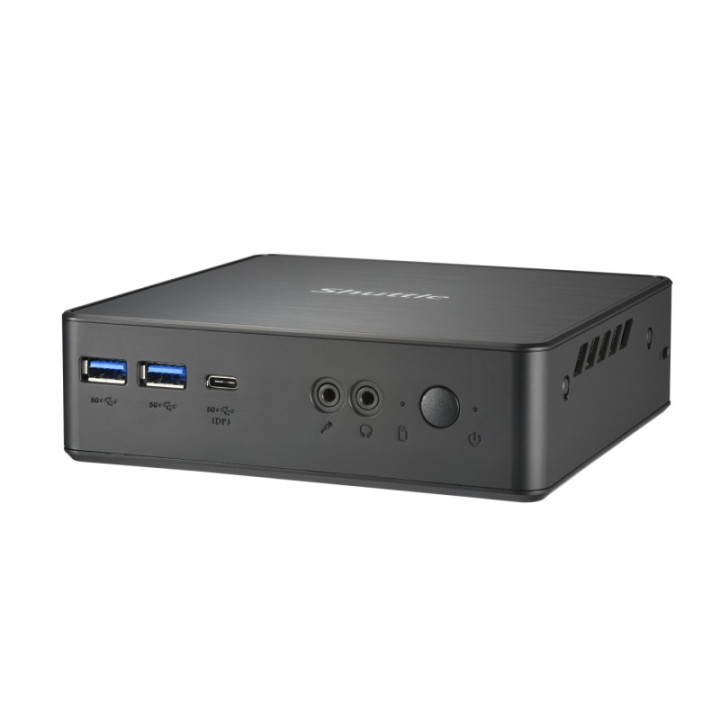

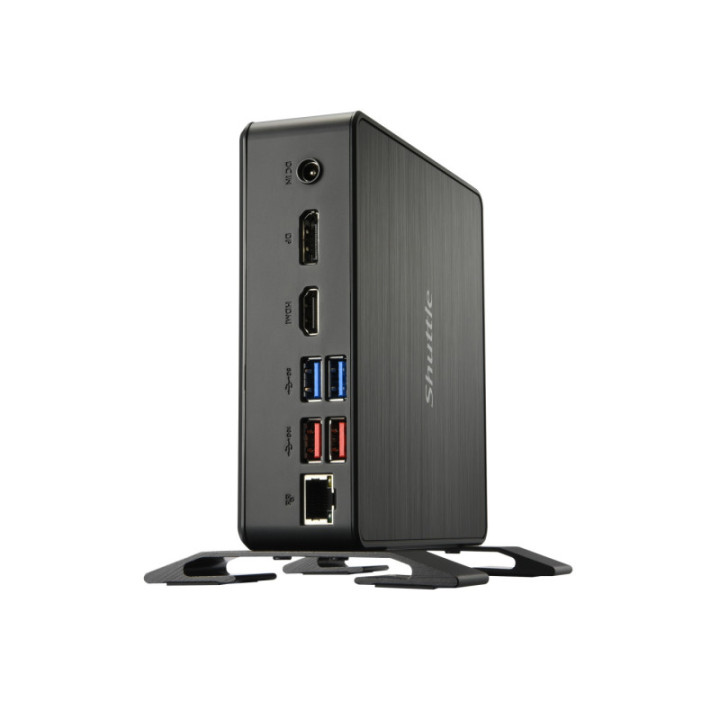

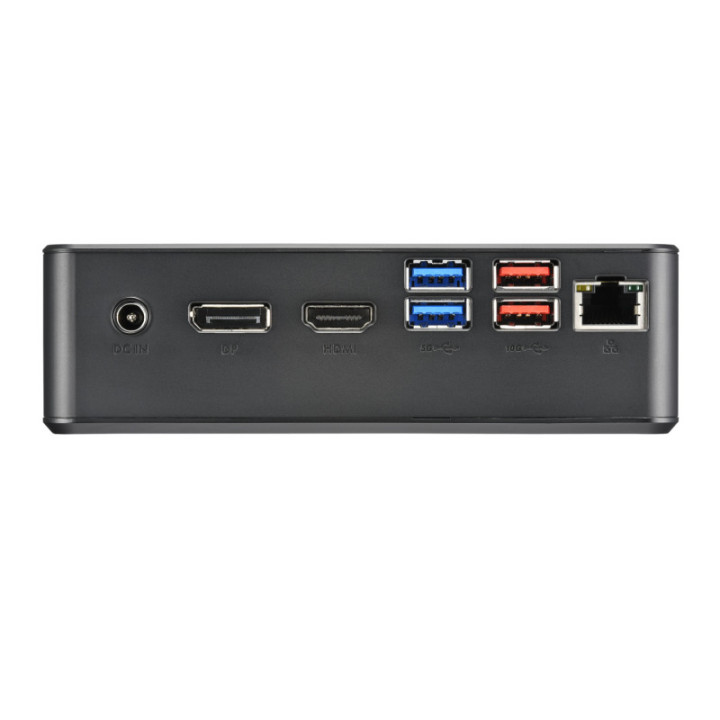

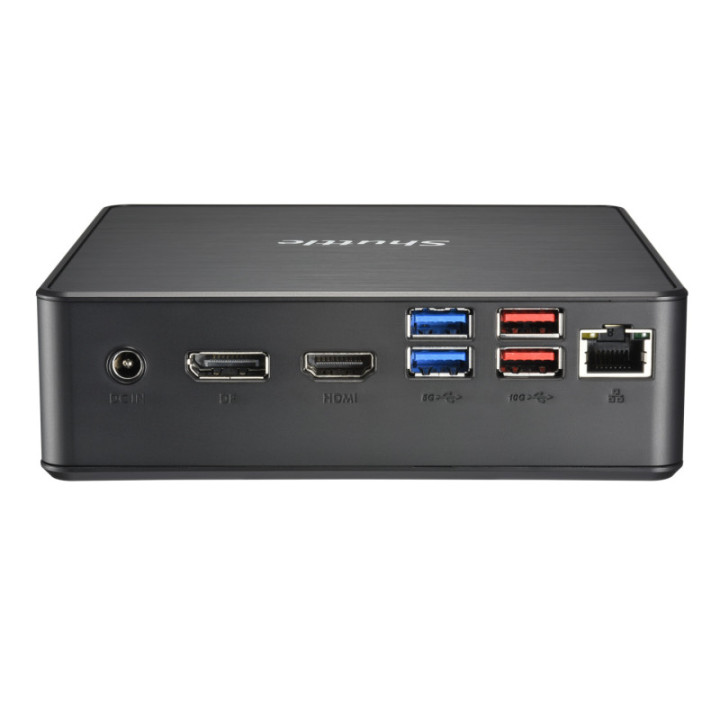

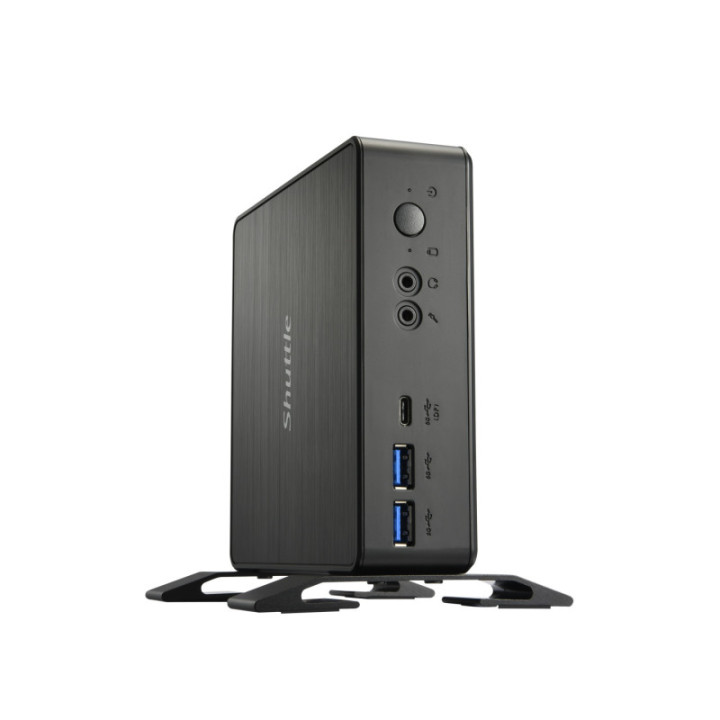

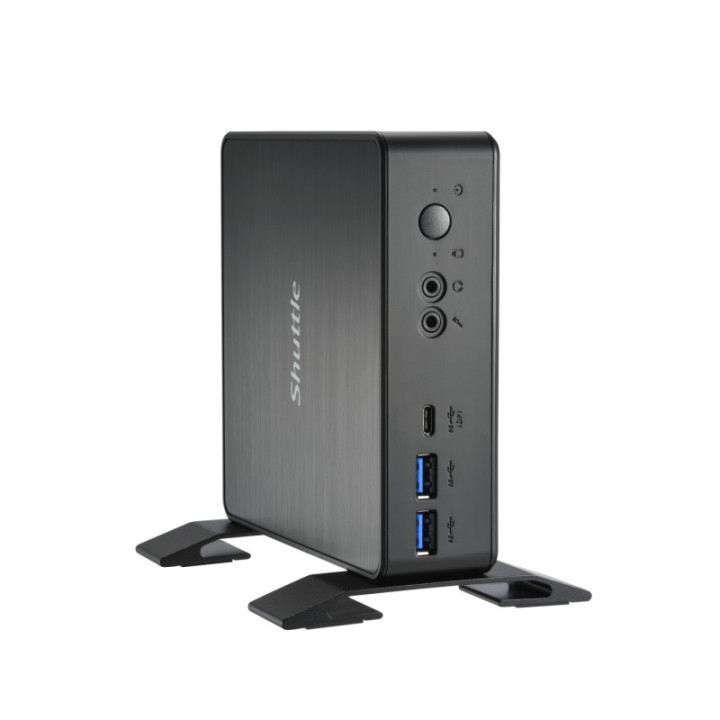

XPC nano NC40U5
Many ports and high performance in nano format
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.

Intel Core i5-1235U Processor
Intel UHD Graphics for 12th Gen Intel Processors
Up to 64 GB of DDR4 SO-DIMM memory
2× NVMe (RAID support), 1× SATA 2.5"

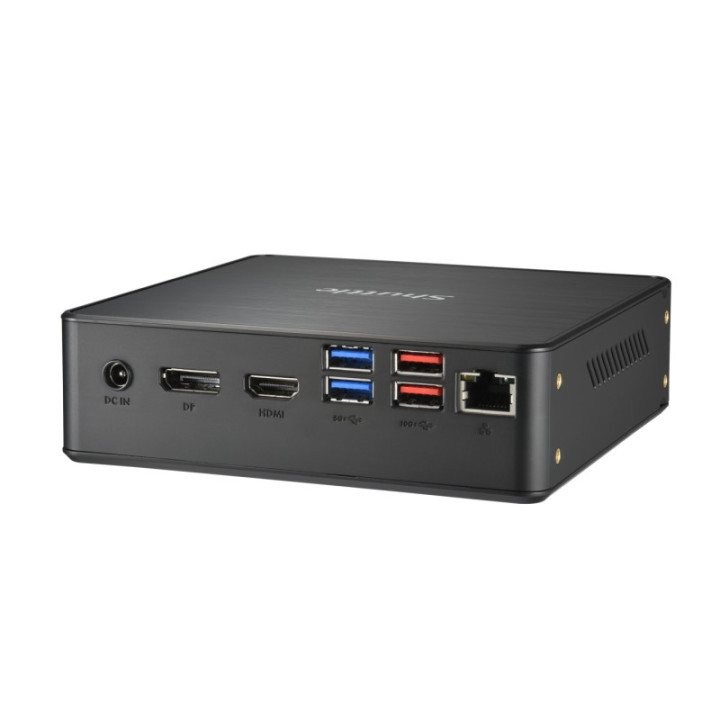

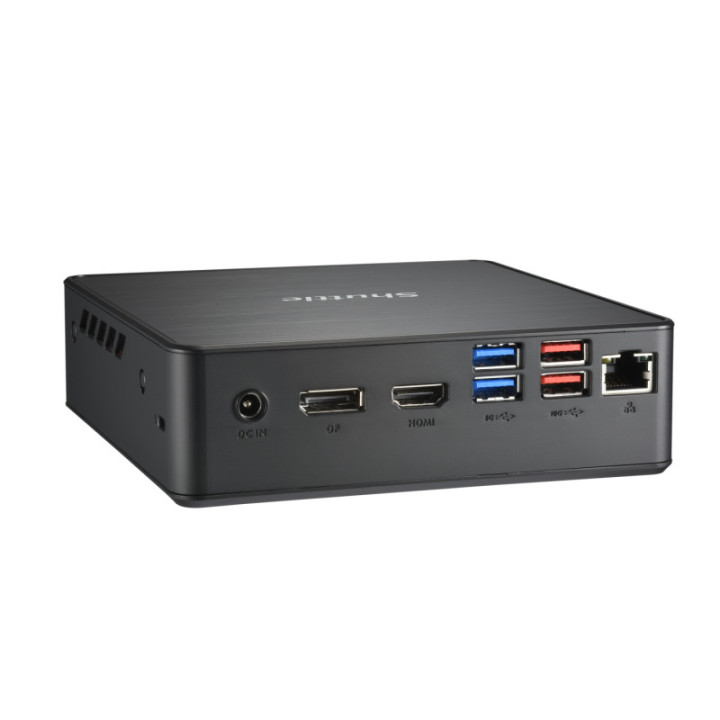

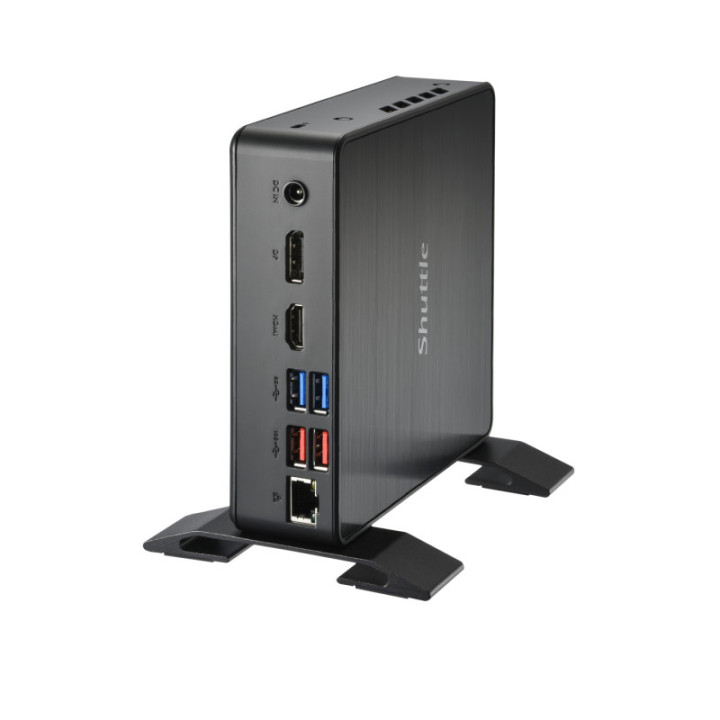

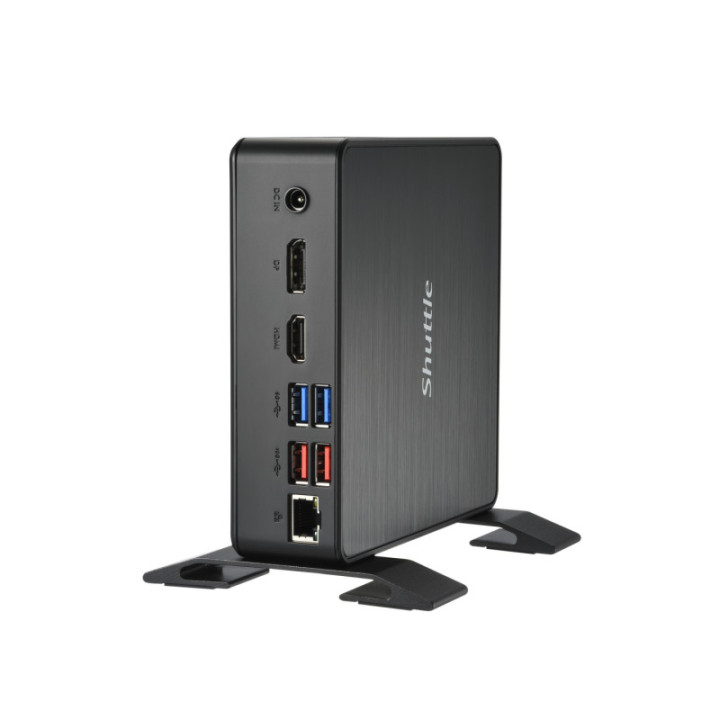

1× HDMI 2.0b, 1× DisplayPort 1.4a
2× M.2-2280, 1× M.2-2230
Gigabit Ethernet
2× USB 3.2 Gen 2 (10 Gbit), 4× USB 3.2 Gen 1 (5 Gbit), 1× USB 3.2 Gen 1 (5 Gbit) Type C
Always-on jumper
Wall/VESA mount included
