Fanless MBox MS-9A69 I5 7300U

Fanless MBox MS-9A69 I5 7300U

Intel® 7th Gen Kaby Lake-U Series
DDR4 2133 MHz SODIMM Slot up to 16GB

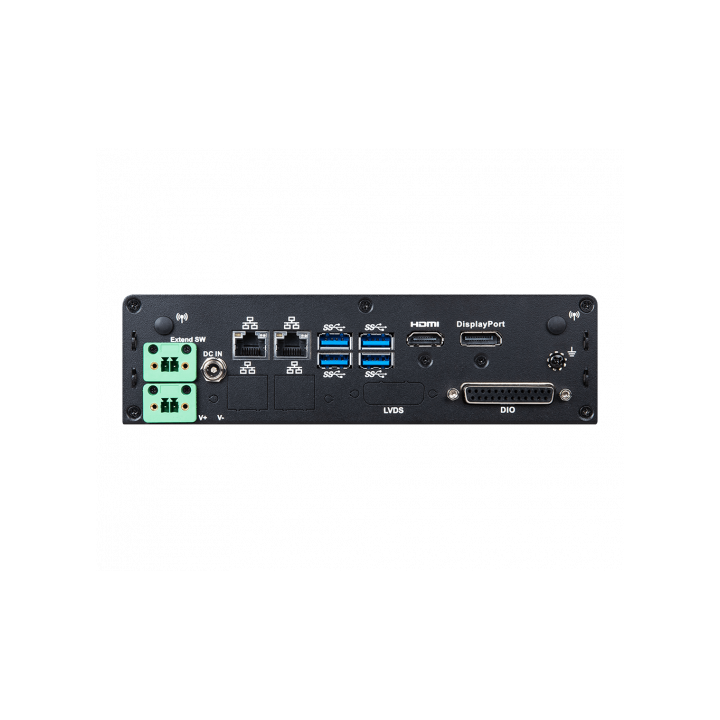

Triple independent displays: DP++, HDMI, LVDS/DVI-I (by option)
2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
2 SATA 3.0 storage (2.5” SSD/HDD) , micro SD for storage
SATA RAID 0/1

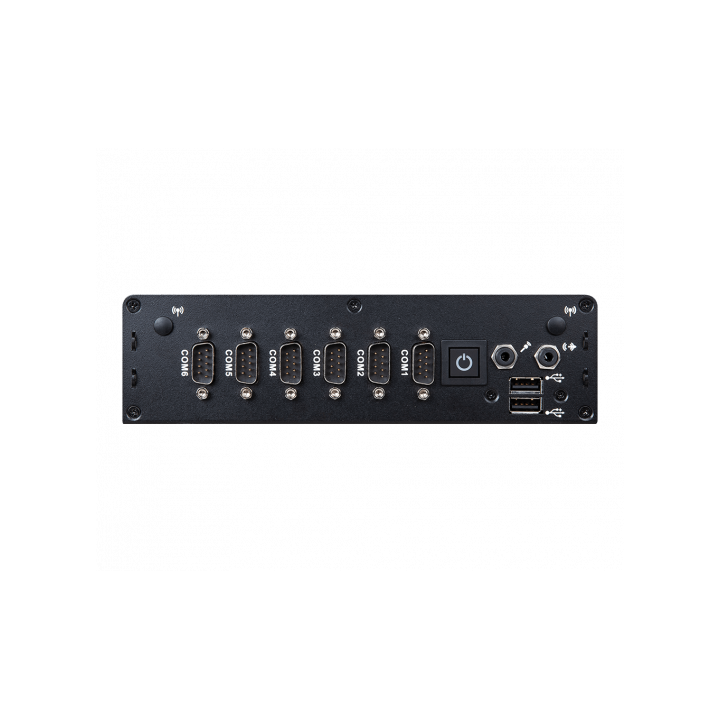

4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
4 opening resrved for antennas
Anti-Vibration & Shockproof Design to Compliance IEC 61373
Wide Voltage DC-IN 12~24V

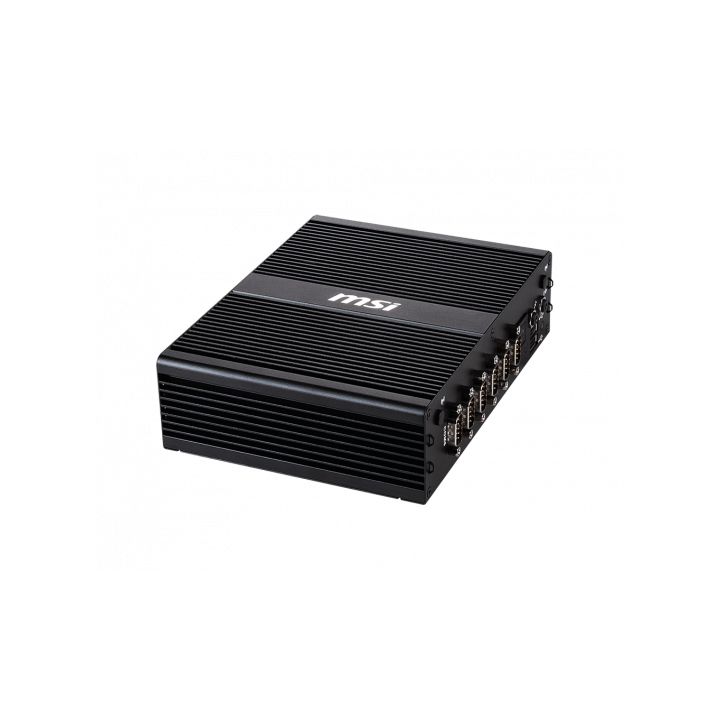

Ultra-Compact with fanless design

Intel® Kaby Lake-U Core™ i5-7300U Processor, DC, 15W
Single-channel DDR4 2133 MHz Up to 16GB
Triple independent displays: DP++, HDMI, LVDS (by option)
2 GbE LAN with RJ-45, 2 GbE LAN by Mini-PCIe expansion card with RJ-45 (by option)
Mini-PCIe (Full size, with mSATA), Mini-PCIe (Full size, with Nano SIM Holder) Slots
SATA 3.0 storage (2.5” SSD/HDD) , micro SD for storage
4 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio
4 opening resrved for antennas
Anti-Vibration & Shockproof Design to Compliance IEC 61373
Wide Voltage DC-IN 12~24V
Ultra-Compact with fanless design
