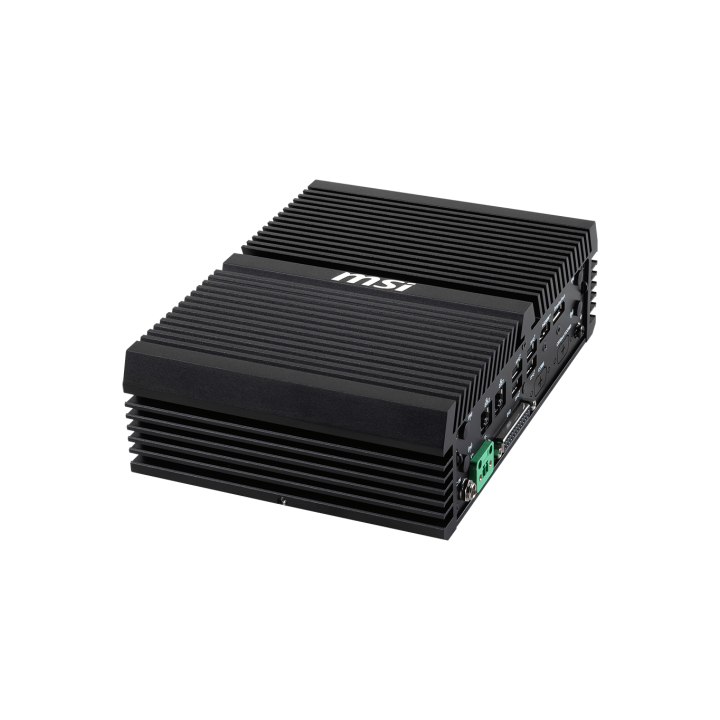

MSI BoxPC MS-C903 I5-1145GRE

MSI BoxPC MS-C903 I5-1145GRE

MS-C903
Compact-Size Box PC with Intel® Tiger Lake-UP3 Processor for Ultra Low-Power Fanless Solution
Intel® 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series
2 DDR4 3200 MHz SODIMM Slots up to 64GB
Dual independent displays: DP++ , HDMI
2 2.5GbE LAN with RJ-45
1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
1 M.2 M key, 1 SATA 3.0 for storage (2.5” SSD)

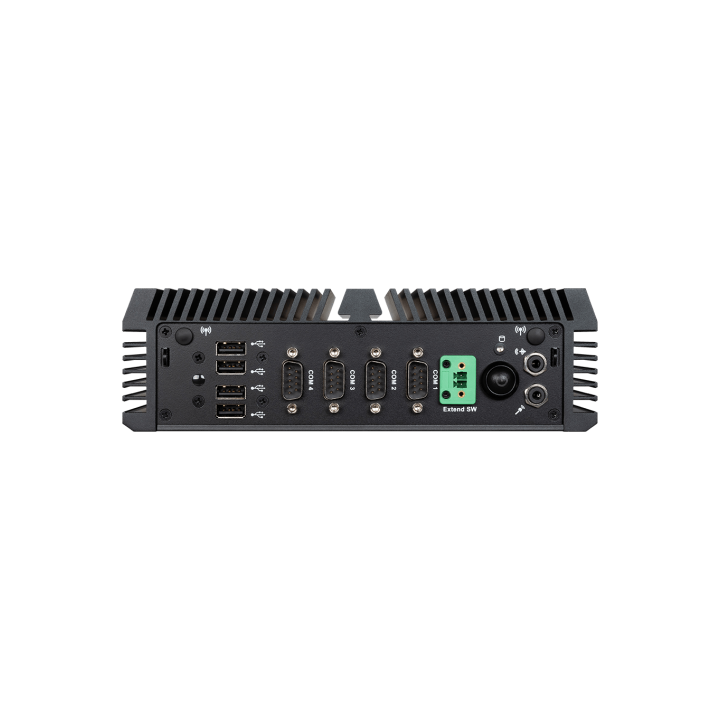

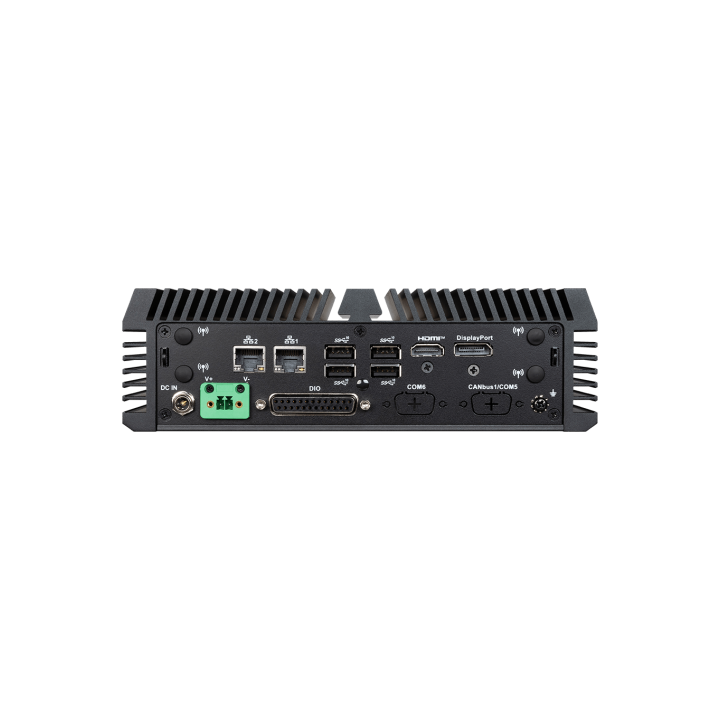

4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), 2 COM or 1 CANbus (Option by M.2 Module), DIO, Audio
Onboard TPM 2.0
6 opening reserved for antennas
Anti-Vibration & Shockproof Design to Compliance IEC 61373
Wide operating temperature: -20~70°C
Wide Voltage DC-IN 12~24V (OCP & OVP)
Ultra-Compact with fanless design

Intel Core™ i5-1145GRE
2 x 260-pin SO-DIMMs Dual-channel DDR4 3200 MHz
Intel® UHD Graphics
HDMI 1.4 up to 4096 x 2160 @30Hz
DP up to 7680 x 4320 @60Hz
2 x Intel® I225-LM GbE LAN
DC-in 12V~24V Wide-Range (OCP & OVP)
Phoenix pluggable connectors with latch (V+, V-)
215 x 155 x 65 mm
