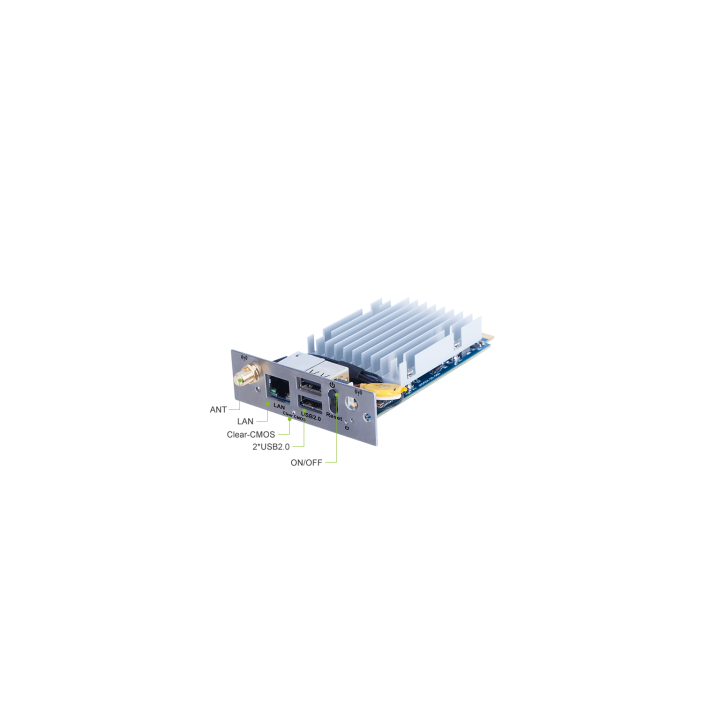

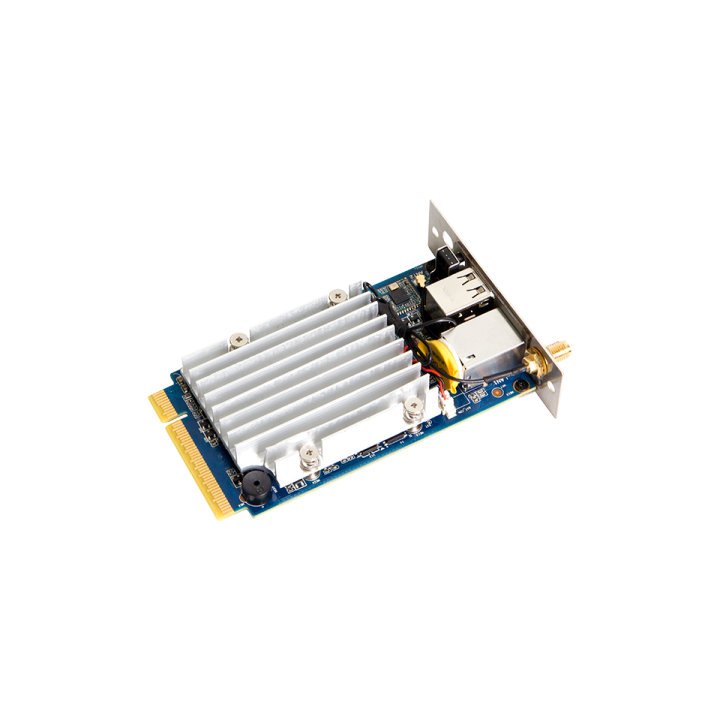

Giada SDM-S Intel® Atom X5-Z8350

Giada SDM-S Intel® Atom X5-Z8350

Supporting Multiple Operating Systems
The standard SDM-S form factor adopts Cherry Trail Atom® X5-Z8350, the ultra-low power-consumption (TDP 4W) processor. The module can support Windows, Linux and Android 5.1.

Supporting 4K Display
The module can be easily connected to an SDM-compliant display via a high-speed PCIe X8 edge connector, which supports max 4K resolution displays and 1080p video streaming.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

Intel® Atom x5-Z8350
2 GB Onboard DDR3L-1600MHz
32GB , Onboard eMMC
Intel® HD Graphics 400
1 x Realtek RTL8111H Gigabit Ethernet
Onboard Wi-Fi/BT module
2 x USB2.0
Windows 8 (64bit) /Windows 10 (64bit) /Linux Ubuntu (64bit) /Android 5.1
109.9mm x 60mm(4.33" x 2.36")
