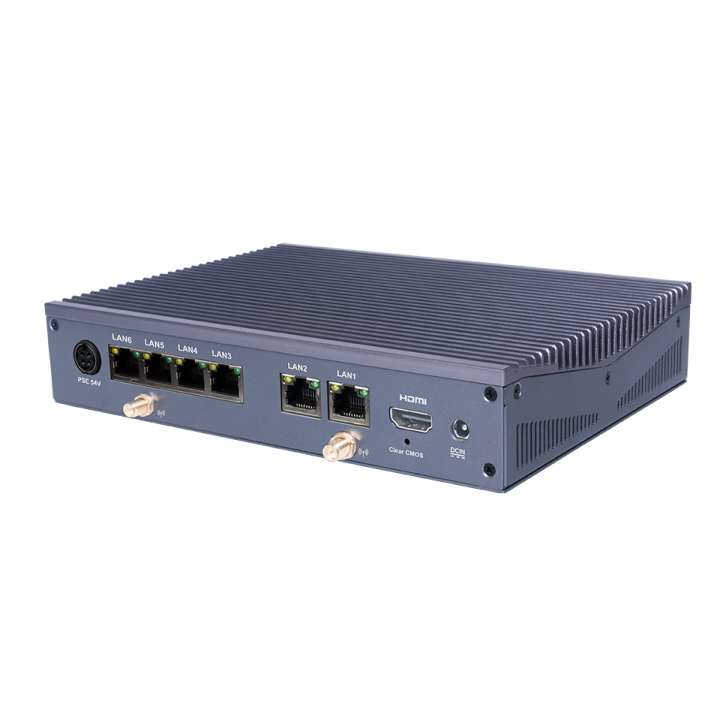

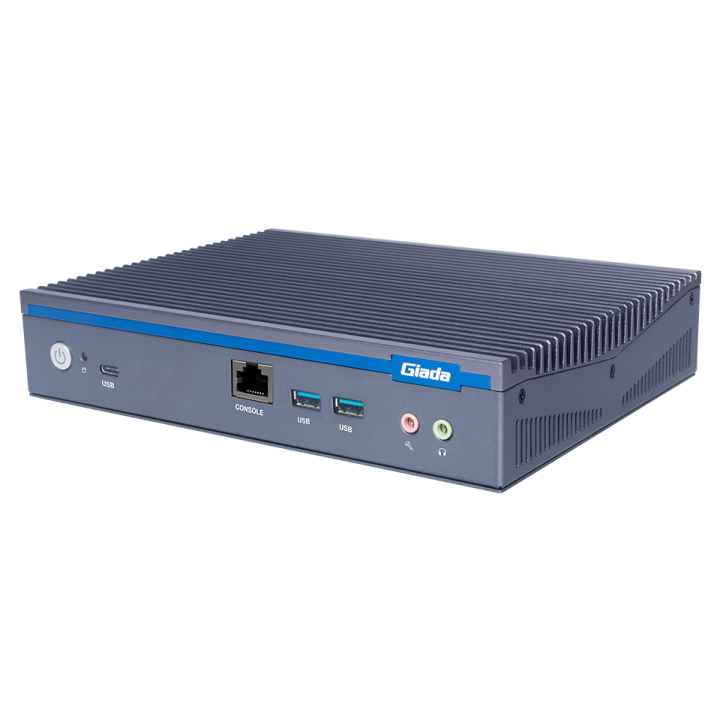

Giada RN28 NETWORK APPLIANCE

Giada RN28 NETWORK APPLIANCE

Intel® Alder Lake-N Processors
RN28 adopts the formidable Intel Alder Lake-N processors, manufactured using an Intel 7 process. The network appliance adopts Processor N100 with 4 Cores and 4 threads. Meanwhile, RN28 features TDP under 15W, which provides superior processing power while minimizing energy consumption.

6 x Intel i210AT Network Controller
Designed for faster, more flexible connections, the RN28 comes with two Gigabit RJ-45 supporting a BYPASS pair on Lan 1-2, four Gigabit RJ-45 supporting PoE, allowing fast and direct connections. The RN28 also provides wireless flexibility, supporting Wi-Fi 5/6/6E

PoE Support
RN28 is equipped with four RJ45 ports that support Power over Ethernet (PoE) technology. Each of these ports is capable of delivering up to 30W of power. This design combines data connectivity and power delivery, simplifying network setup while providing seamless power to PoE-compatible devices.

Fanless Design
Featuring fanless design, this network appliance is perfect to be used in noise-sensitive environments.

Intel® Processor N100
1 x SO-DIMM DDR4-3200 MHz Up to 16 GB
1 x M-Key M.2 (2280) for PCIe X2, for SSD
2 x GbE RJ45
4 x GbE RJ45 (30 W PoE/LAN)
DC-IN, 19 V/3.42 A
PSE, 54 V/2.22
200 mm x 150 mm x 40 mm
