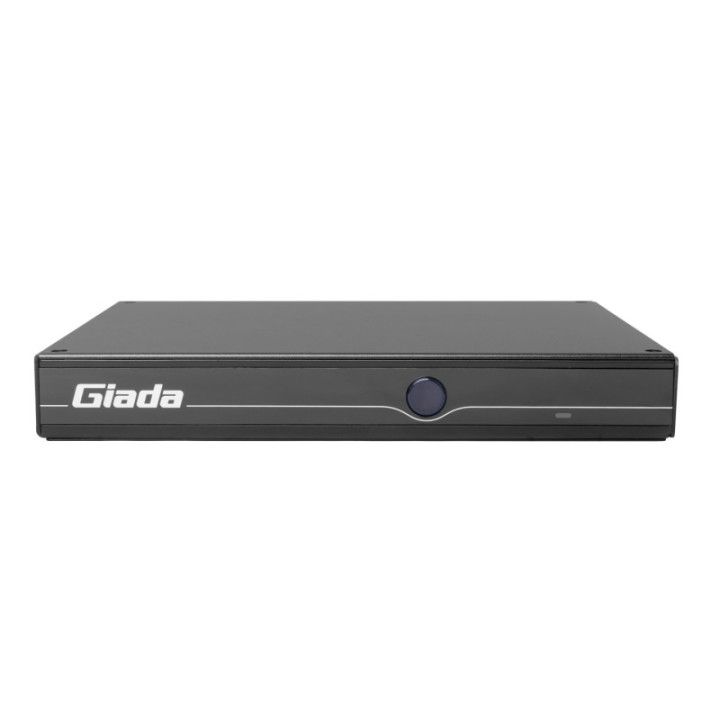

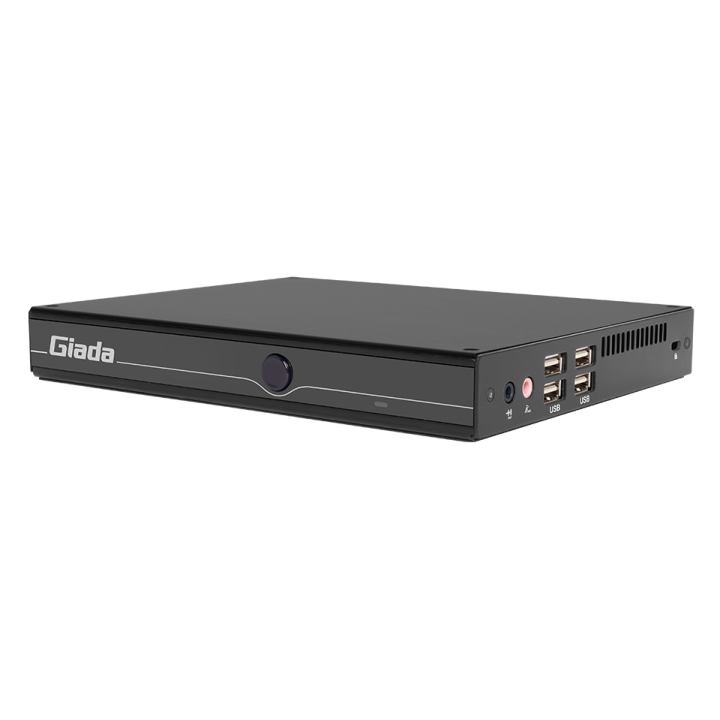

Giada F108D Intel® N100

Giada F108D Intel® N100

F108D
Booksize, Fanless Player Intel Alder Lake-N Inside Support 4K Display

Intel® Alder Lake-N Processors
Giada F108D adopts Intel® Alder Lake-N processors, featuring low-power range from 6-15W. The book-size embedded PC is especially designed for digital signage and kiosk applications.

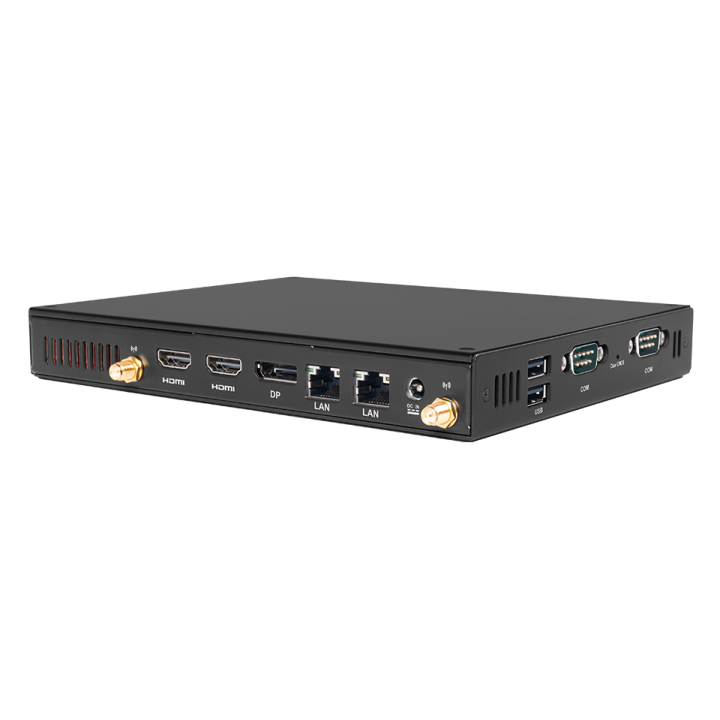

Rich I/O Ports

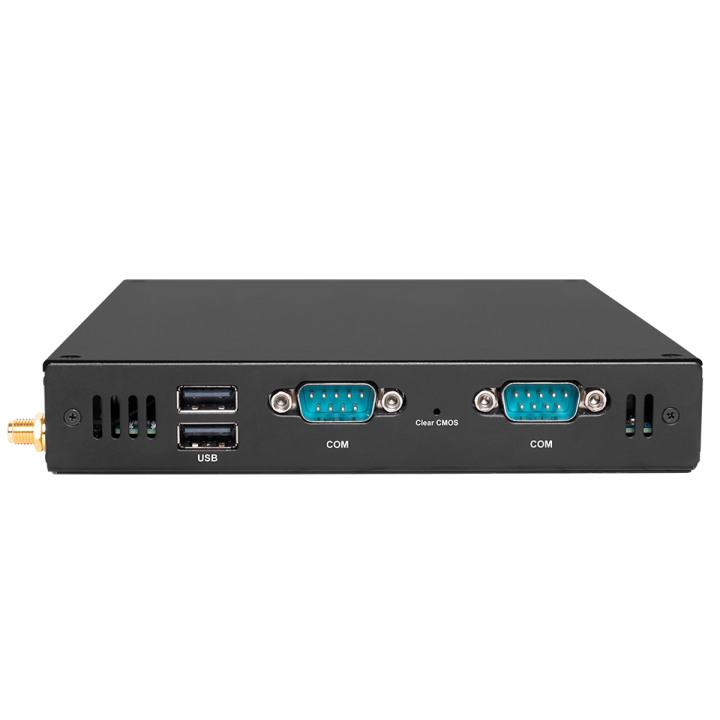

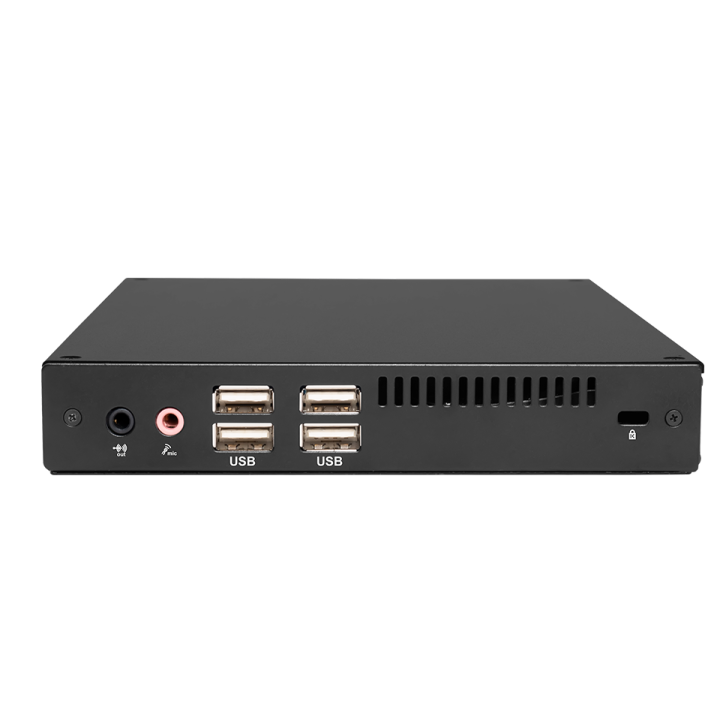

The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can be easily integrated in vending machine, self-service and check-in kiosks.

Supporting 3 Display Outputs
The digital signage player adopts Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada? device applicable in mission critical applications.

Intel® Processor N100
Intel® UHD Graphics
1 x SO-DIMM DDR4-3200 MHz
1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
1 x B-Key M.2 (3042) for 3G/4G
2 x RJ45
1 x E-Key M.2 (2230) for Wi-Fi/BT
2 x USB3.2 Gen2, 4 x USB2.0
2 x RS232
1xDP, 2xHDMI
190*149*26mm
