Giada SDM-L611 Intel Core i5-1135G7

Giada SDM-L611 Intel Core i5-1135G7

SDM-L611 Fit IIyama/Philips/NEC/Panasonic/Newline Display
Tiger Lake (Intel 11th Gen.) Support Max. 8K Display

Intel® Tiger Lake Processors
High Computing Peformance
The SDM-L is powered by Tiger Lake UP3, Intel® 11th generation mobile processors built on 10nm process technology. The platform combines a high-performance CPU, up to 23% faster single thread performance, and up to 19% faster multi-thread performance. It supports vPro function as an option.

Supporting 8K Display

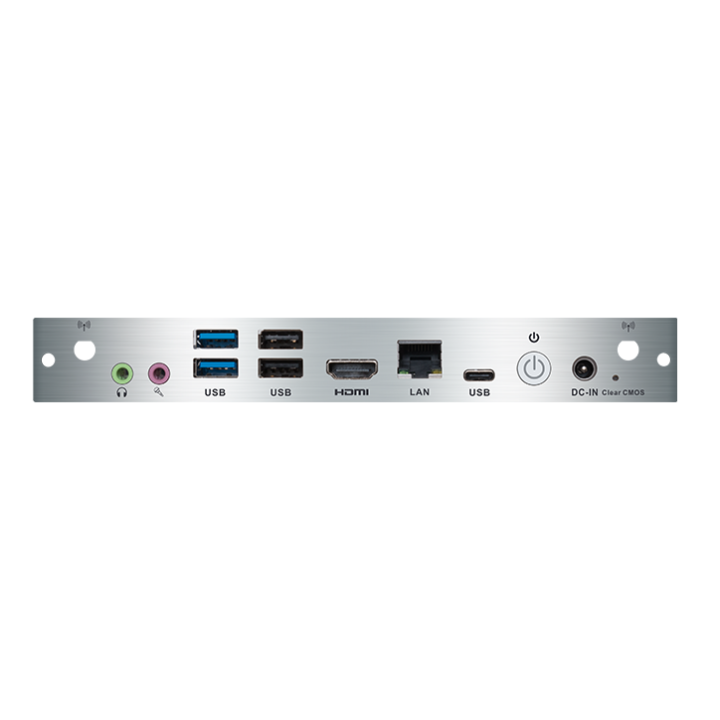

The module supports Intel® integrated Iris® Xe GPU (Core i5/i7), which has 50% graphic performance improvement compared with last generation. It supports max 8K resolution via the SDM PCIE X8 connector. There is another HDMI2.0 port (Max. 4096 x 2304@60 Hz) on the rear side, which can support a second display.

Intel® vPro Technology
Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

Compatible with Leading
Display Brands
SDM-L611 passed the compatible tests with displays from NEC®, Panasonic®, Newline® etc.

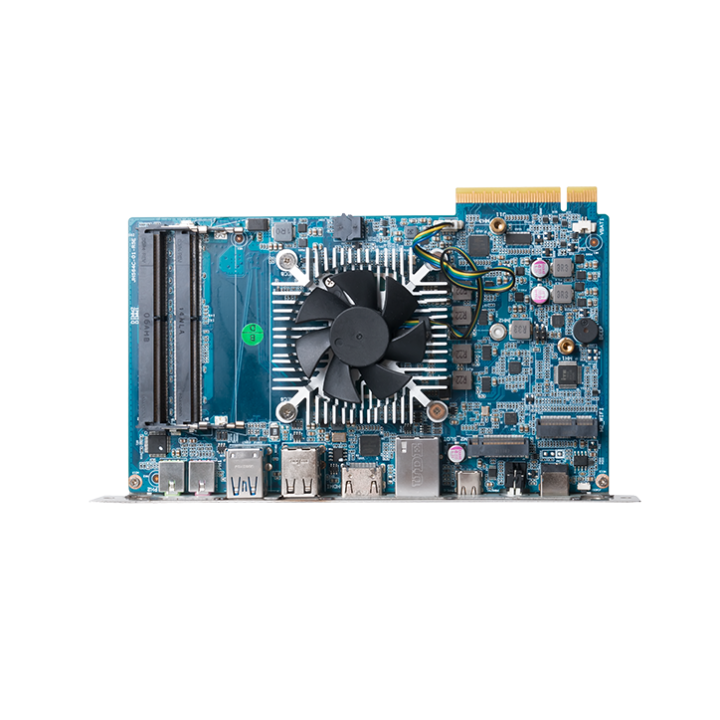

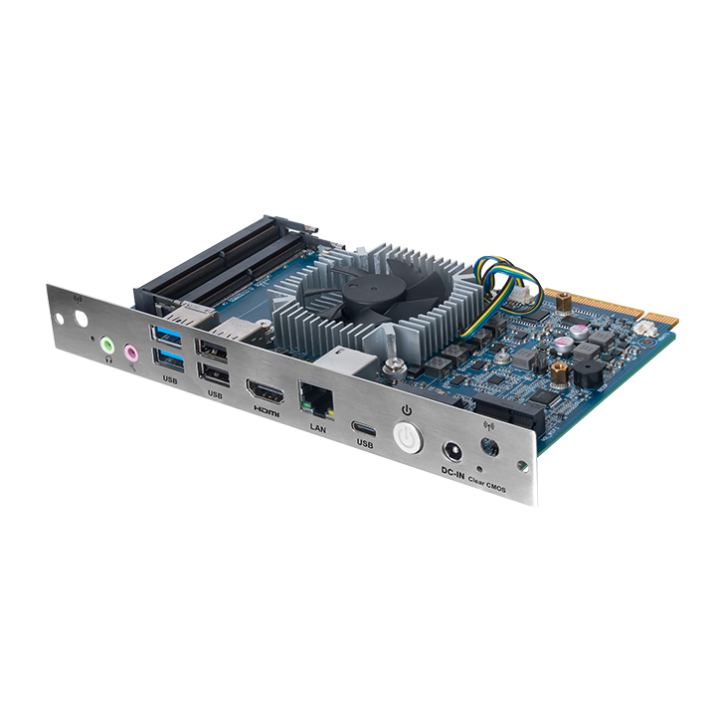

SDM-L611
Tiger Lake UP3 SDM-L
PCIe X8 edge connector, Supporting 8K Display
2 x SO-DIMM DDR4 Memory, Up to 32GB
1 x M-key M.2 (2242 / 2280) for NVMe
1 x E-key M.2 (2230) for Wi-Fi / BT
