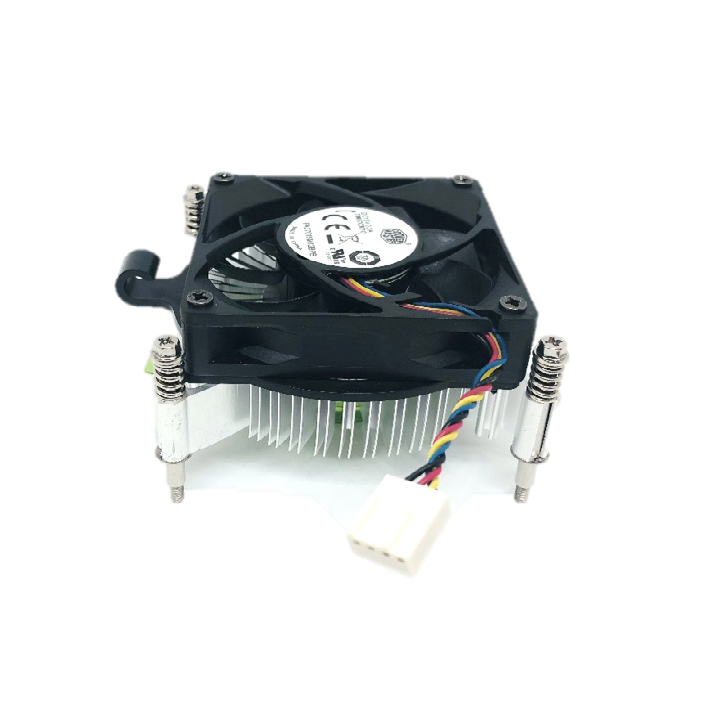

Active Cooler Intel LGA1151 (max. 35W)

Active Cooler Intel LGA1151 (max. 35W)

SLIM HEATSINK FOR INTEL®
F5000-C011
Motherboard Accessories
Active Heatsink for LGA1151 mainboards up to 35 W TDP
Designed for silent but effective cooling
Full aluminum incl. mounting backplate
Spring-loaded mounting screws for specified downforce
Weight: ~ 150 g

DIMENSIONS 75 x 75 x 31 mm
OPERATING VOLTAGE 12 V; PWM
FAN SPECIFICATION max. 0.3 A / 3.66 W @ 100 % PWM
4.600 rpm +/- 10 % @ 100 % PWM
500 rpm +/- 300 rpm @ 0-20 % PWM
Axial fan; two ball bearing
Fan cable length = 80 mm
NOISE LEVEL max. 43 dB(A)
MTBF 50.000 hrs @ 50 °C
RECOMMENDED MOUNTING
SCREW TORQUE
0.6 Nm
