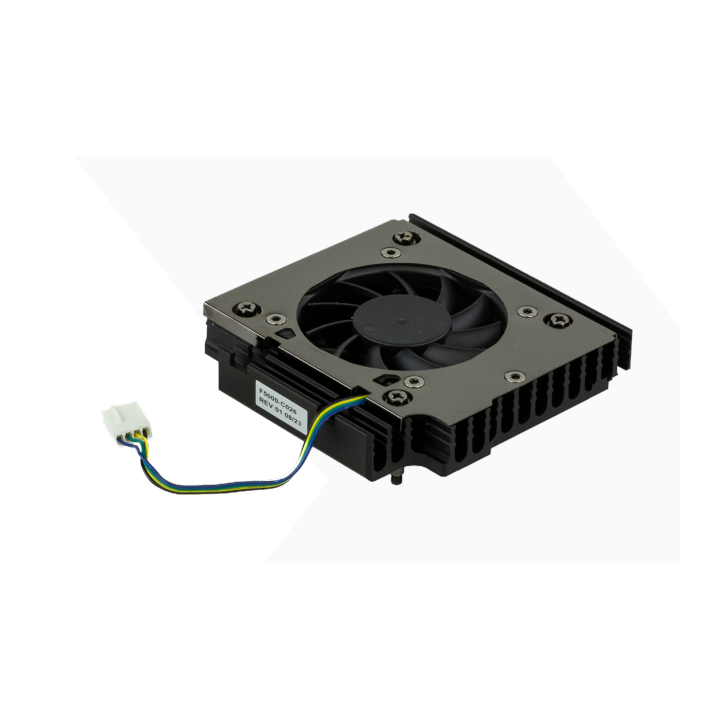

Slim Active Heatsink incl. Backplate mSTX/mITX

Slim Active Heatsink incl. Backplate mSTX/mITX

Active Mini-ITX/STX Heatsink
F5000-C026 | Motherboard Accessories

Active Heatsink Kit for K392x- Mini-STX motherboard
series and K393x- Mini-ITX motherboard series
Designed for the Intel® Processor and Core™ i3 Alderlake-N series up to 15W TDP
Aluminium with fan
Max. 15 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~200 g (cooler) + 21 g (backplate)

FAN DIMENSIONS 60 x 60 x 10 mm
OPERATING VOLTAGE 12 V; PWM
FAN SPECIFICATION max. 0.2 A/2.4 W @ 100 % PWM
4.200 rpm +/- 10 % @ 100 % PWM
Max. 33 dB(A) @ 100 % PWM
Two ball bearing, fan cable = 120 mm
MTBF 60.000 hrs @ 35 °C
OPERATING TEMPERATURE -10 °C...70 °C
RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
MOUNTING BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MOTHERBOARDS K3921-N, K3921-H, K3931-N, K3932-N
