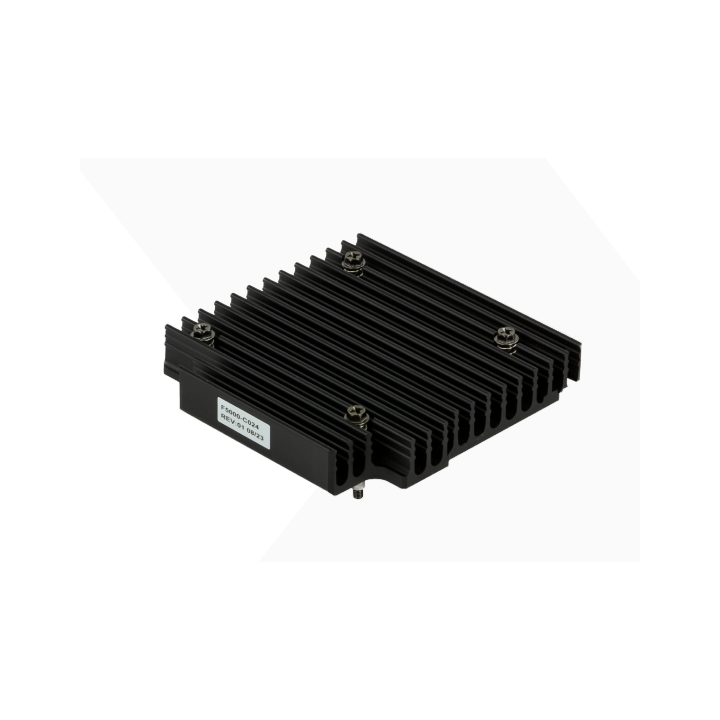

Slim Passive Coole + Backplate mSTX ADL-N 10

Slim Passive Coole + Backplate mSTX ADL-N 10

Passive Mini-STX Heatsink
F5000-C024 | Motherboard Accessories

Fanless Heatsink Kit for Mini-STX Motherboard K392x
Designed for the Intel® Processor and Core™ i3 Alderlake-N series up to 10W TDP
Full aluminium
Max. 10 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~180 g (cooler) + 21 g (backplate)

RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MAINBOARDS K3921-N, K3921-H
