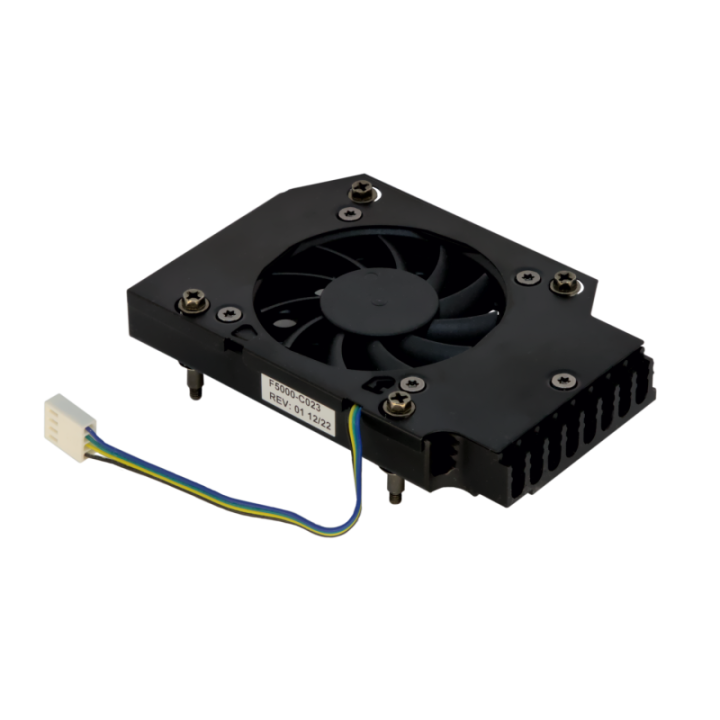

Active Cooler mSTX D3714/D3724 TDP 25W

Active Cooler mSTX D3714/D3724 TDP 25W

ACTIVE HEATSINK
F5000-C023
Motherboard Accessories

Active Heatsink Kit for Mini-STX Motherboards
D3714-Rx, D3714-V2 and D3724-R
Designed for the AMD Ryzen™ Embedded V1000/R1000/R2000 processor series
Aluminium with fan
Max. 25 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~176 g (cooler) + 21 g (backplate)

FAN DIMENSIONS 60 x 60 x 10 mm
OPERATING VOLTAGE 12 V; PWM
POWER CONSUMPTION max. 0.2 A/2.4 W @ 100 % PWM
4.200 rpm +/- 10 % @ 100 % PWM
Max. 33 dB(A) @ 100 % PWM
Two ball bearing, fan cable = 120 mm
MTBF 60.000 hrs @ 35 °C
OPERATING TEMPERATURE -10 °C...70 °C
RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
MOUNTING BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MOTHERBOARDS D3714-Rx, D3714-V2, D3724-Rx
