XPC PSU Externo 180w

XPC PSU Externo 180w

PE180

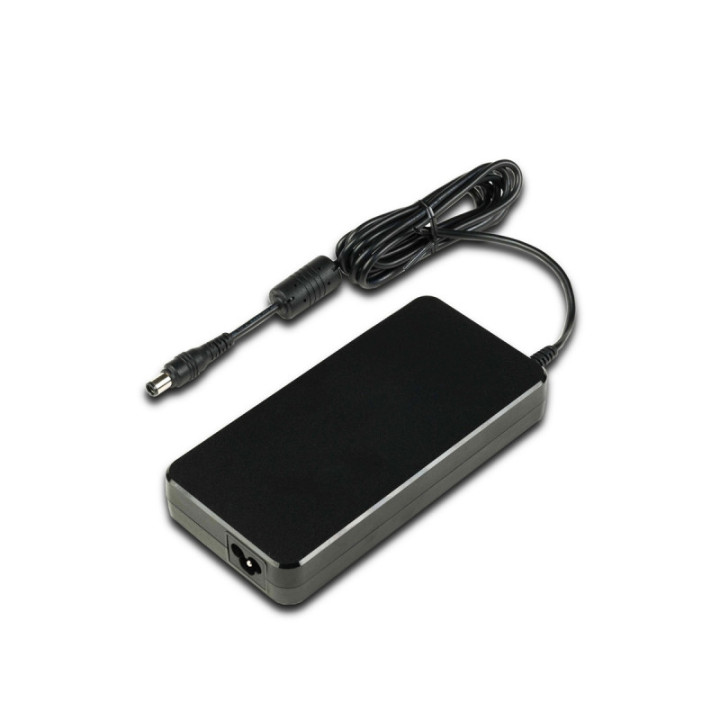

180W power adapter
The Shuttle Accessory PE180 is an external 180W power adapter for the Shuttle XPC slim Barebone XH510G2 in connection with the Shuttle XPC Accessory PRC01.

Compatible to the following Shuttle products:
Shuttle XPC slim Barebone XH510G2
Input: 100~240 VAC (auto-adjust), 50~60 Hz, max. 2.5 A·
Output: 19.5V DC, max. 9.23 A, max. 180 W·
Cooling: passive, fanless
Dimensions: 167.5 mm * 82 mm * 25.4 mm (LWH)
DC connector: 5.5/2.5mm (outer/inner diameter)
AC connenctor: angled Schuko safety plug (with earthing contact
Operation temperature range: 5~35 °C (41~95 °F)
Relative humidity range: 10~90% (non-condensing)
Weight: 845 g
Compliance and Logos: CE, WEEE and others

Package contents:

Power adapter (180W) with DC cable and DC output plug
AC power cord with angled Schuko-style safety plug
Quick guide
