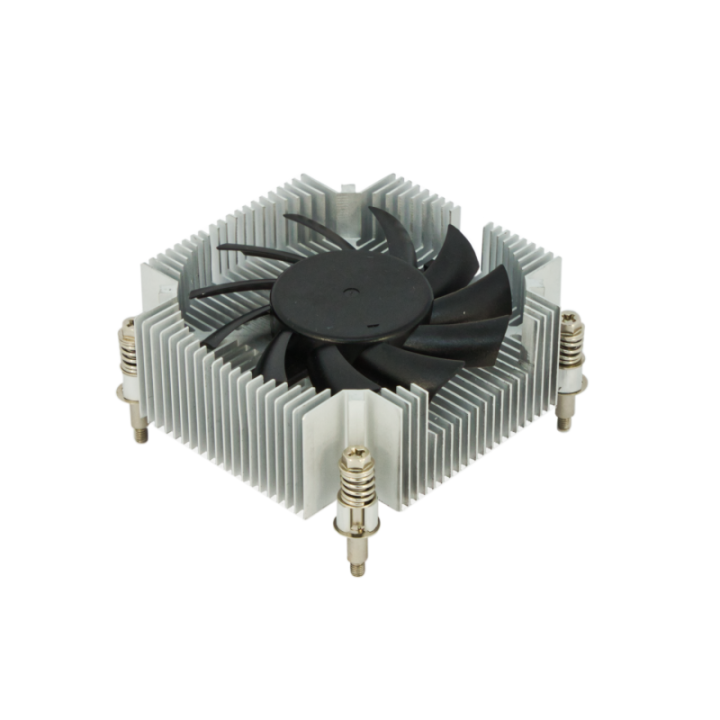

Active Cooler D3713/D3723 TDP 35W

Active Cooler D3713/D3723 TDP 35W

Active SLIM Heatsink
F5000-C021 | Motherboard Accessories
SLIM Active Heatsink Kit for Mini-ITX Motherboards
D3713/D3723 and Mini-STX Motherboards D3714/D3724
Designed for the AMD Ryzen™ Embedded R1000/V1000/R2000 processor series
up to 35 W TDP
Aluminium with fan
Max. 35 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~170 g (cooler) + 21 g (backplate)

FAN DIMENSIONS 70 x 70 x 10 mm
OPERATING VOLTAGE 12 V; PWM
POWER CONSUMPTION max. 0.4 A/4.8 W @ 100 % PWM
3.500 rpm +/- 10 % @ 100 % PWM
Max. 31 dB(A) @ 100 % PWM
Two ball bearing, fan cable = 85 mm
MTBF 70.000 hrs @ 40 °C
OPERATING TEMPERATURE -10 °C ... +65 °C
RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
MOUNTING BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MOTHERBOARDS D3713-V/-R, D3714-V/-R, D3723-R, D3724-R
