Active Cooler D3713

Active Cooler D3713

ACTIVE MINI-ITX HEATSINK
F5000-C020
Motherboard Accessories

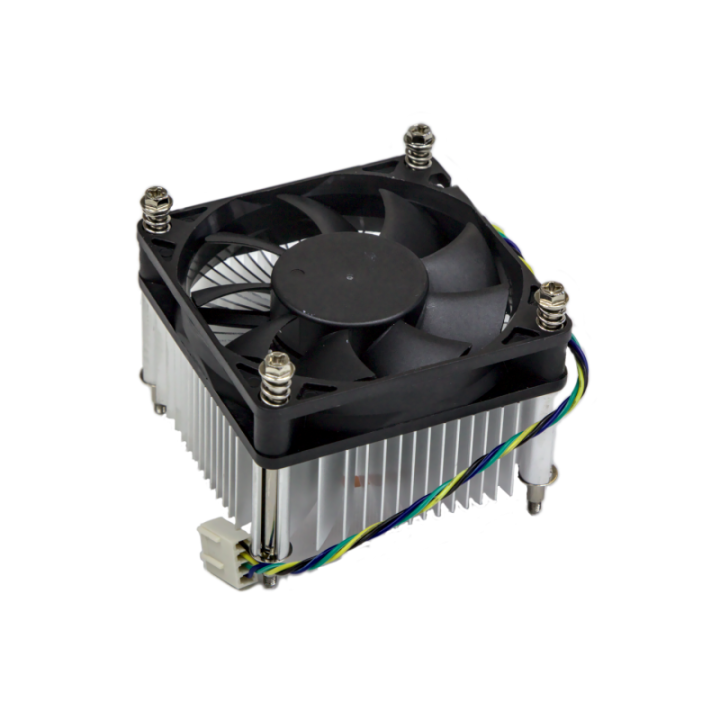

Active Heatsink Kit for Mini-ITX Motherboard D3713
Designed for the AMD Ryzen™ Embedded R1000/V1000 processor series up to 54 W TDP
Copper/aluminium with fan
Max. 54 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~270 g (cooler) + 21 g (backplate)

FAN DIMENSIONS 70 x 70 x 15 mm
OPERATING VOLTAGE 12 V; PWM
POWER CONSUMPTION max. 0.4 A/4.8 W @ 100 % PWM
5.100 rpm +/- 10 % @ 100 % PWM
600 rpm +/- 400 rpm @ 0-20 % PWM
Max. 42 dB(A) @ 100 % PWM
Two ball bearing, fan cable = 75 mm +/- 10 mm
MTBF 50.000 hrs @ 40 °C
OPERATING TEMPERATURE -10 °C...70 °C
RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
MOUNTING BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MAINBOARDS D3713-R/-V
