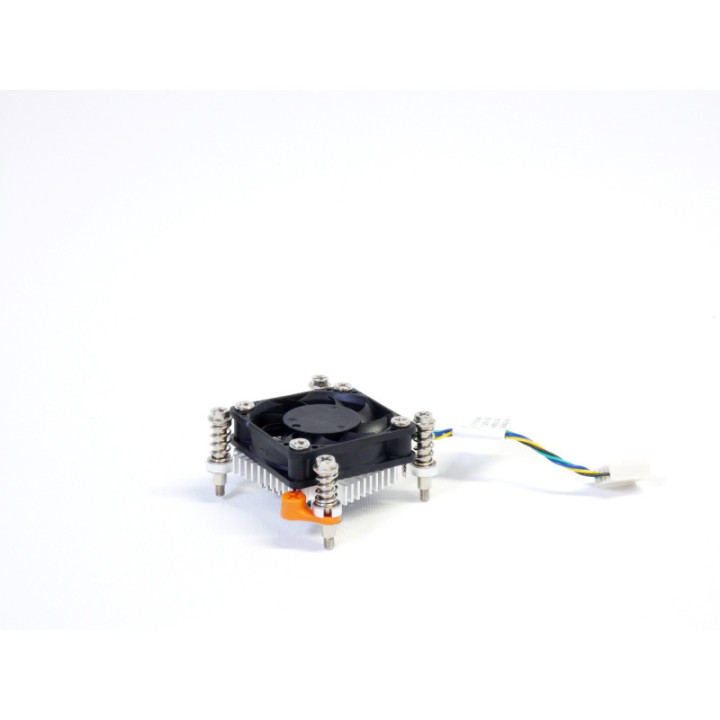

Active Cooler Intel SoC

Active Cooler Intel SoC

Active Heatsink Kit for Mini-ITX/Mini-STX Motherboards
Designed for Intel® embedded Gemini Lake SoC (System on Chip) up to 10 W TDP
Full aluminium with fan
Max. 10 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~ 50 g

FAN DIMENSIONS 40 x 40 x 10.5 mm
OPERATING VOLTAGE 12 V; PWM
POWER CONSUMPTION max. 0.15 A/1.8 W @ 100 % PWM
5.000 rpm +/- 10 % @ 100 % PWM
600 rpm +/- 400 rpm @ 0-30 % PWM
Max. 26 dB(A) @ 100 % PWM
Two ball bearing
MTBF 50.000 hrs @ 40 °C
RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
MOUNTING BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
SUPPORTED MAINBOARDS D3543-Sx, D3544-Sx
