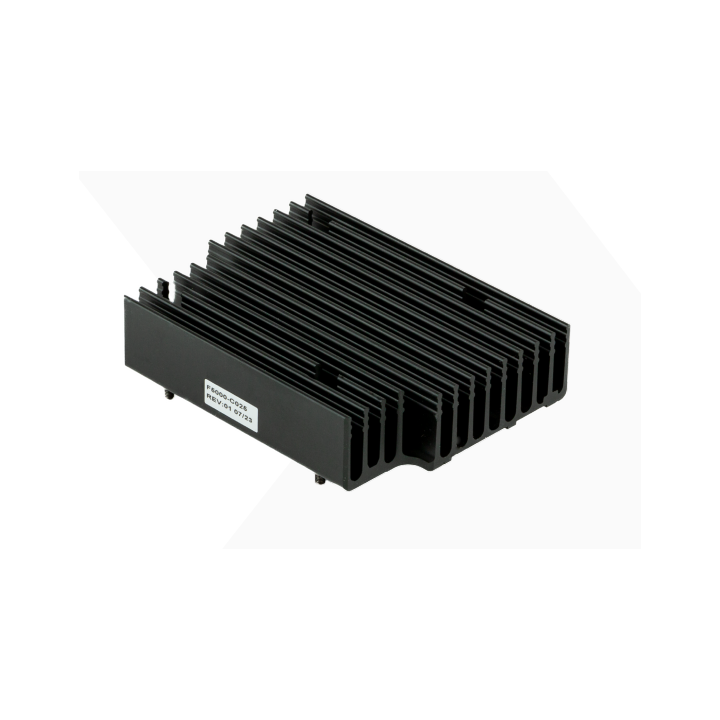

Passive Cooler mITX ADL-N 15 W

Passive Cooler mITX ADL-N 15 W

Passive Mini-ITX Heatsink
F5000-C025 | Motherboard Accessories
Fanless Heatsink Kit for Mini-ITX Motherboard K393x
Designed for the Intel® Processor and Core™ i3 Alderlake-N series up to 15W TDP
Full aluminium
Max. 15 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~233 g (cooler) + 21 g (backplate)

RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MAINBOARDS K3931-N, K3932-N
