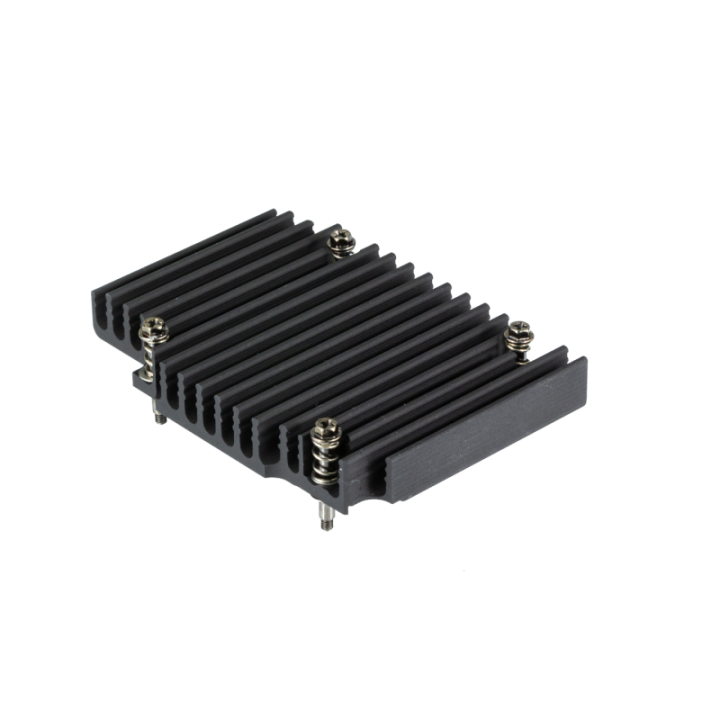

Passive Cooler D3714

Passive Cooler D3714

PASSIVE HEATSINK
F5000-C022
Motherboard Accessories
Fanless Heatsink Kit for Mini-STX Motherboard D3714-R
Designed for the AMD Ryzen™ Embedded R1000 processor series
Full aluminium
Max. 10 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~ 200g (cooler) + 21 g (backplate)

RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MOTHERBOARDS D3714-R
