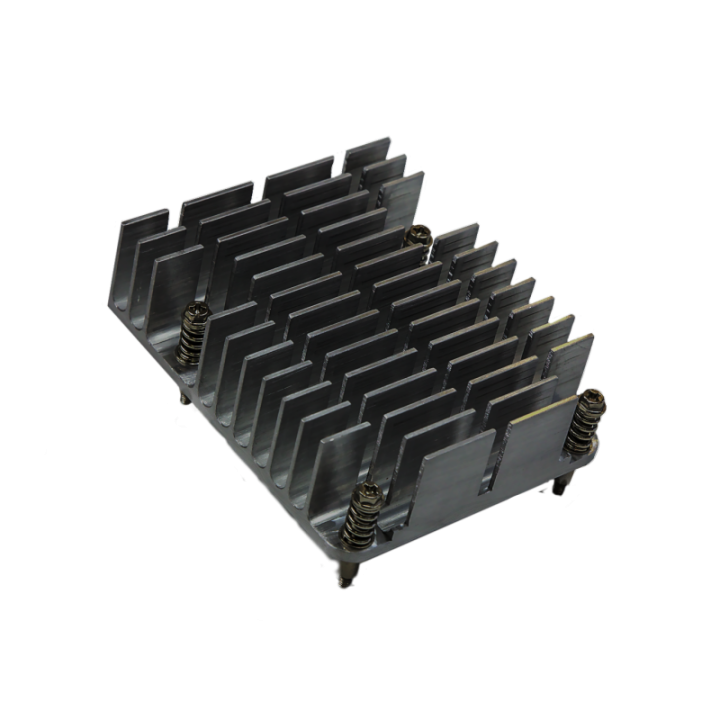

Passive Cooler D3713
PASSIVE MINI-ITX HEATSINK
F5000-C019
Motherboard Accessories
Fanless Heatsink Kit for Mini-ITX Motherboard D3713
Designed for the AMD Ryzen™ Embedded R1000/V1000 processor series up to 15 W TDP
Full aluminium
Max. 15 W TDP
Spring-loaded mounting screws for specified downforce
Weight: ~165 g (cooler) + 21 g (backplate)
RECOMMENDED MOUNTING
SCREW TORQUE
max. 0.8 Nm
BACKPLATE Metal backplate, provides 4 mounting threads for heatsink
BACKPLATE MOUNTING HOLES M3; hole spacing = 61.5 mm x 61.5 mm
SUPPORTED MAINBOARDS D3713-R/-V
