Giada DN74

Giada DN74

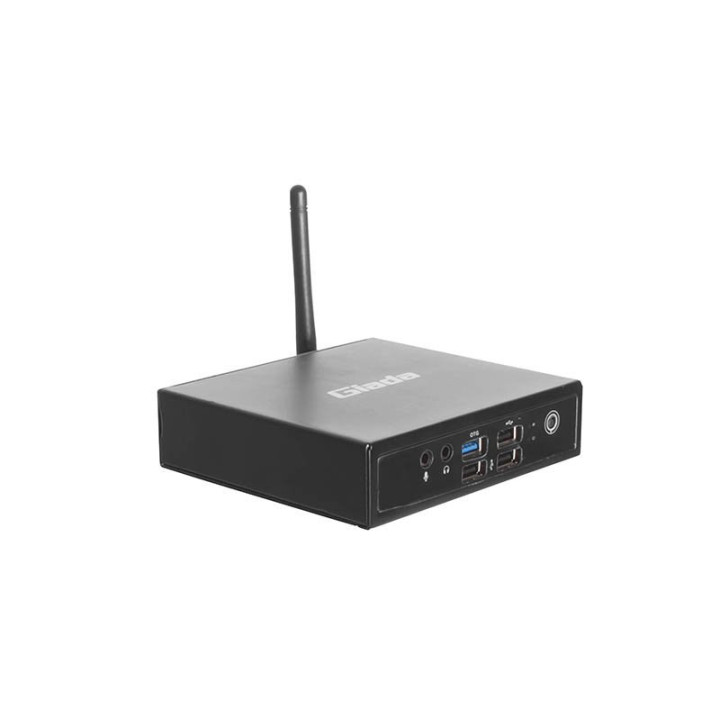

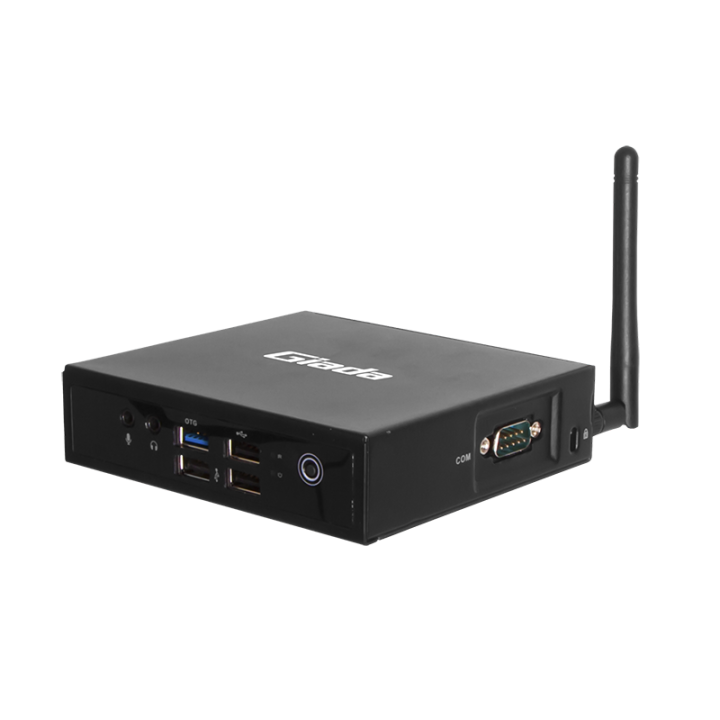

DN74 (Android) Android 11 Player
RK3399 Inside Support 4K Display

RK3399 High-performance Processors
The ultra-compact Android player adopts Dual-core Cortex-A72 and Quad-core Cortex-A53 processors. It supports onboard dual-channel LPDDR4 memory, eMMC5.1 storage and dual-band WiFi, Bluetooth 4.2.

Dual Display Outputs
Supporting 4K Video Playback
The player adopts Rockchip integrated Mali-T860 GPU. It supports two video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440@30 Hz). As for video decoding capability, it supports one 4K ( 3840 x 2160 @ 60Hz) or two 1080p (1920x1080@60Hz) video decoding.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

RK3399 Dual-core ARM Cortex-A72 and Quad - core ARM
Cortex-A53
Onboard 4GB LPDDR4 Memory

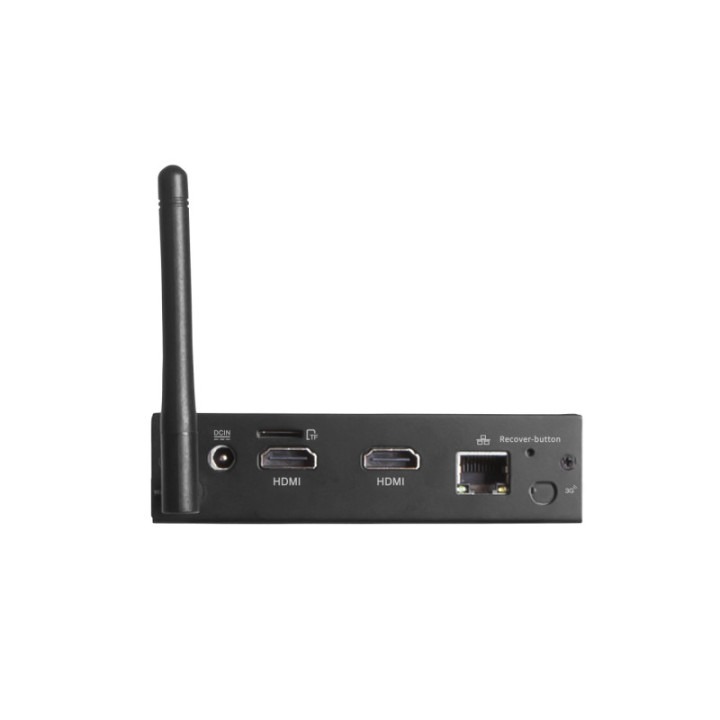

1 x HDMI,Supporting 4K Display
1 x HDMI, Supporting 2K Display
eMMC Onboard 32GB

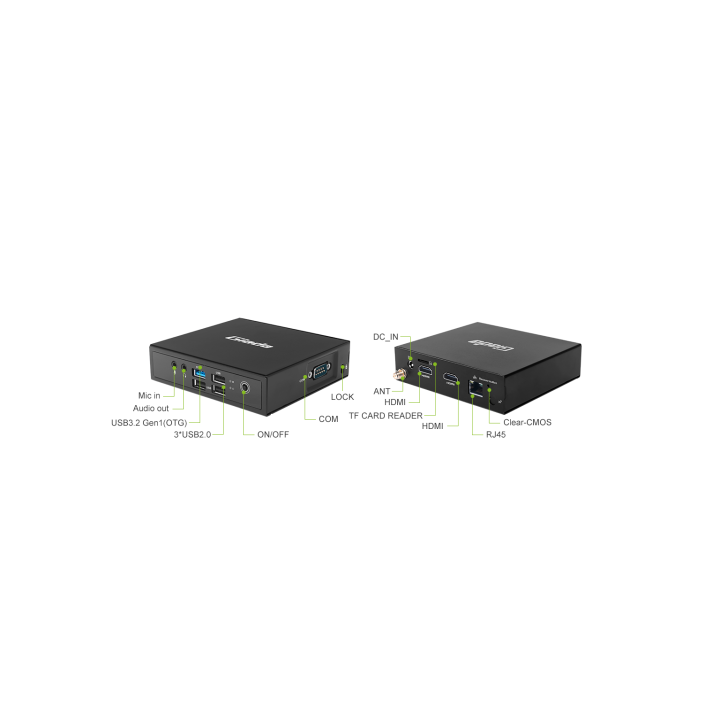

1x USB3.0 (OTG), 3 x USB2.0, 1 x RS232
1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM Slot
