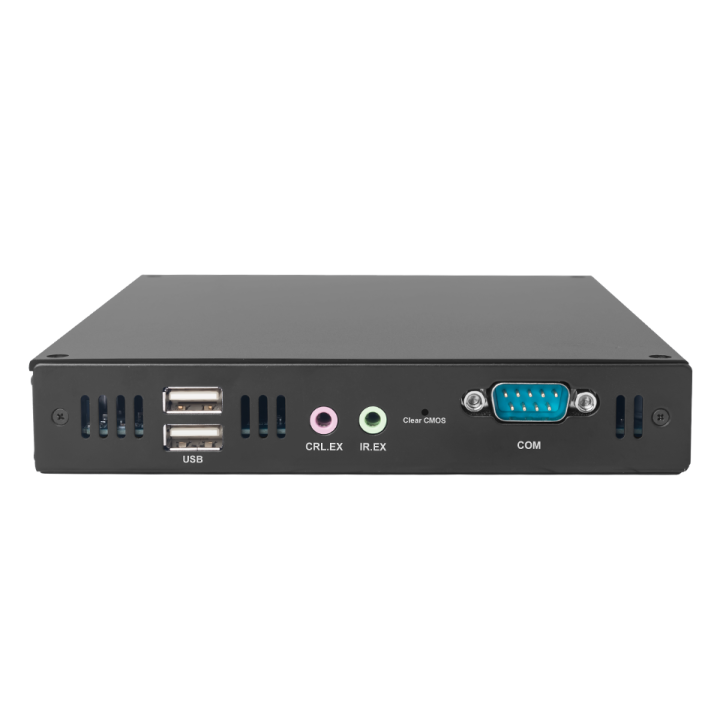

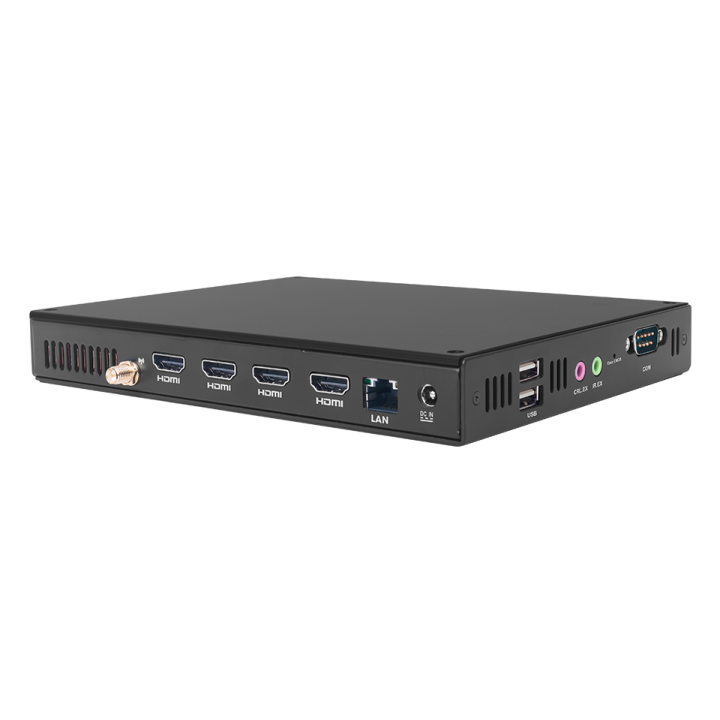

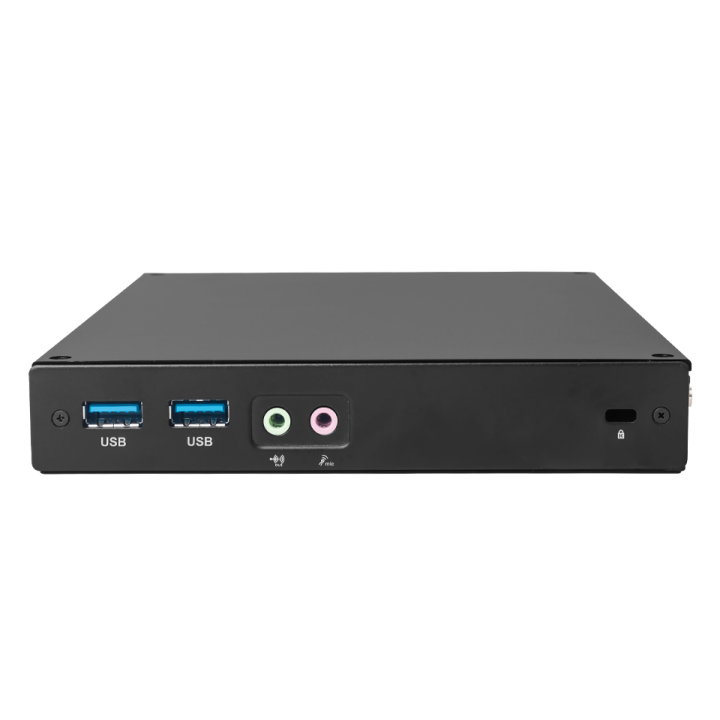

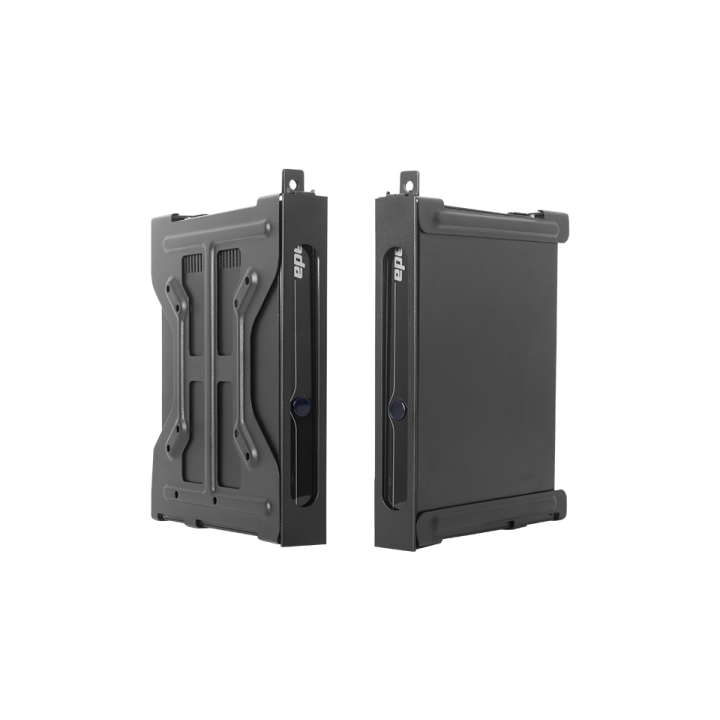

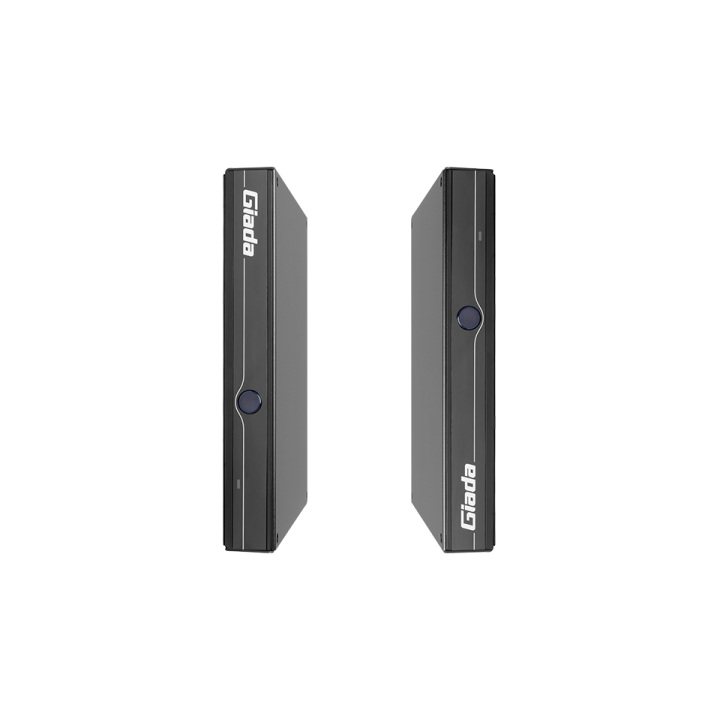

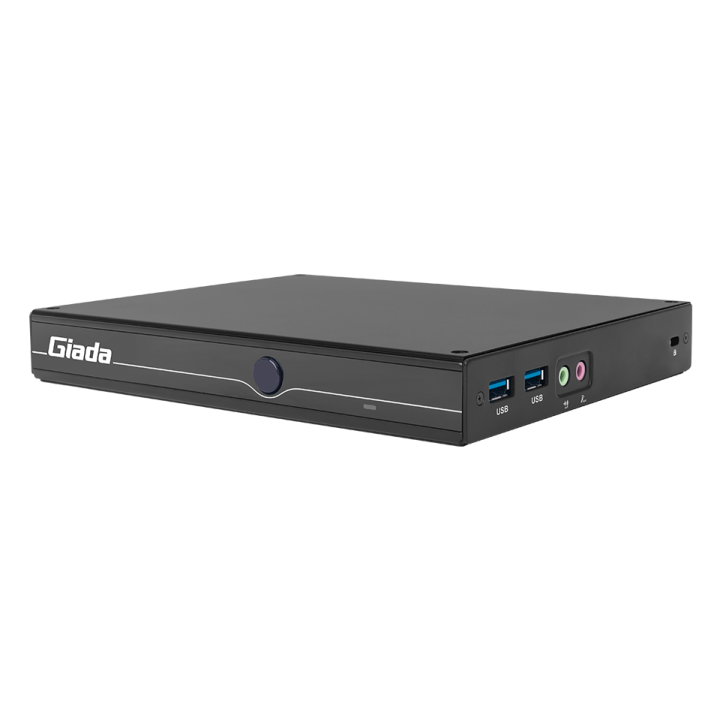

Giada DM6 AMD Ryzen V1605B

Giada DM6 AMD Ryzen V1605B

AMD® Ryzen™ V1000 Processors
Long Life Cycle Product
The booksize player adopts high-performance Ryzen™ Embedded V1202B/V1605B processors. It supports dual-channel DDR4 memory and it's flexible to extend the hard drive through MSATA and 2.5" SATA slots.

Four Display Outputs
Supporting 4K Video Playback
The player supports AMD Radeon™ Vega 3 Graphics (V1202B) or Vega 8 Graphics (V1605B). It has four HDMI 2.0a outputs, supporting Max. 3840 x 2160@60Hz resolution. As for video decoding capability, it supports up to one 4K (3840 x 2160@60Hz) or four 1080p (1920x1080@60Hz) video decoding. With AMD driver, users can easily group monitor configurations, including 1 x 4 and 2 x 2.

AMD® Ryzen V1605B
2 x SO-DIMM DDR4-2400 MHz Up to 32 GB
AMD® Radeon™ Vega 8 Graphics (V1605B)
4 x HDMI (Max.3840 x 2160 @60 Hz)
1 x Realtek RTL 8111H Gigabit Ethernet
1 x Full-size Mini-PCIe for Wi-Fi/BT
3G/4G colay with 1 x Mini-PCIe for MSATA
1 x SIM Slot
2 x USB3.2 Gen1, 2 x USB2.0
1 x RS232
189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”)
