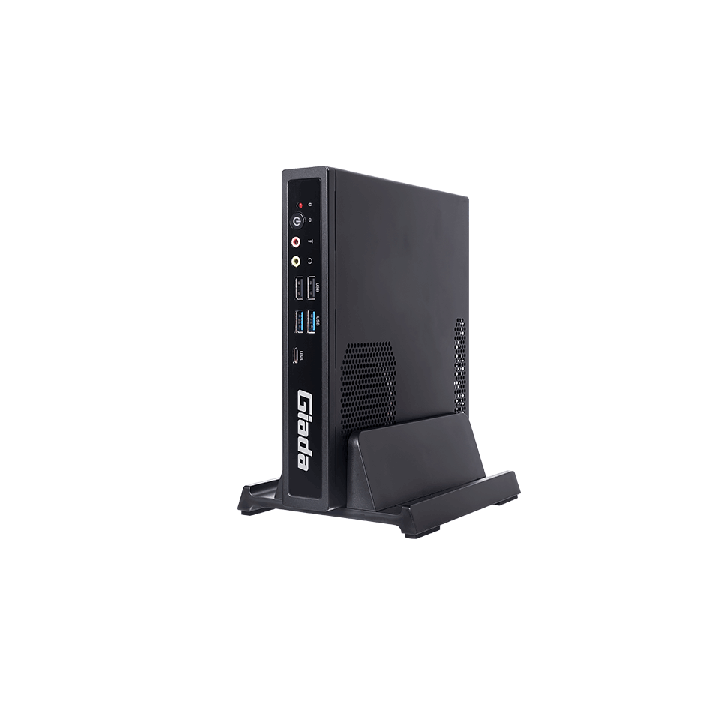

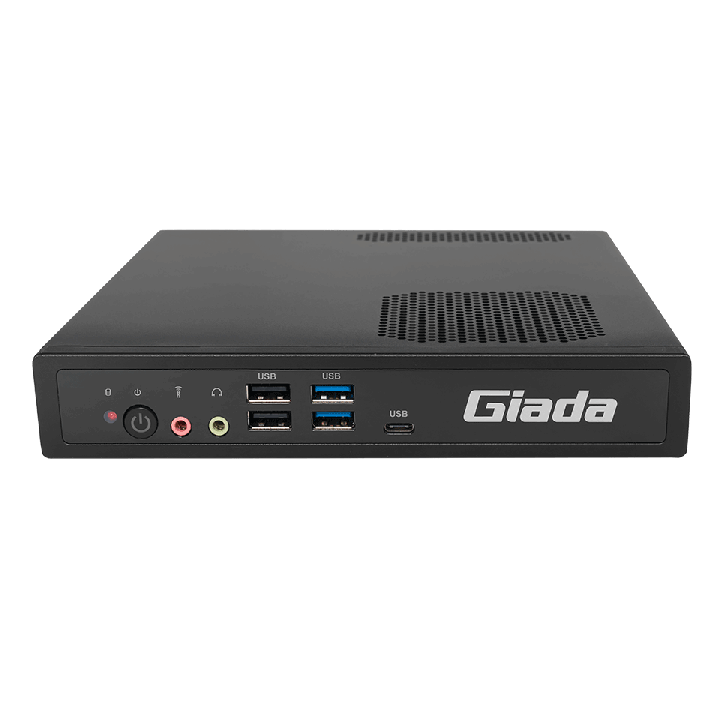

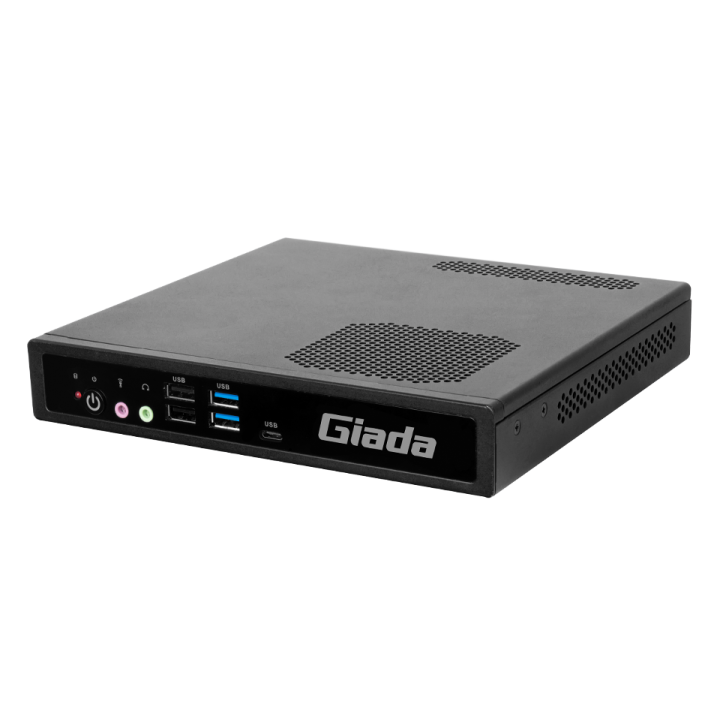

Giada BQ612

Giada BQ612

BQ612
9 x USB Desktop PC
Intel 12th/13th Gen. CPU
Dual Lan

Intel® Alder Lake-S Processors
High Computing Performance
It adopts optional H610/B660 chipsets and supports Socket 12th/13th generation processors (TDP≤65W), ranging from Celeron®, Pentium® to Core™ i3/i5/i7.

Dual Display Outputs
Supporting 8K Video Playback
With Intel® UHD Graphics 770 or 750 or 730, the PC supports three display outputs. The two display outputs are an HDMI 2.0a (4096x2304@60Hz), optional a DisplayPort 1.4 (7680x4320 @60Hz), or a VGA port (2048 x 1536@60Hz). It can support max. 8K video display.

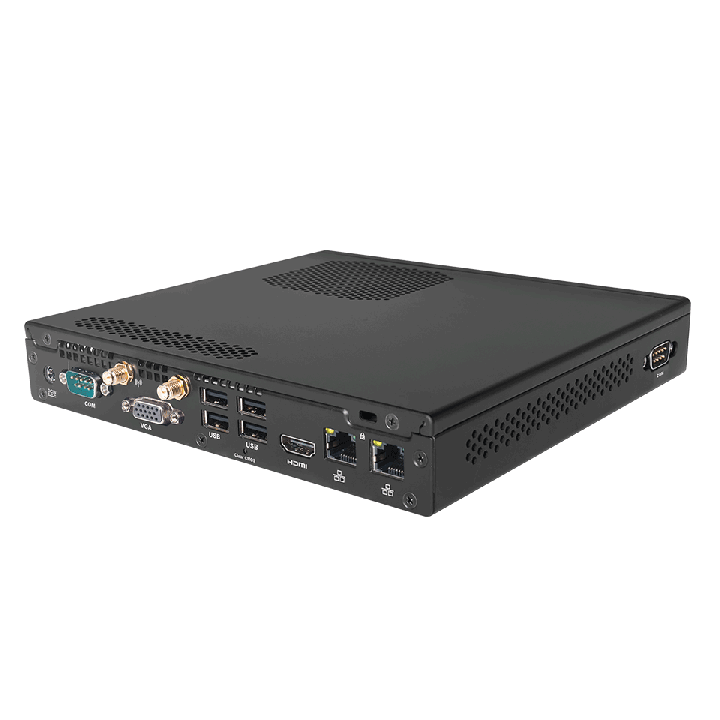

Rich I/O Ports
Supporting Intrusion Detection
The PC measures only 1.24L, yet supports rich I/O ports, including 8 x USB Type-A and dual LAN ports. With a micro switch, it can detect removal of the computer cover. Once the chassis was opened, the BIOS will record (won't alarm) and warn you next time when the system starts up.

Intel® LGA1700 Socket 12th/13th Gen. processors(CPU 65 W)
Chipset H610
Intel® HD graphic
2*SO-DIMM DDR4 3200MHz,64GB Max
1 * 2.5" SATA III
1 x M-Key M.2 (2242/2280) for PCIe SSD
1 x B-Key M.2 (3042) for 3G/4G
2*Gigabit
1 x E-Key M.2 (2230) for Wi-Fi/BT
1 x USB Type-C3.2 Gen1,2 x USB3.2 Gen1, 6 x USB2.0
2xRS232
1xDP(colay with VGA))? 1xHDMI
200 mm x 185 mm x 35.5 mm
