VGA port expansion kit for DSxx

VGA port expansion kit for DSxx

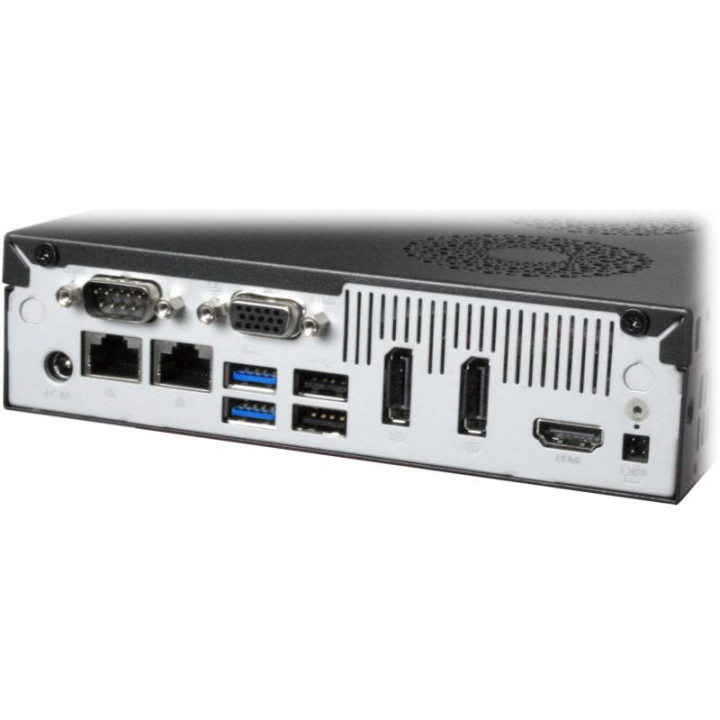

The PVG01 adapter equips the Shuttle Slim PC Barebone DS81 with an analog VGA output. This also means only one serial interface (COM 1) can be used afterwards.
Note: The H81 chipset used by DS81 supports up to two displays at the same time so that only two out of the four video outputs can be used.

Scope of delivery:
- Adapter PVG01
- Installation guide
Specifications:

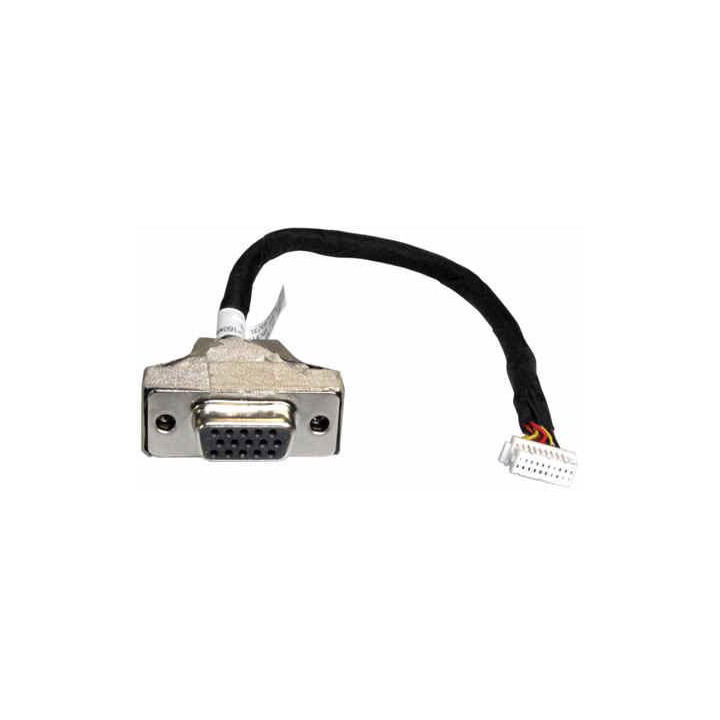

Internal adapter cable, Cable length: 160 mm
Back panel connector: 15-pin Mini D-Sub female socket (DE15)
Internal connector: Subminiature 2x10-pin, 1 mm pitch size, female
Compatibility:
Compatible to Shuttle Slim PC DS81
