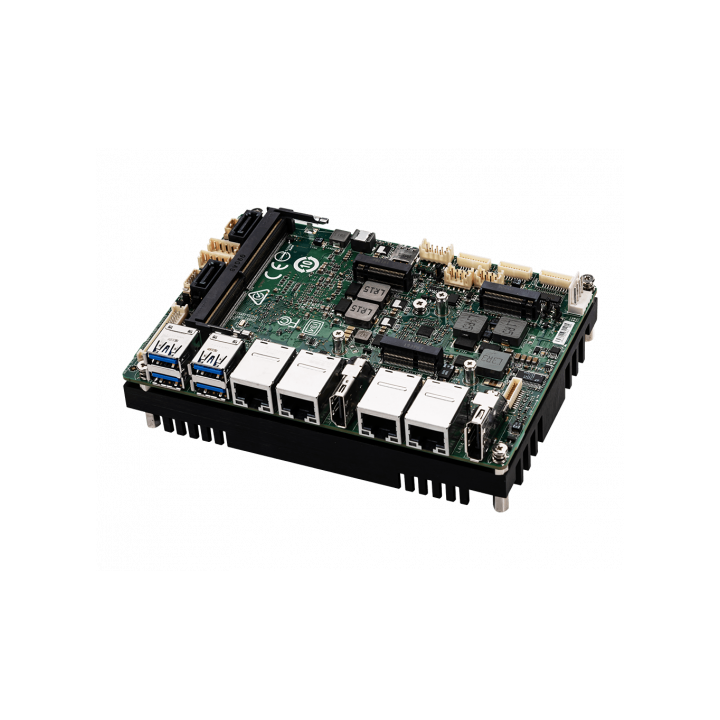

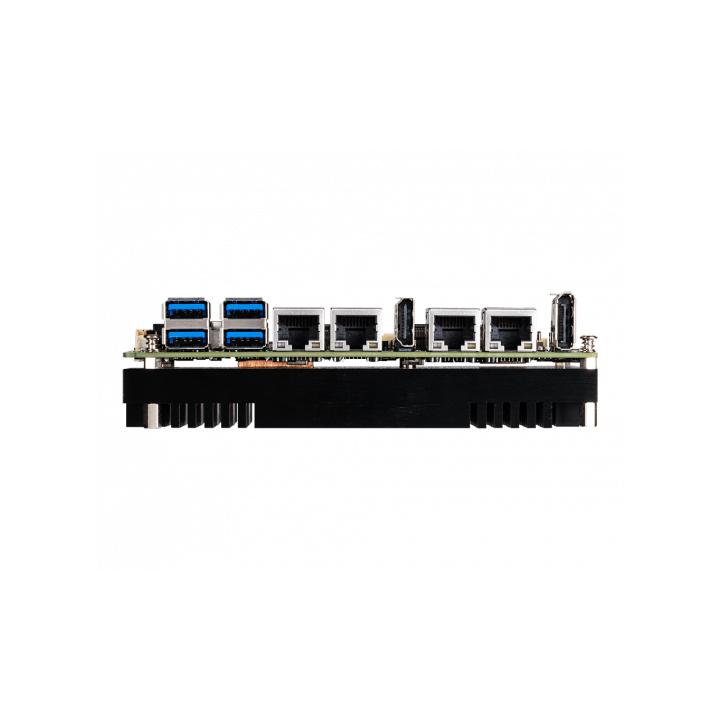

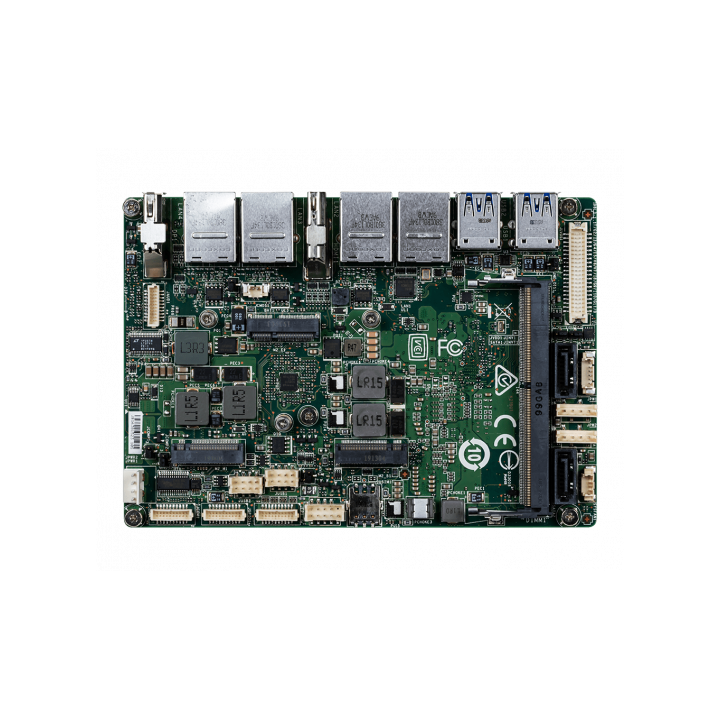

PB MSI SBC 3.5" MS-98L3 / I5-8365UE

PB MSI SBC 3.5" MS-98L3 / I5-8365UE

3.5" SBC with Intel® Whiskey Lake-U for Fanless, Ultra Low-Power & High-Performance Solution
Intel® 8th Gen Whiskey Lake-U Series
DDR4 2400 MHz SODIMM Slot up to 32GB
Triple independent displays: DP++ , HDMI, LVDS
4 GbE LAN for RJ-45
1 M.2 B key (with NANO SIM-holder), 1 M.2 E key (with CNVi)
M.2 M key, 2 SATA 3.0, Micro SD for storage SATA RAID 0/1/5 (RAID 5 configured with M.2 M Key)
4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), GPIO, Audio
Onboard TPM 2.0
Wide Voltage DC-IN 12~24V (OCP & OVP)

Core™ i5-8365UE, QC, 15W
1 x 260-pin SO-DIMM Up to 32GB
HDMI up to 4096 x 2160 @24Hz
DP up to 4096 x 2160 @60Hz
1 x Intel® I219LM GbE-PHY LAN (AMT 12.0 supported by i7/i5 SKUs)
3 x Intel® I210-AT GbE LAN
DC-in 12~24V (OCP & OVP)
146 x 102mm (3.5")
