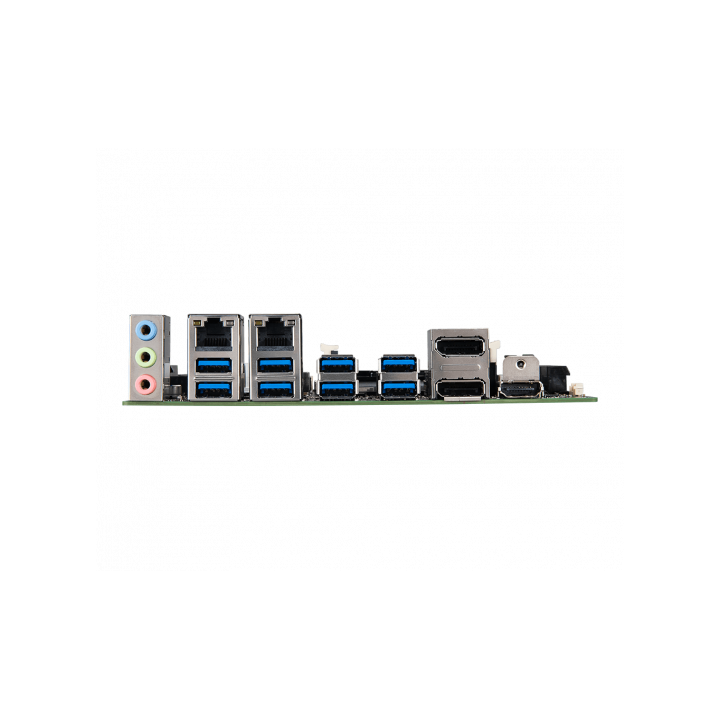

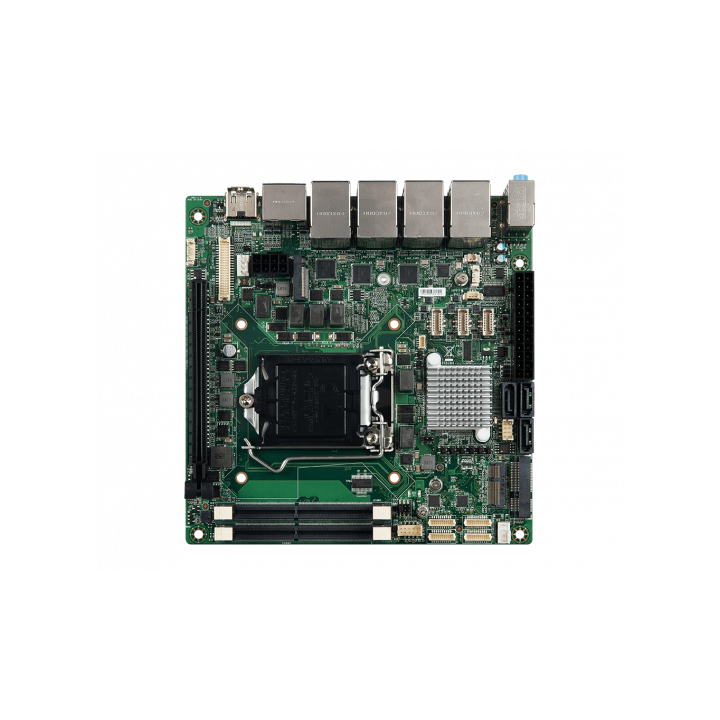

PB MSI ITX MS-98L1 / Q370

PB MSI ITX MS-98L1 / Q370

Mini-ITX with 8th Gen Intel® Coffee Lake-S/ 9th Coffee Lake Refresh-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® Processor & Intel® C246/Q370/H310 for High-Performance Solution
Intel® 8th Gen Coffee Lake-S Series with C246/Q370/H310
2 DDR4 2666 MHz ECC/non-ECC SODIMM slots up to 64GB
Triple independent displays: 2DP, HDMI (DP by option), LVDS
4 GbE LAN with RJ-45
1 PCIe x16 (Gen 3) Slot, M.2 E key (with CNVi), 1 Mini-PCIe (Full size, with SIM Holder) slots
M.2 M key, 3 SATA 3.0 for storage
SATA RAID 0/1/5/10 (RAID 10 Configured with M.2 M Key)
4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio, S/PDIF, System FAN
Onboard TPM 2.0 (by option)
SMBus, iAMT 12.x
ATX Power

Intel® Q370 Express
2 x 260-pin DDR4 SO-DIMM Up to 32GB
LVDS up to 1920 x 1200@60Hz
HDMI up to 4096 x 2160@24Hz
DP up to 4096 x 2304@60Hz
1 x Intel® I219-LM GbE LAN PHY
1 x Intel® I210-AT GbE LAN
170 x 170mm (Mini-ITX)
