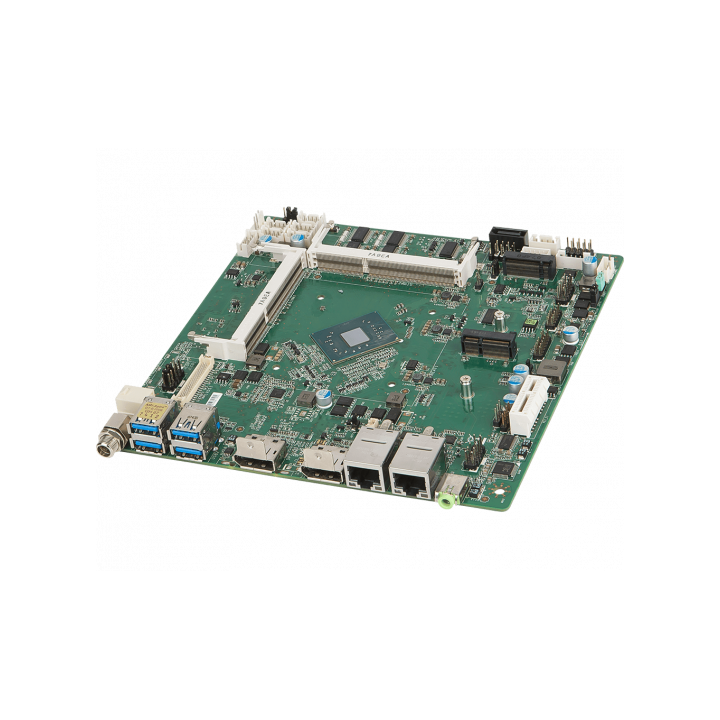

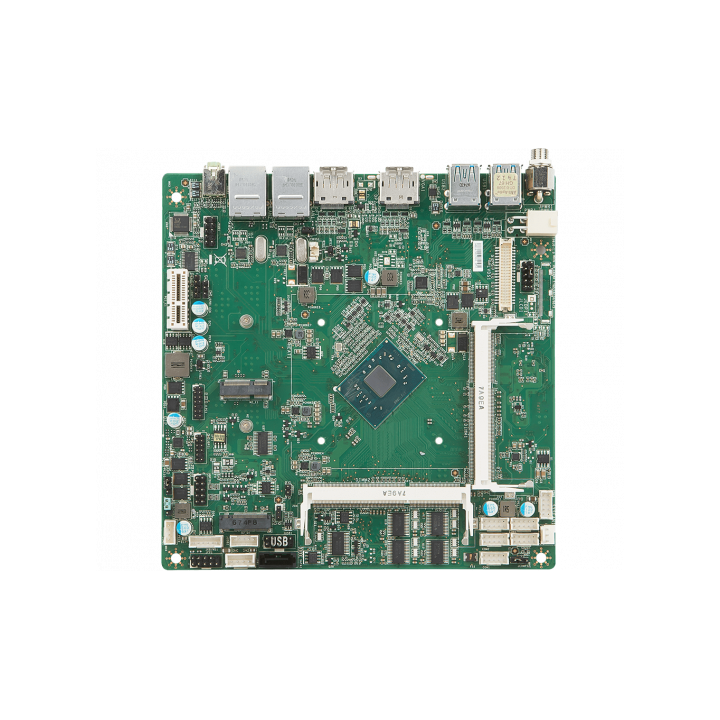

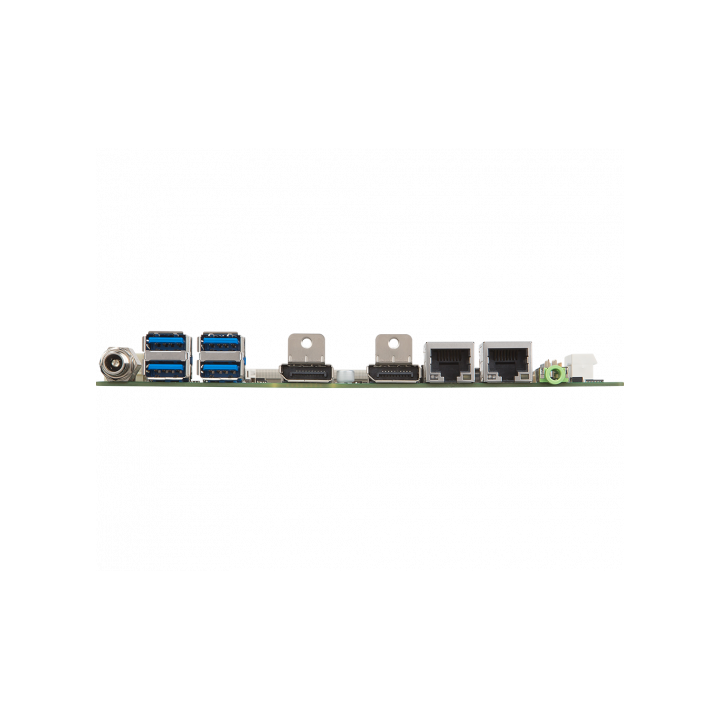

PB MSI ITX MS-98JO / J3455

PB MSI ITX MS-98JO / J3455

MS-98J0
Mini-ITX with Intel® Apollo Lake SoC Series for Fanless, Low-Profile, Multi-Displays Solution
Intel® Apollo Lake/Apollo Lake-I Series SoC
2 DDR3L 1866MHz SODIMM slots up to 8GB
Triple independent displays : VGA (DP by option), HDMI (DP by option), LVDS (eDP by option)
2 GbE LAN with RJ-45
1 PCIe x1 (Gen 2), 1 M.2 E Key slots
M.2 M Key, 1 SATA 3.0 for storage
4 USB 3.2 Gen 1, 3 USB 2.0, 6 COM (1 RS485), GPIO, PS/2, Audio, S/PDIF, System FAN
Onboard TPM 2.0 (by option)
SMBus, Chassis Intrusion
DC-IN 12V

Intel® Atom™ x5 Processor E3940, QC, 9W
2 x 204-pin SO-DIMMs Up to 8GB
2 x Realtek® RTL8111H-CG
3 x USB 2.0 (internal)
4 x USB 3.2 Gen 1 (rear)
6 x COM ports (Internal)
DC-in 12V
170 x 170mm (Mini-ITX)
