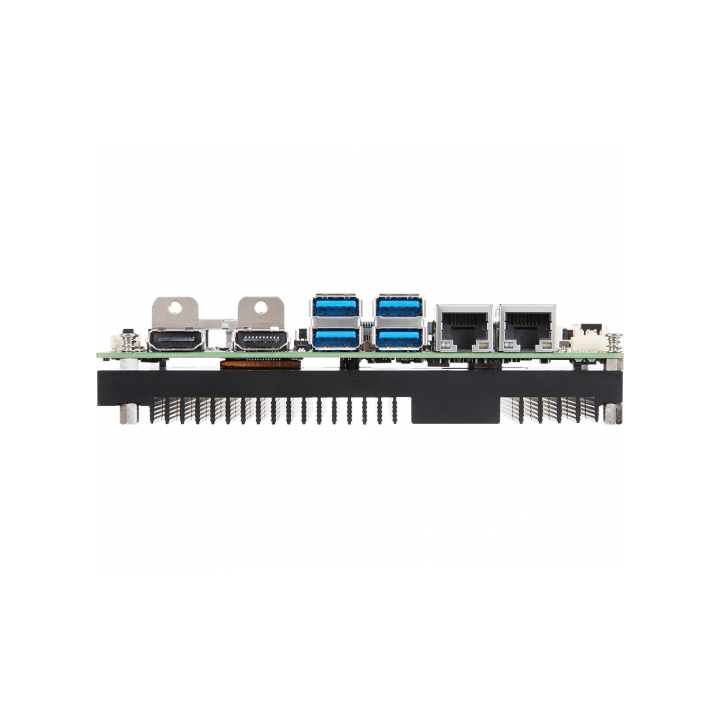

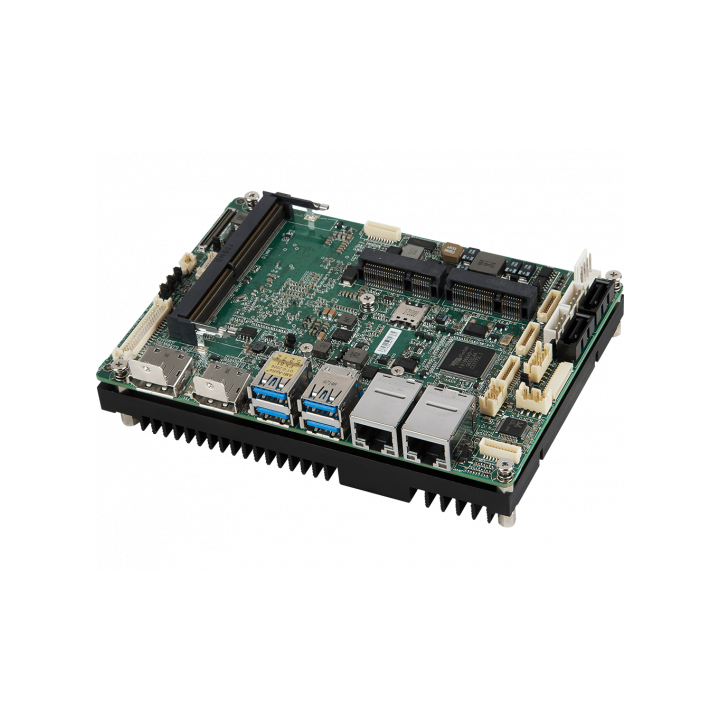

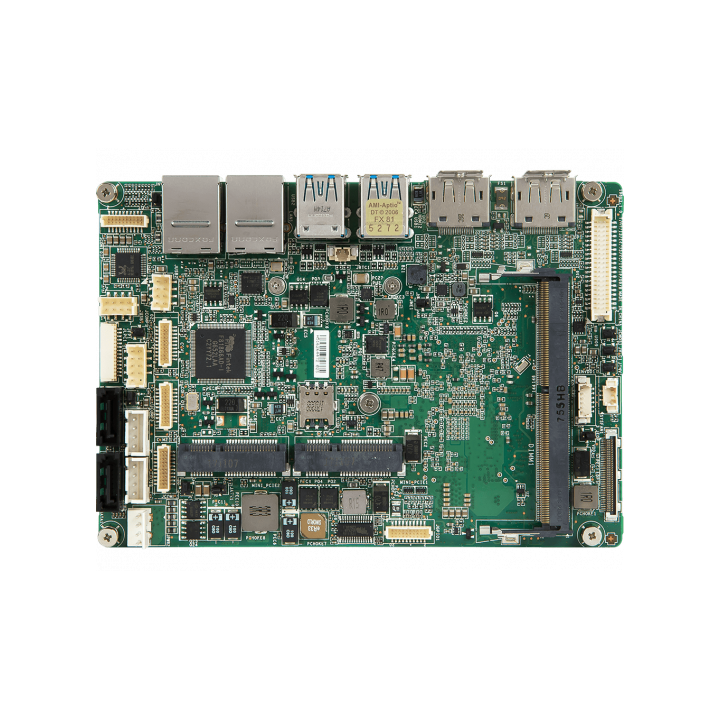

PB MSI SBC 3.5" MS-98H3 / I7-7600U

PB MSI SBC 3.5" MS-98H3 / I7-7600U

3.5" SBC with Intel® Kaby Lake-U/Skylake-U for Fanless, Ultra Low-Power & High-Performance Solution
Intel® 7th Gen Kaby Lake-U/Skylake-U Series
DDR4 2133 MHz SODIMM Slot up to 16GB
Triple independent displays: DP++ , HDMI, LVDS, eDP
2 GbE LAN with RJ-45
1 Mini-PCIe (Full size, with mSATA), 1 Mini-PCIe (Full size, with Nano SIM Holder) Slots
2 SATA 3.0, Micro SD for storage SATA RAID 0/1
4 USB 3.2 Gen 1, 4 USB 2.0, 6 COM(1 RS-485), GPIO, Audio
Wide Voltage DC-IN 12~24V

Intel i7-7600U
1 x 260-pin SO-DIMMs Up to 16 GB
1 x Intel® I210-AT GbE LAN
1 x Intel® I219LM GbE-PHY LAN (AMT 11.x supported)
2* HDMI1.4 up to 4096 x 2160 @ 24 Hz
DC-in 12V~24V
146 x 102mm (3.5")
