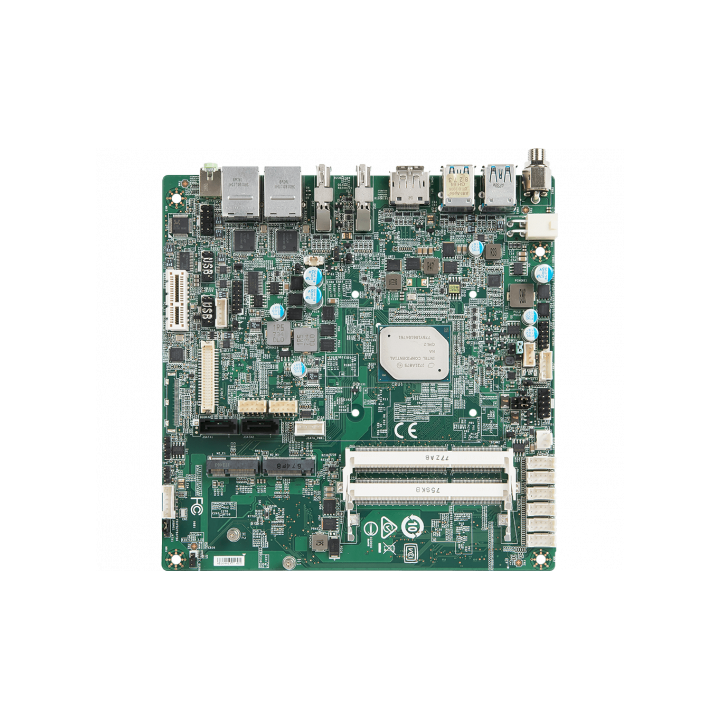

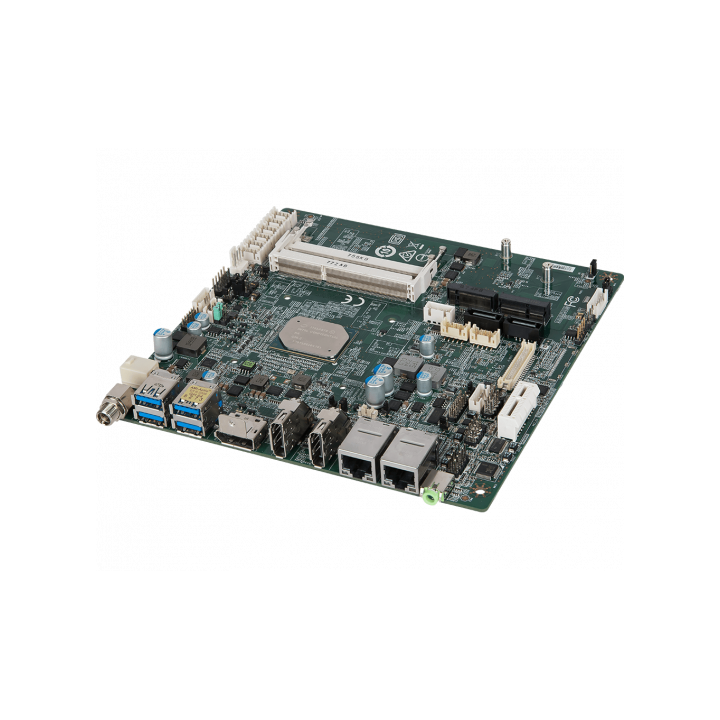

PB MSI ITX MS-98B1 / N3350

PB MSI ITX MS-98B1 / N3350

Mini-ITX with Intel® Apollo Lake SoC Series for Fanless, Low-Power, High-Performance, Multi-Displays & Multi-Functions Solution
Intel® Apollo Lake/Apollo Lake-I Series SoC
2 DDR3L 1866MHz SODIMM slots up to 8GB

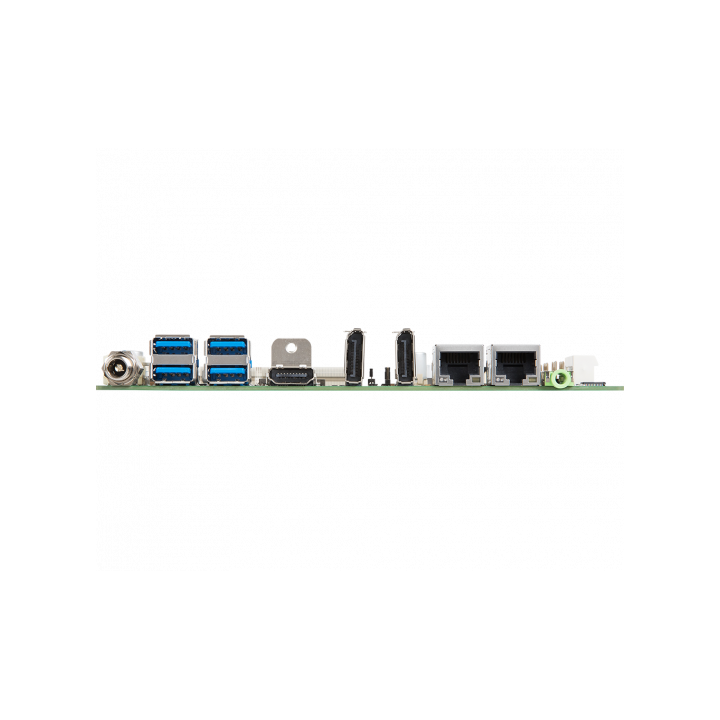

Triple independent displays: 2 DP, HDMI (DP by option), LVDS (eDP by option)
2 GbE LAN with RJ-45
1 PCIe x1 (Gen 2), 1 M.2 E Key slots
M.2 M Key, 2 SATA 3.0 for storage
4 USB 3.2 Gen 1, 5 USB 2.0, 6 COM (2 RS-485), GPIO, PS/2, Audio, S/PDIF, System FAN
Onboard TPM 2.0 (by option)
SMBus, Chassis Intrusion
DC-IN 12/19/24V

Intel® Celeron® Processor N3350, DC, 6W
2 x 204-pin SO-DIMMs Up to 8GB
2 x Intel® I211-AT (colay I210-AT GbE LAN)
HDMI up to 3840 x 2160 @30Hz
DP up to 4096 x 2160 @60Hz
DC-in 12/19/24V
170 x 170mm (Mini-ITX)
