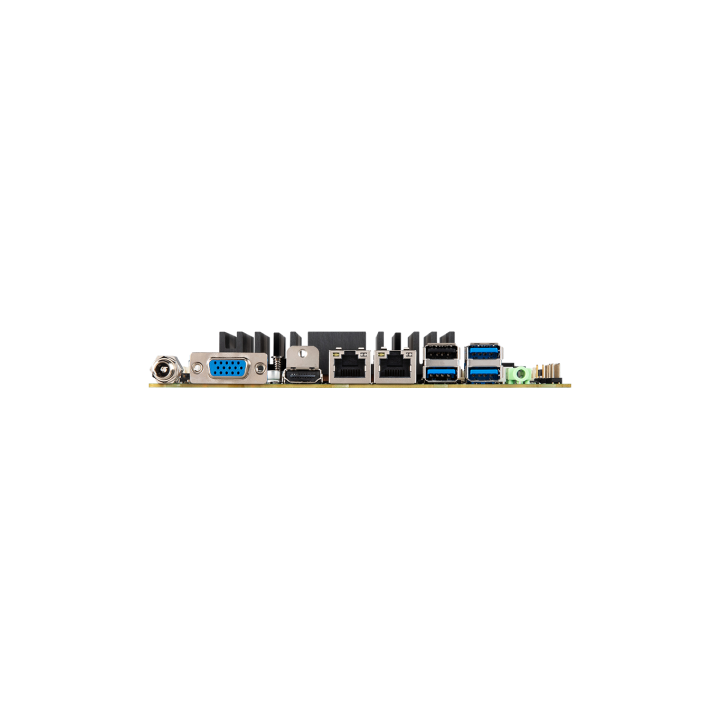

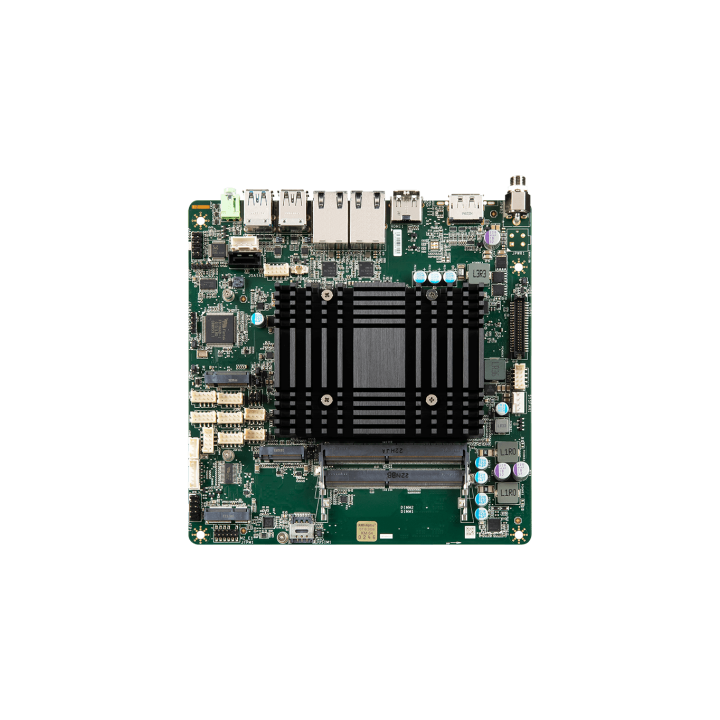

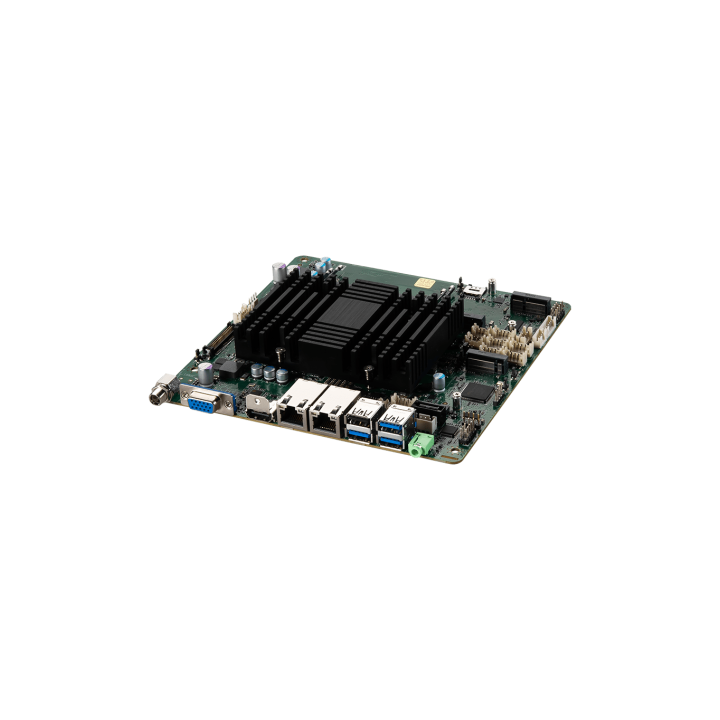

PB MSI ITX MS-98N1 / J6412 VGA

PB MSI ITX MS-98N1 / J6412 VGA

MS-98N1
Mini-ITX with Intel® Elkhart Lake SoC Series for Fanless, Low-Power, High-Performance, Multi-Displays & Multi-Functions Solution
Intel® Elkhart Lake Series SoC
2 DDR4 3200MHz SODIMM slots up to 32GB
Triple independent displays: 1 HDMI™, 1*VGA, 1 LVDS/eDP
2 2.5GbE LAN with RJ-45
M.2 E Key, M.2 B Key (with SIM Holder)
M.2 M Key, 1 SATA 3.0 for storag
mSATA, 1 SATA 3.0 for storage
3 USB 3.2 Gen 1, 5 USB 2.0, 6 COM (2 RS-485), GPIO, PS/2, Audio, System FAN
Onboard TPM 2.0
DC-in 12V/19V/24V

Intel® Celeron® Processor J6412, QC, 10W
Dual-channel DDR4 3200 MHz Up to 32 GB
Intel® UHD Graphics
3 independent displays
1 HDMI™, 1*VGA, 1 LVDS/eDP
5 x USB 2.0 (1 x rear, 4 x internal)
3 x USB 3.2 Gen 1 (rear)
6 x COM ports (internal)
COM1: RS-232/422/485, RI/0V/5V/12V
COM2: RS-232/422/485, 0V/5V/12V
COM3-6: RS-232, W/O Power
DC-in 12/19/24V
