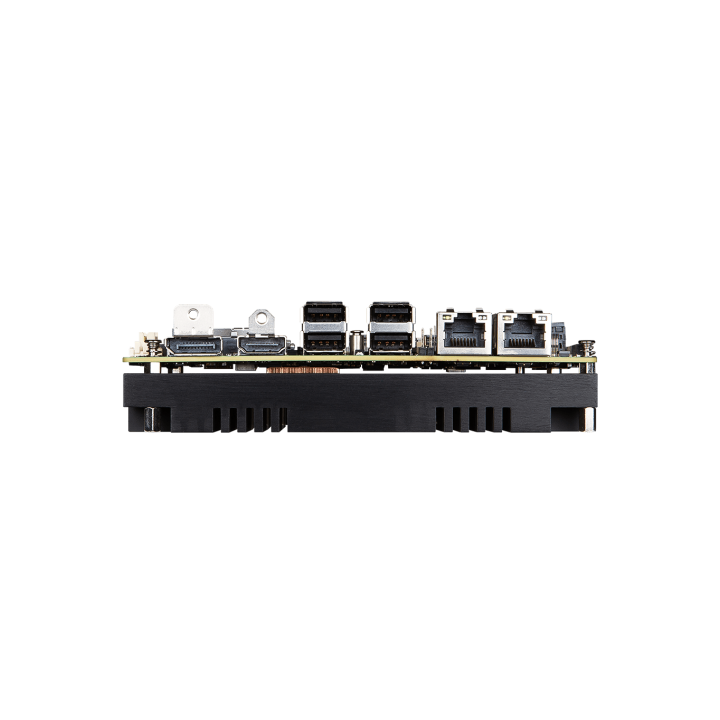

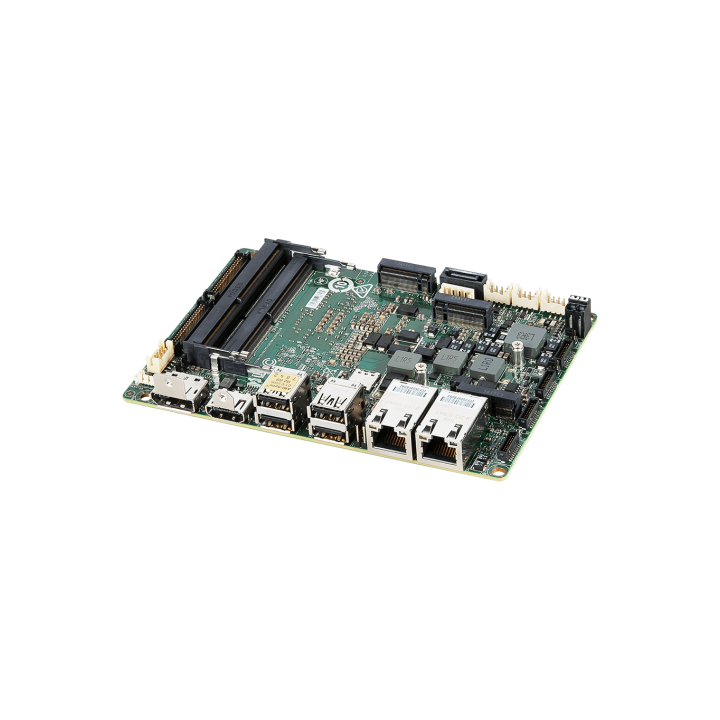

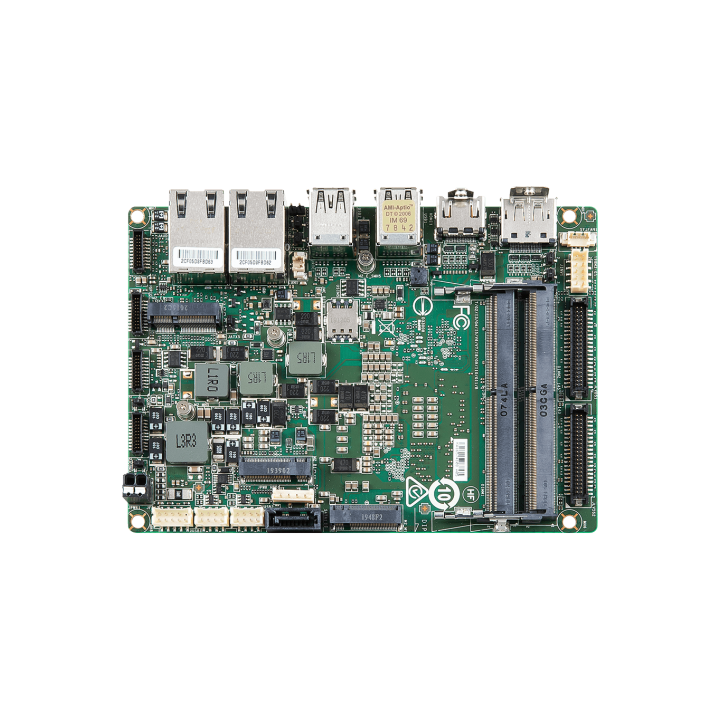

PB MSI SBC 3.5" MS-98M3 / I3-1115G4E

PB MSI SBC 3.5" MS-98M3 / I3-1115G4E

MS-98M3
3.5" SBC with Intel® Tiger Lake-UP3 for Fanless, Ultra Low-Power, High-Performance & Wide Temperature Solution
Intel® 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series
DDR4 3200 MHz SODIMM Slot up to 64GB
Quadruple independent displays: DP++ , HDMI™, 2 LVDS/eDP
2 2.5GbE LAN with RJ-45
1 M.2 B key (with NANO SIM-holder), 1 M.2 E key
1 M.2 M key, 1 SATA 3.0 for storage
SATA RAID 0/1 (Supported by i7/i5 SKUs)
4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), DIO, Audio
Onboard TPM 2.0
Wide Voltage DC-IN 12~24V (OCP & OVP)
Wide operating temperature supported

11th Gen Intel® IoTG Mobile Tiger Lake-UP3 Core™ i3-1115G4E, DC, 28W
Dual-channel DDR4 3200MHz Up to 64GB
Intel® UHD Graphics
4 independent displays
2 x Intel® I225-LM 2.5 GbE LAN
DC-in 12~24V (OCP & OVP)
146 x 102 mm (3.5")
