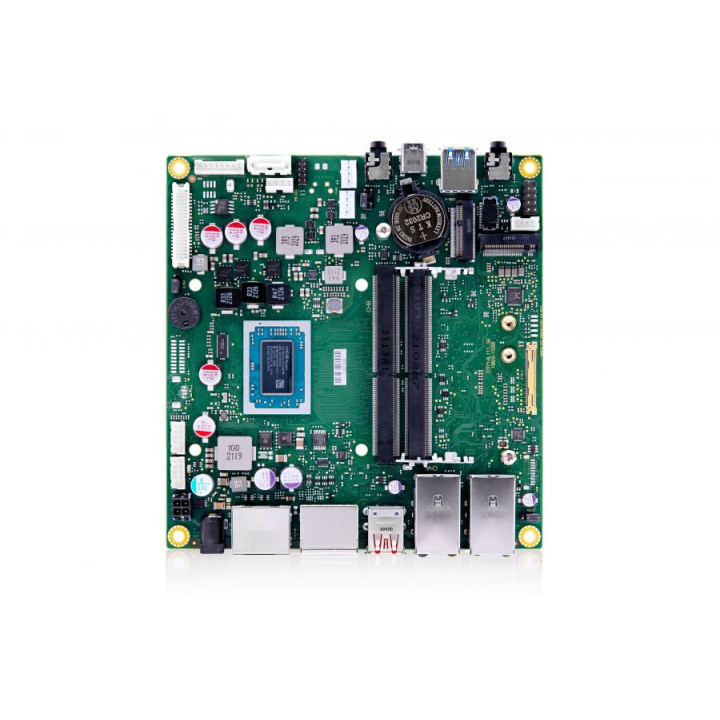

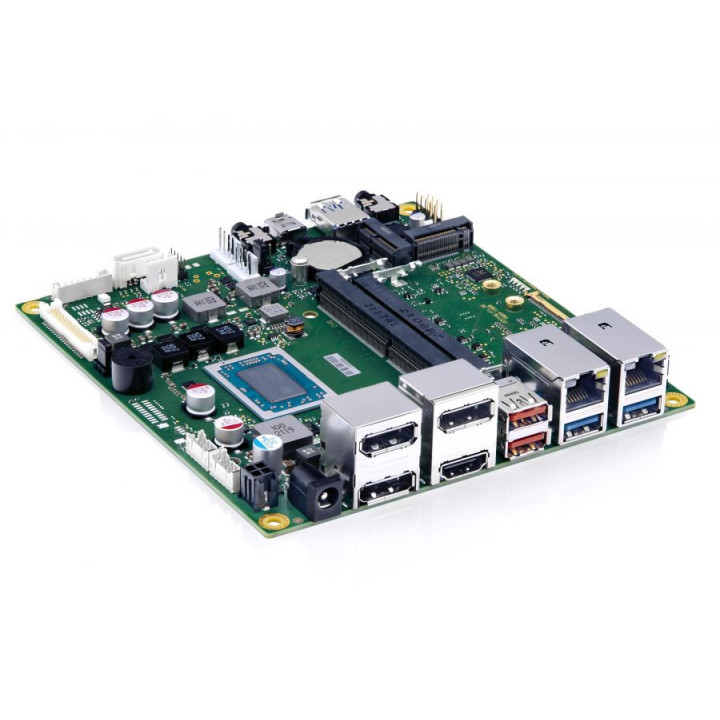

MB Kontron mSTX D3724-R3 (R2514)

MB Kontron mSTX D3724-R3 (R2514)

The industrial motherboard D3724-R mSTX supports the AMD Ryzen™ Embedded R2000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and ultra small industrial PCs. It is equipped with up to three DisplayPorts, one HDMI Port, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on the requirements for (graphical) performance, there are three motherboard versions available.

Looking for a mini-ITX motherboard that supports the same AMD Ryzen™ Embedded R2000 processors? Discover the D3723-R mITX sibling now!

AMD Embedded R2514 SoC
AMD Radeon™ Vega Graphics (within SoC)

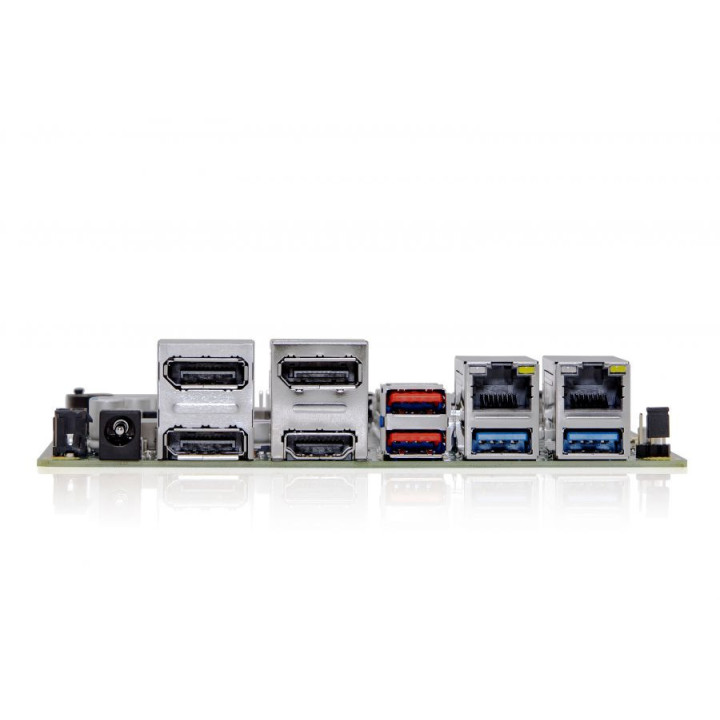

3x DisplayPort V1.4 plus HDMI V2.0b
Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
Designed for Fanless Operation
MS Windows 11 Support
