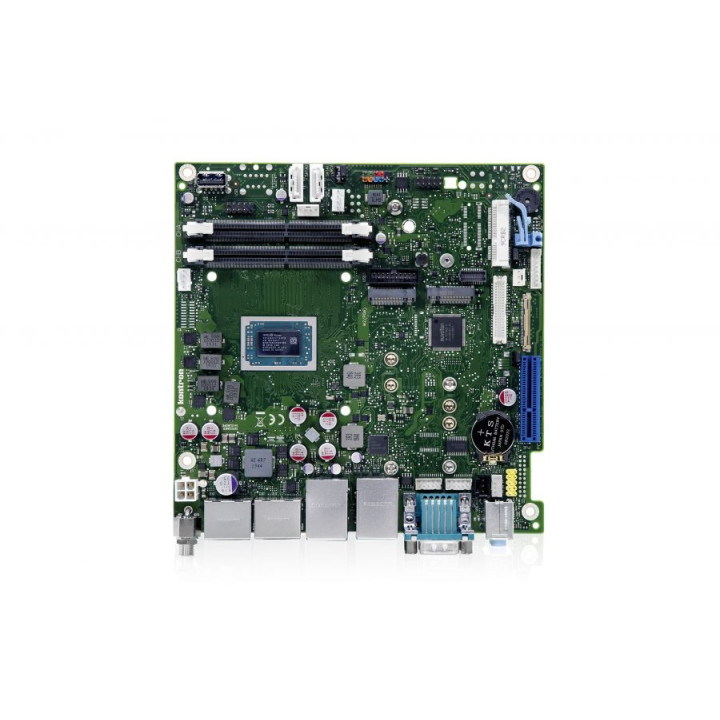

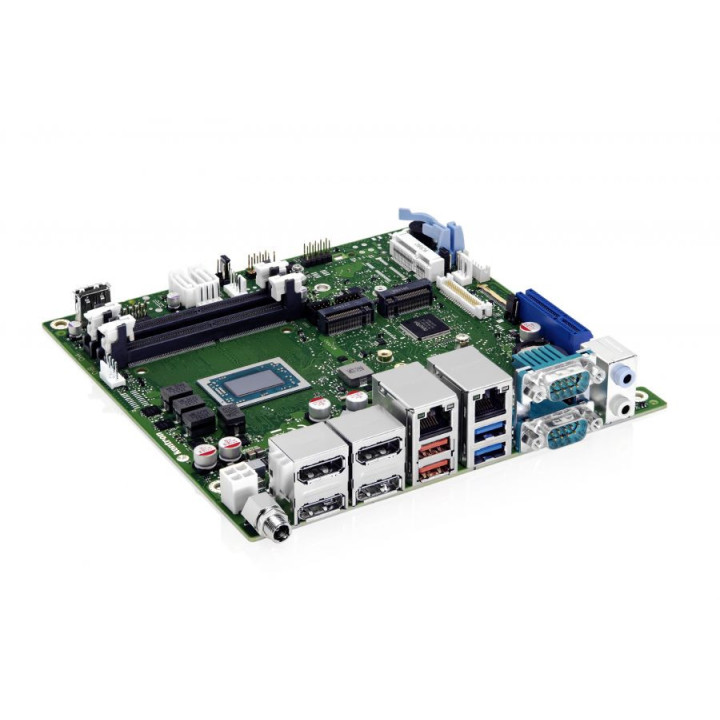

MB Kontron ITX D3723-R1 (R2312)

MB Kontron ITX D3723-R1 (R2312)

The industrial motherboard D3723-R mITX supports the AMD Ryzen™ Embedded R2000 processor series with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and industrial PCs. It is equipped with up to four DisplayPorts, one embedded Display-Port and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution.

Are you looking for a mini-STX motherboard that supports the same AMD Ryzen™ Embedded R2000 processors? Discover the D3724-R mSTX sibling now!

AMD Embedded R2312 SoC
AMD Radeon™ Vega Graphics (within SoC)

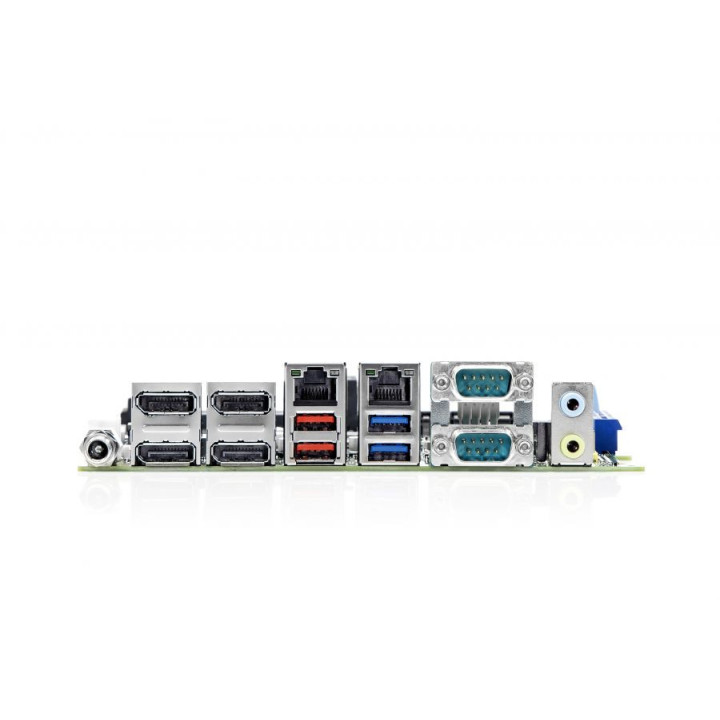

Up to 4x DisplayPort V1.4
Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
M.2 Key-B & M.2 Key M & Mini-PCI Express® supported
Windows 11 support
