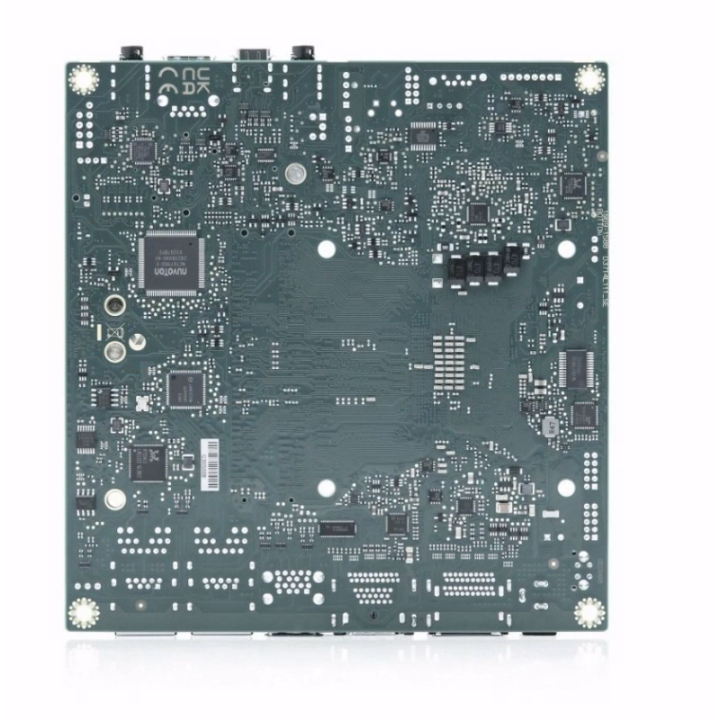

MB Kontron mSTX D3714-R2 (R1305G)

MB Kontron mSTX D3714-R2 (R1305G)

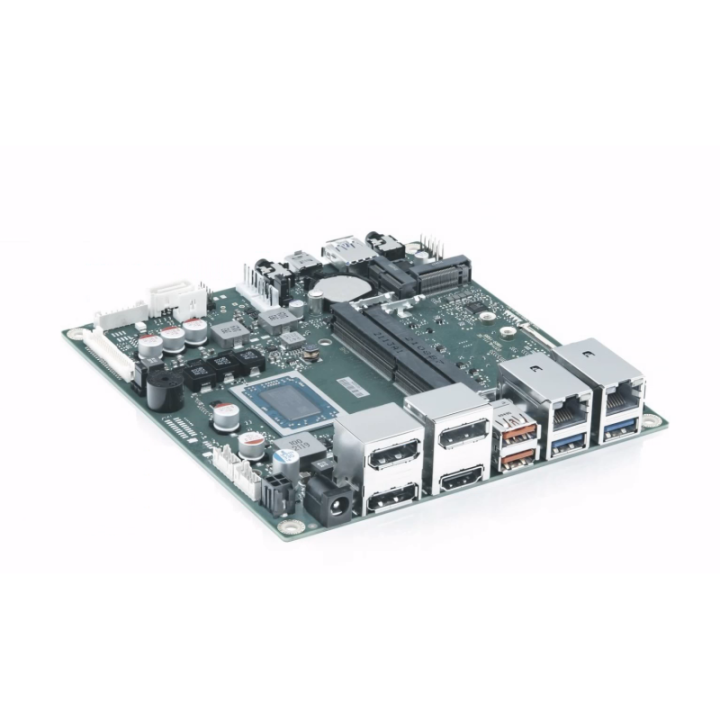

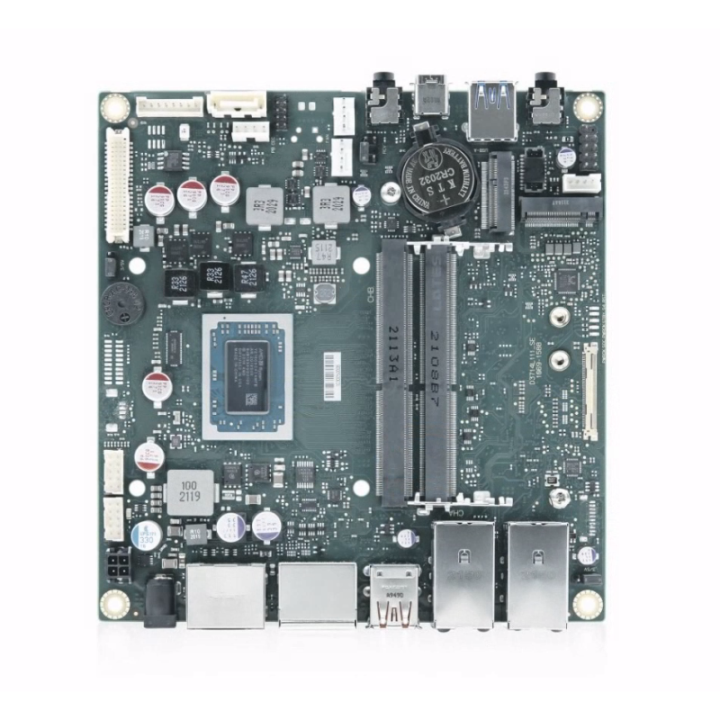

The industrial motherboard D3714-V/R mSTX supports the AMD Ryzen™ Embedded V1000 and R1000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and ultra small industrial PCs. It is equipped with up to three DisplayPorts, one HDMI Port, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on the requirements for (graphical) performance, there are 3 motherboard versions available.

AMD Radeon™ Vega Graphics (within SoC)

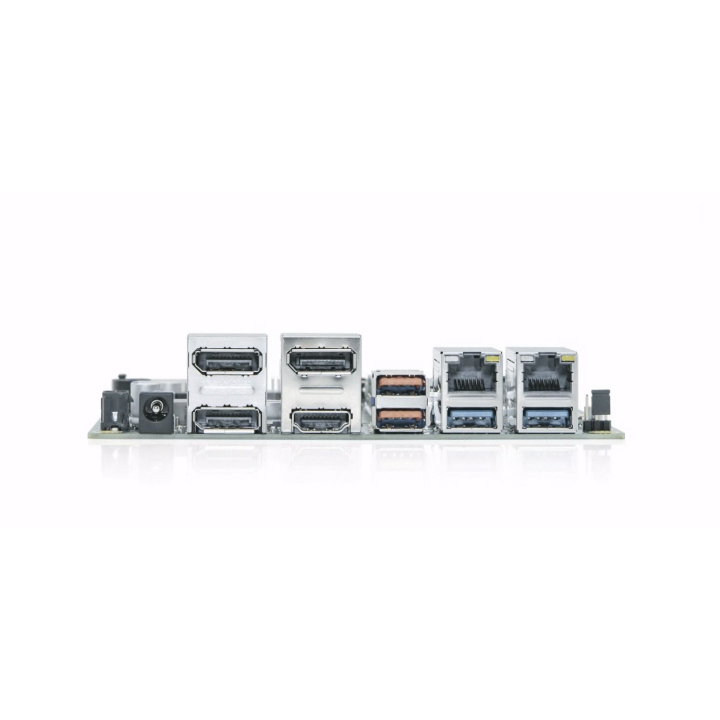

Up to 3x DisplayPort V1.4 plus HDMI V2.0b
Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
Designed for Fanless Operation
M.2 Key-M (SSD) and Key-E (WLAN/BT) supported
