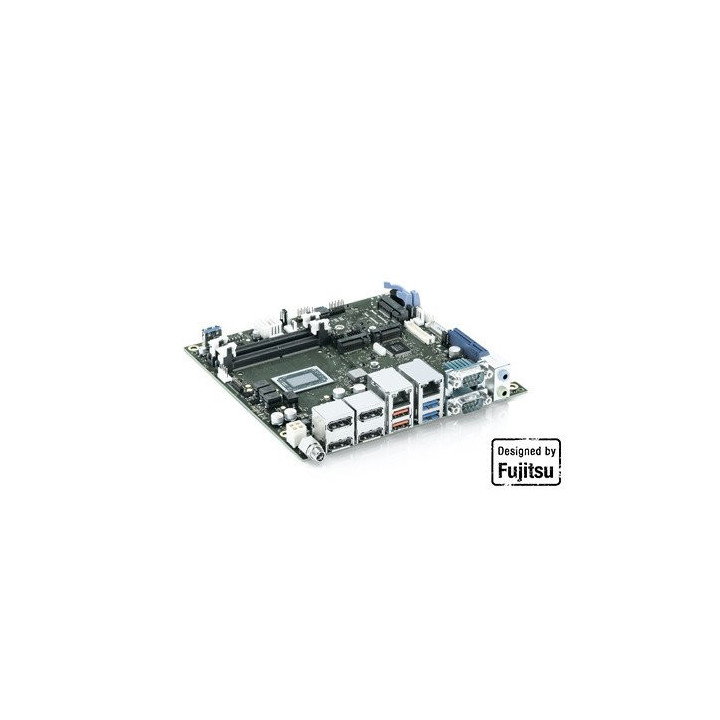

MB Kontron ITX D3713-R1 R1102G

MB Kontron ITX D3713-R1 R1102G

Platform for AMD FP5 SoC Processor

The industrial motherboard D3713-V/R mITX supports the AMD Ryzen™ Embedded V1000 and R1000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and industrial PCs.

It is equipped with up to four DisplayPorts, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on how much (graphical) performance is required, there are 6 motherboard versions with different AMD processors available.

AMD Radeon™ Vega Graphics (within SoC)
Up to 4x DisplayPort V1.4
Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
Designed for Fanless Operation
M.2 Key-B & M.2 Key M & Mini-PCI Express® supported
