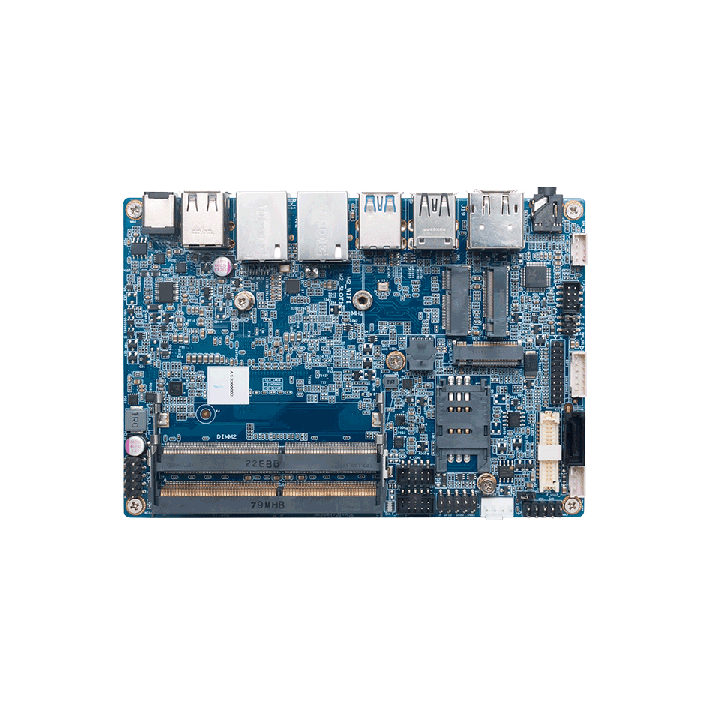

PB Giada EN-J6412DL

PB Giada EN-J6412DL

Intel Elkhart Lake Processors
Long Product Life Cycle
The 3.5inch SBC with Elkhart Lake embedded processor, the low TDP (10W) Celeron J6412. The Elkhart Lake platform has up to 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance generation over generation.

Supporting Dual 4K Video Playback
EN-J6412DL intergrated Intel® UHD Graphics and has up to 2X performance improvement in graphics over previous generation. It supports vivid dual 1080p or dual UHD videos playback via HDMI 2.0a (4096 x 2160@60Hz) and DisplayPort 1.2 (4096 x 2160@60Hz) ports. EN-J6412DL provide 30pin LVDS video header or 1 set of eDP header.

Intel® Celeron® J6412 processor

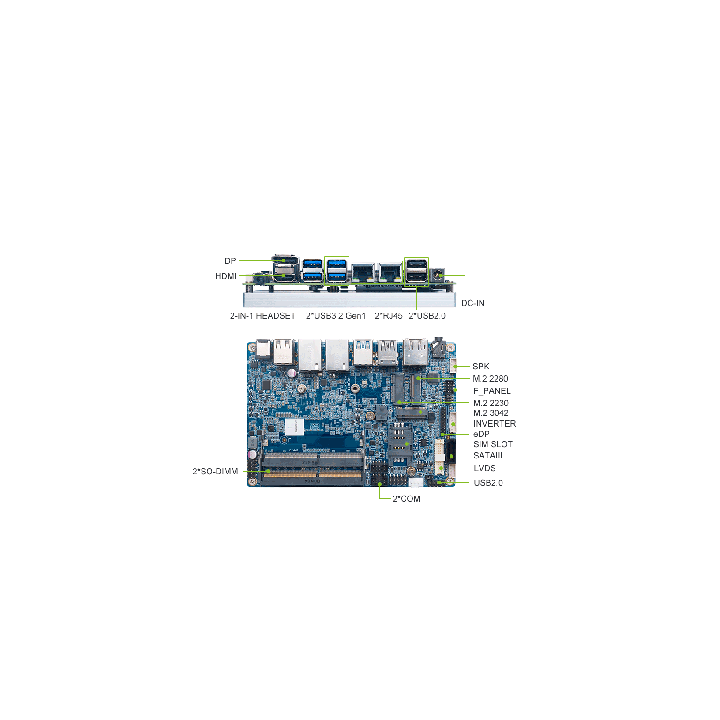

1 x HDMI (Max.4096 x 2304 @60 Hz)
1 x DP (Max.4096 x 2304 @60 Hz)
1 x RS232, signal by 1 x 9pin COM header
1 x RS232/422/485, signal by 1 x 9pin COM header
2 x Realtek RTL8111H Gigabit Ethernet
1 x M-Key M.2 (2280) for PCIe SSD
1 x 2.5” SATAIII
