PB Giada DT-H81DL

PB Giada DT-H81DL

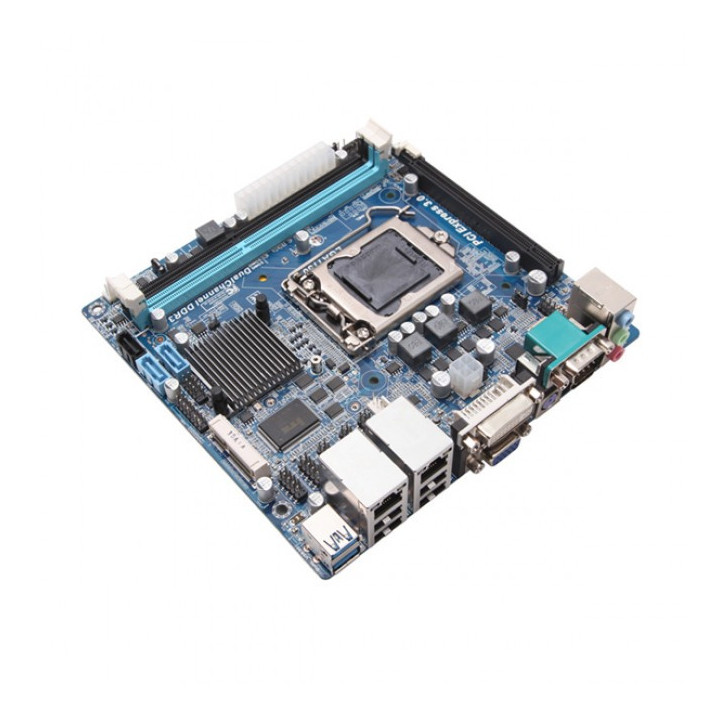

DT-H81DL is an engineering motherboard that uses Intel 8 series chipset H81 and the Mini-ITX structure. DT-H81DL supports an Intel® 4th Generation Haswell platform and Core™ i3 / i5 / i7 processors. DT-H81DL provides Two DDR3 DIMM slots, supports maximum 16 GB memory. Port support includes 1 x VGA port, 1 x DVI port, and 2 x HDMI ports for output which supports a 4K & 2K ultra HD display. Users can also add a discrete graphics card. The applications of DT-H81DL include advertising machines, digital signage, e-whiteboards, video conferencing devices and home theater PCs.

Intel® Socket 1150 Haswell i3/i5/i7 up to 65W TDP CPU support
Intel® H81 chipset
2 x DIMM, DDR3-1333/1600MHz, Max. 16GB
2 x Mini-PCIe (1 x Mini-PCIe + USB, 1 x mSATA)
3 x SATA sockets(2 x 6GB/s, 1 x 3GB/s)
1 x PCI-e x 16 slot
2 x RTL8111E Gigabit Eternet
5.1 HD Audio CODEC
10 x USB2.0 (4 x Rear USB 2.0, 2 x Rear USB 3.0, 4 x Onboard USB)

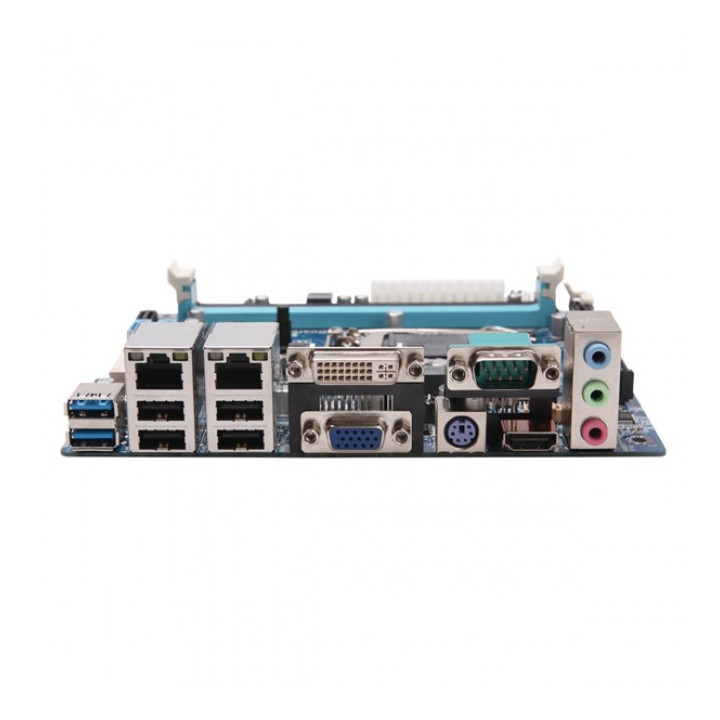

1 x VGA, 1 x HDMI, 1 x DVI
1 x 24-pin ATX socket
1 x 4-pin ATX 12V socket
Compatible with Windows® 8 Pro
