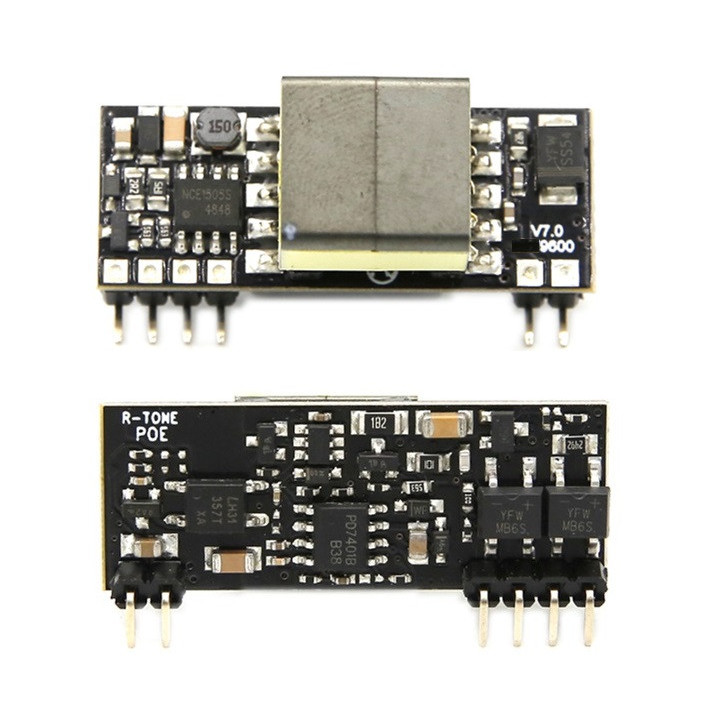

BPI-9600 POE Module for BPI-P2 Zero

BPI-9600 POE Module for BPI-P2 Zero

The BPI-9600 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard. The BPI-9600 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The BPI-9600 provides a Class 0 signature.

The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.

IEEE802.3af compliant
Input voltage range 36V to 57V
Integral high efficiency DC/DC converter.
Low output ripple and noise
High performance with low price
Short-circuit protection
Adjustable Output
Optional multi-voltage output 3.3V 5V 12V 24V
Transformer isolation ,1500V isolation (input to output)
Easy to use, with a minimum number of external components.
