PC61J

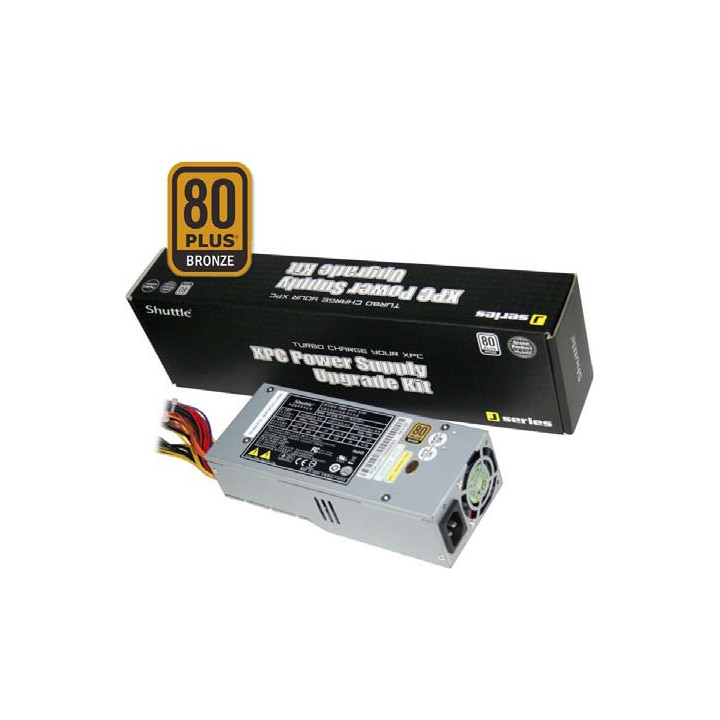

Efficient 300W Power Supply for Shuttle XPCs

The Shuttle XPC Accessory PC61J is a high-end power supply with a maximum output wattage of 300W suitable for certain Shuttle XPCs of the H, J and R series. With a low noise level, it is ideal for use in any noise-sensitive environments such as a library and offices. Thanks to its 80 PLUS Bronze certification for power-efficient devices, this power supply is also suitable for ENERGY STAR compliant systems. Benefit from less power consumption and less energy costs using PC61J.

Model: Shuttle XPC Accessory PC61J (power supply)
Output wattage:
Total combined output is 300W max.
Total combined output of 3.3V and 5V is 80W max.
Active PFC circuit (Power Factor Correction)
Input Voltage/Frequency range:
100~240V AC, 50/60Hz
Input current:
max. 6A/3A for 115V/230V AC during normal operating
Inrush current: 60A/90A for 115V/230V AC
DC voltage output, max. output current:
+12V1: 16A
+12V2: 16A
+3.3V: 12A
+5V: 15A
+5VSB: 2A (Standby)
-12V: 0.3A
Power Connectors:
1x ATX power with 20 pins
1x ATX 12V power with 4 pins
1x PCIe power with 6 pins (for graphics card power)
3x Serial ATA power
2x Molex power
1x Floppy power
Protection:
Short circuit protection (SCP) - Latch off
Overpower (overload) protection (OPP)
Overcurrent protection (OCP)
Overtemperature protection (OTP)
Overvoltage protection (OVP)
Undervoltage protection (UVP)
Efficiency:
80PLUS Bronze compliant
The PSU provides at least 82/85/82% efficiency at 20/50/100% load.
Certification:
EMI/RFI: FCC class B, CE, BSMI, CCC
Safety: cUL, T-V type approved, CB, BSMI, CCC
Timing, housekeeping and control conform Intel ATX12V Specific Guidelines 2.3
Mean Time Between Failures (MTBF)
> 100.000 hours at 75% load, 25ºC
Temperature:
Operating temperature: +10ºC ~ +50ºC
Storage temperature: -40ºC ~ +70ºC
Cooling fan:
50mm ball bearing fan with thermal Fan-speed control
Dimensions: 200 x 82 x 53 mm (LWH)
Scope of delivery: power supply and 4 screws
Weight: net weight: 1.1 kg, gross weight: 1.2 kg
Compatibility:
Supported Shuttle XPC models:
H series: SH67H3, SH67H7, SN78SH7, SG45H7, SP45H7
J series: SG41J1/J4, SH55J2
R series: SH61R4, SH87R6
Cable lengths designed for the Shuttle XPC.
