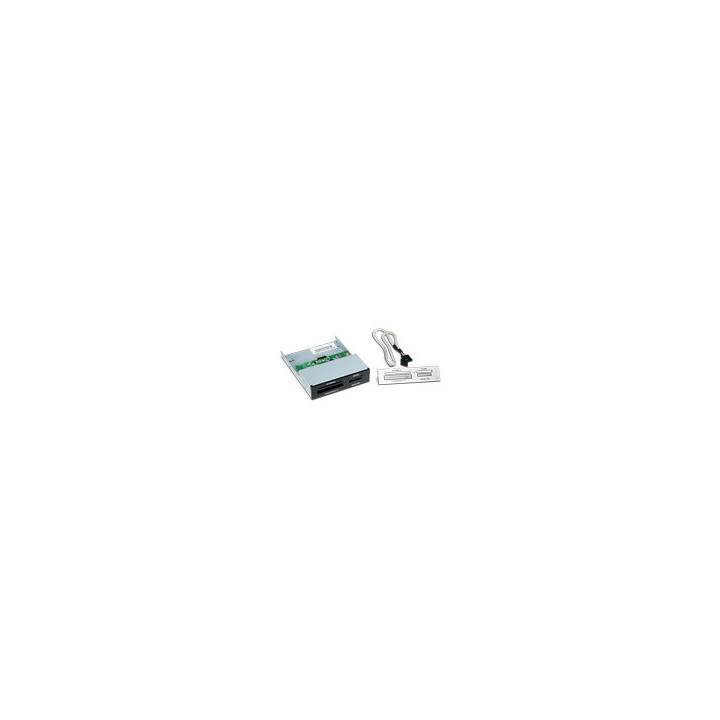

SHUTTLE MEMORY CARD 22in1 USB2.0

SHUTTLE MEMORY CARD 22in1 USB2.0

25-en-1 lector de tarjetas USB 2.0

Shuttle XPC PC23 es un accesorio USB interno 2.0 lector de tarjeta de memoria, que soporta todos los importantes y populares formatos digitales, que son ampliamente utilizados en muchas aplicaciones populares, tales como cámara digital, cámara de vídeo, PDA, dispositivos de IA, etc Shuttle PC23 es fácil de instalar (Plug & Play) en un proceso abierto de 3,5 "de su Shuttle XPC y usted tendrá más rápida y fácil manera de transferir imágenes, música y datos a tu ordenador o para otras tarjetas de memoria. Además, tendrás ampliar la batería de su cámara digital de la vida cuando la transferencia de los archivos de este lector de tarjetas, y es más rápido. Con 2 paneles de colores intercambiables en plata y color negro de la PC23 Shuttle es la elección perfecta para su Shuttle XPC.

Feature:

* Supports all important card formats (25)
* Hi Speed USB 2.0 interface - up to 480 Mb/s
* No additional device driver needed under Windows 2000/XP/Vista
* Standard 3.5" drive bay installation
* 3 changeable color panels - black, white and silver
* LED indicator for read/write activity
* USB bus powered - no external power required



Specification:

* Model: Shuttle PC23
* Type: internal multi format card reader/writer
for the 3.5 inch bay
* Compatibility:
Kompatible to all Shuttle XPC with 3.5" drive bay
(G/P/T-series)
* 4 Sockets:
1. SD/MMC (Secure Digital and MultiMediaCard)
2. MS (Memory Stick)
3. SM SmartMedia)
4. CF Type I/II (CompactFlash)
* Supports all important card formats:
1. Secure Digital™ (SD 1.1)
2. Secure Digital High Capacity (SDHC, SD2.0)
3. Mini Secure Digital (mini-SD™) *
4. Multi Media Card™ (MMC)
5. MMC DualVoltage
6. Reduced-Sized Multi Media Card (RS-MMC) *
7. RS-MMC DualVoltage *
8. Transflash™ *
9. Micro SD *
10. Memory Stick™ (MS)
11. MS-DUO *
12. MS-PRO
13. MS-PRO DUO *
14. MS-Memory Select Function
15. MS ULTRA II
16. MS ROM
17. Magic Gate™ MS
18. Magic Gate MS Pro
19. Magic Gate MS-DUO*
20. Magic Gate MS-PRO DUO *
21. Micro Memory Stick™* (M2)
22. Compact Flash I ™ (CFI)
23. Compact Flash II ™ (CFII)
24. IBM Microdrive™ (MD)
25. Smart Media™ Card (SM)

* Adaptor required for mini size card
* Two front panels included:
2 changeable front panel included: black and silver
* Interface: Internal USB 2.0 interface
Transfer speed up to 480 Mb/s
USB 1.1 backward compatible (up to 12 Mb/s)
Support USB v2.0 specification and USB Device Class Definition
for Mass Storage, Bulk-Transport v1.0
* LED indicator
The LED indicates read/write activity
* OS Support: Windows 98SE/ME/2000/XP/Vista, Mac OS X
Mass storage class driver support
No additional drivers needed
(note: please connect PC23 after the OS installation)
* Size/Installation:
Standard 3.5" drive bay installation
* Power Supply:
+5V DC, powered directly from USB port
no external power supply required
* Controller
Integrated USB 2.0 Transceiver Macro cell Interface (UTMI) transceiver
and Serial interface Engine
Hardware DMA engine integrated for performance enhancement
* Package contents:
3.5" card reader, 2 changeable front panels (black and silver),
USB cable (for 5 pin USB header on the mainboard)

* means: card adapter is required, which is usually already provided with the cards
