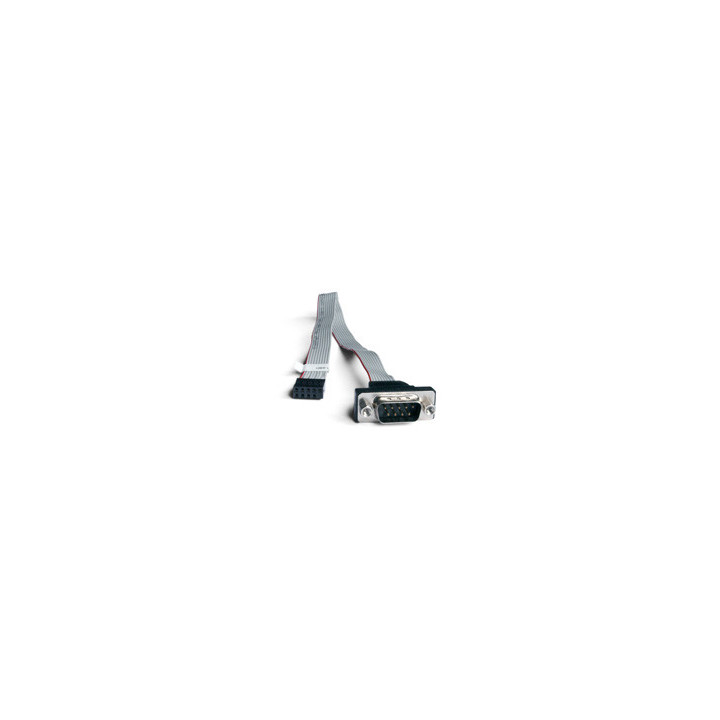

Shuttle XPC Accessory H-RS232 - Serial Port Adapter (RS232)

With the help of this adapter, several Shuttle XPCs can be equipped with a serial RS232 port.
Doing so, a Sub-D connector is added to the backpanel which is connected to the serial interface on the mainboard.

Scope of delivery:
Adapter with installation guide
Ports:
External: Sub-D, 9 pins, male
Internal: 10-pin (2×5), female, 2.54mm pitch
Cable:
9 pin ribbon cable, length: 32cm
Compatibility:
This accessory is compatible with the
Shuttle XPCs SA76R4, SH67H3, SH67H7, SH61R4, SZ68R5, SZ77R5, SX79R5, SH81R4, SH87R6, SZ87R6, SH97R6, SH110R4, SH170R6 (Plus), SZ170R8, SZ170R8V2, SZ270R8, SZ270R9, SH310R4, SH310R4V2, SH370R6 (Plus), SH370R6V2 (Plus), SH370R8.
