DIR01
DIN-Rail Mounting Kit for Shuttle XPC slim series in 1.3-litre format

A DIN-Rail is a metal rail widely used for mounting electronic control equipment inside equipment racks. The Shuttle XPC accessory DIR01 allows the installation of 1-litre XPC slim barebones on a standard 35 mm DIN-Rail. Should the required VESA mount (100 x 100 mm) not be included with your Shuttle XPC, it is available optionally.

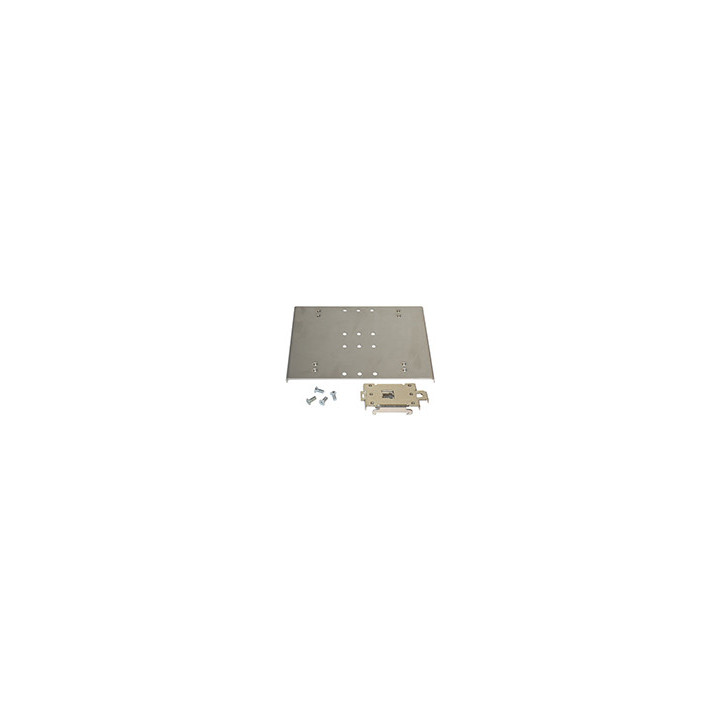

Scope of delivery:
(1) Stainless steel plate, 1.5 mm thick, 164 x 134 x 7 mm (WHD)
(2) DIN-Rail mounting clip for standard 35 mm DIN-Rail
(3) 4x countersunk-head screw (M4 x 8 mm)
(4) Quick Guide
Compatibility:
The Shuttle XPC accessory DIR01 is compatible with Shuttle XPCs in 1.3-litre format:
(1) Shuttle XPC slim Barebones (fanless):
DX30(V2), DL10J, DS47, DS407(T), DS437(T), DS57Ux, DS67Ux, DS68U, DS77Ux, DS10Ux
(2) Shuttle XPC slim Barebones (with fan):
DH02Ux, DS61, DS81, DS81L, DH110, DH110SE*, DH170, DQ170, DH270, DH310, DH310V2, DH310S*, DH370
*) Note: The DH110SE and DH310S do not include the required VESA mount. This is available separatelyas the Shuttle XPC accessory PV04.
