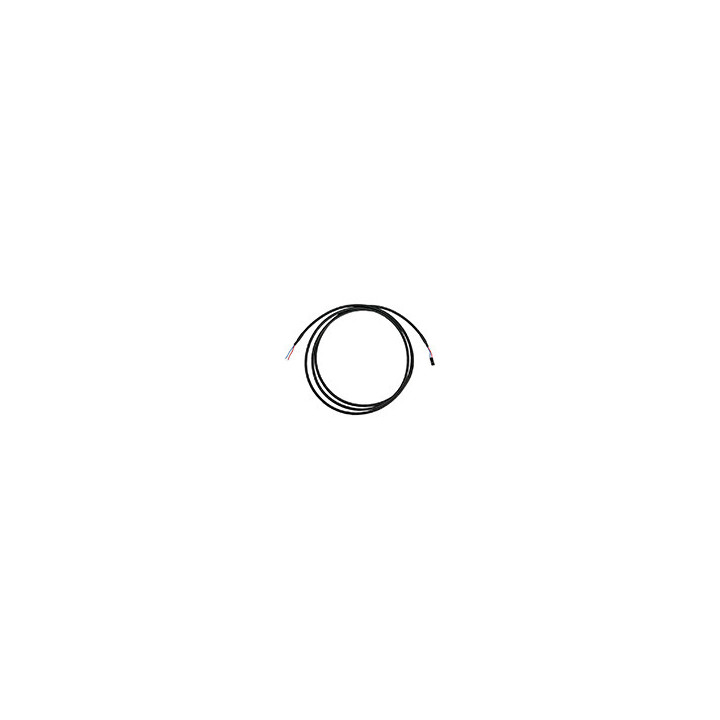

Cable for external Power-on-Button

Cable for external Power-on-Button

CXP01

Cable for external push button switch

Some Shuttle XPCs have a handy connector at the back panel to connect an external power button. In case the XPC is installed in a scenario where it cannot be accessed directly, be it VESA-mounted or otherwise remotely installed, it can still be powered on or off conveniently by using an external push button switch. Shuttle therefore provides a 2-metre cable with fitting connections that only requires a push button switch.

able
Shielded, industry-standard cable
Length: ca. 2 metres
Outer diameter: 4.5 mm
Two-pole cable: 2x 0.25 mm²
Colour: Black
Connector
Dual header connector, 2.54 mm pitch
Two female crimp contact pins, tin-plated
Required push button switch
The cable provides tin-plated leads for a push button switch of your choice.
The connection to the external power button can be screw-type or soldering.
Compatibility
The cable can be used with the following Shuttle XPC models:
DS61, DS81, DS81L, DH110, DH110SE, DH170, DQ170, DS47, DS407T, DS437, DS437T, DS57U Series, DS67U Series, DS68U, DX30
