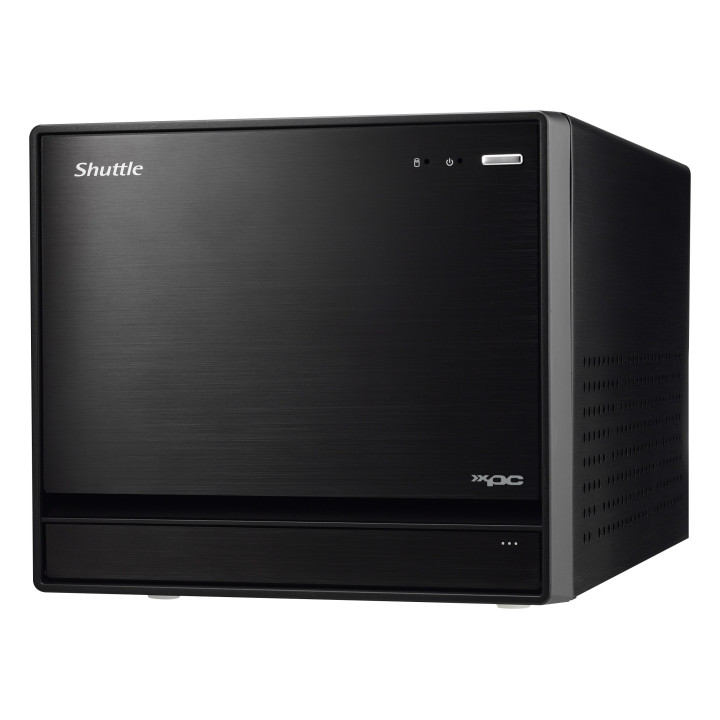

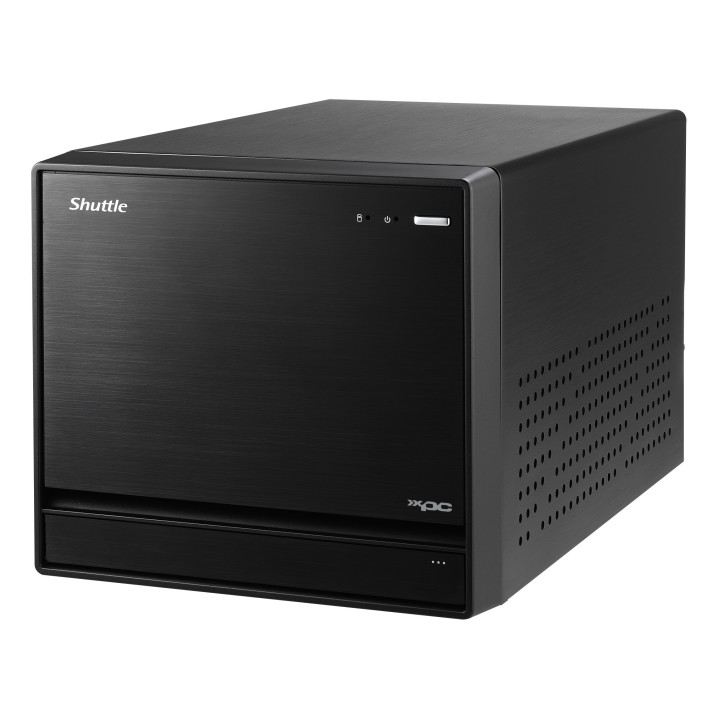

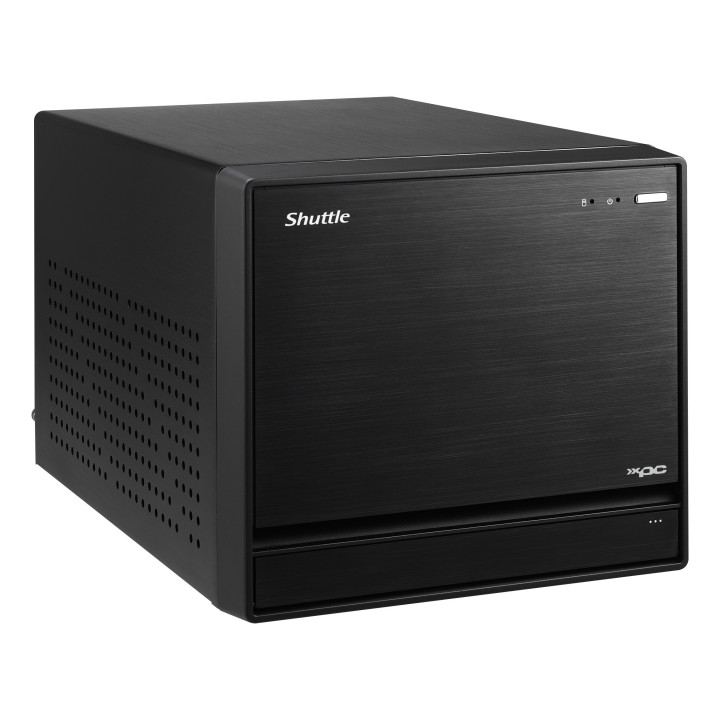

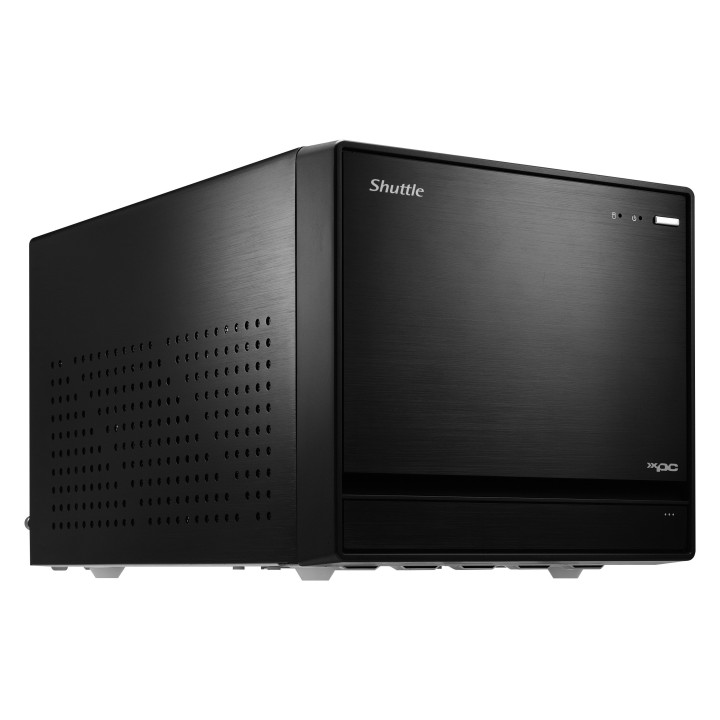

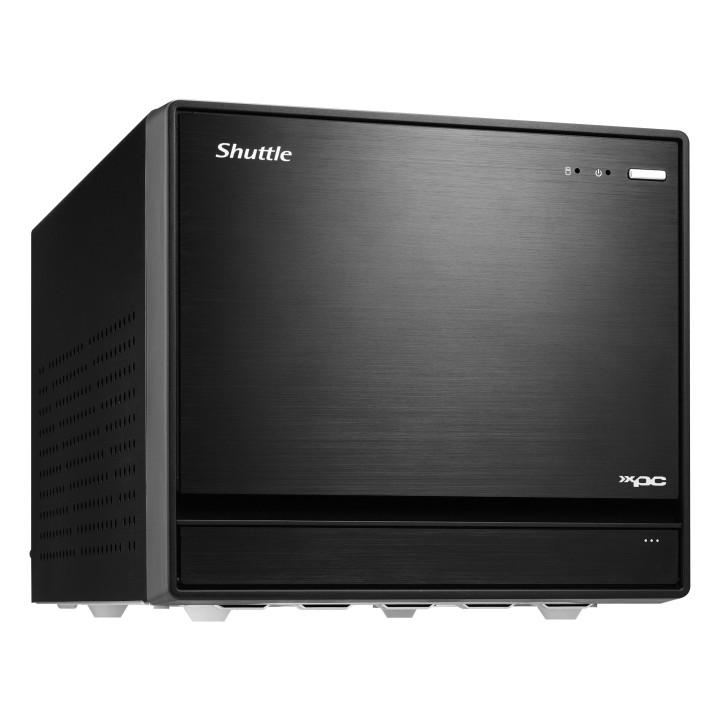

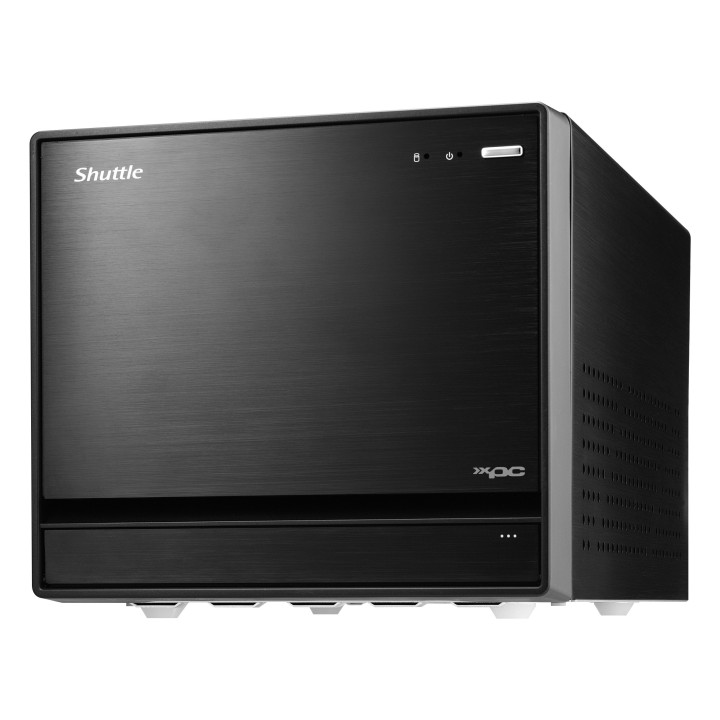

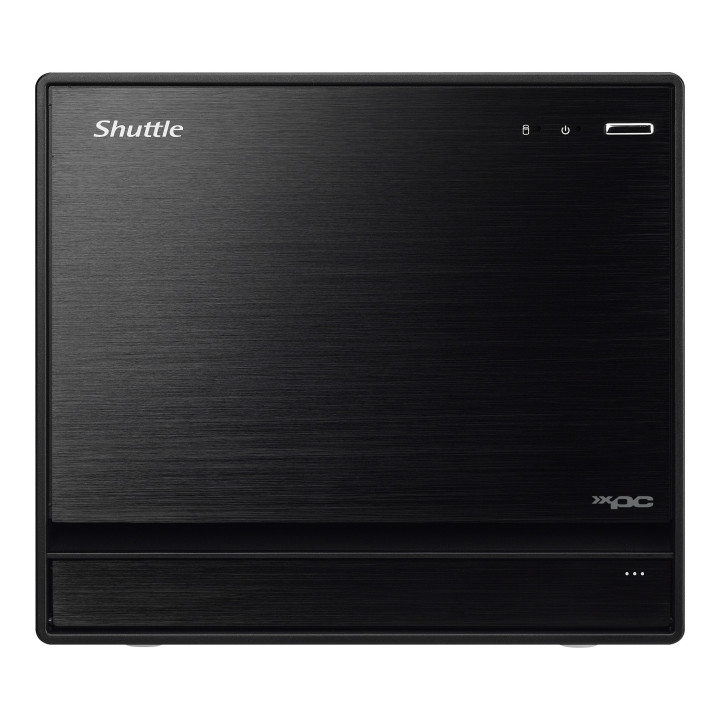

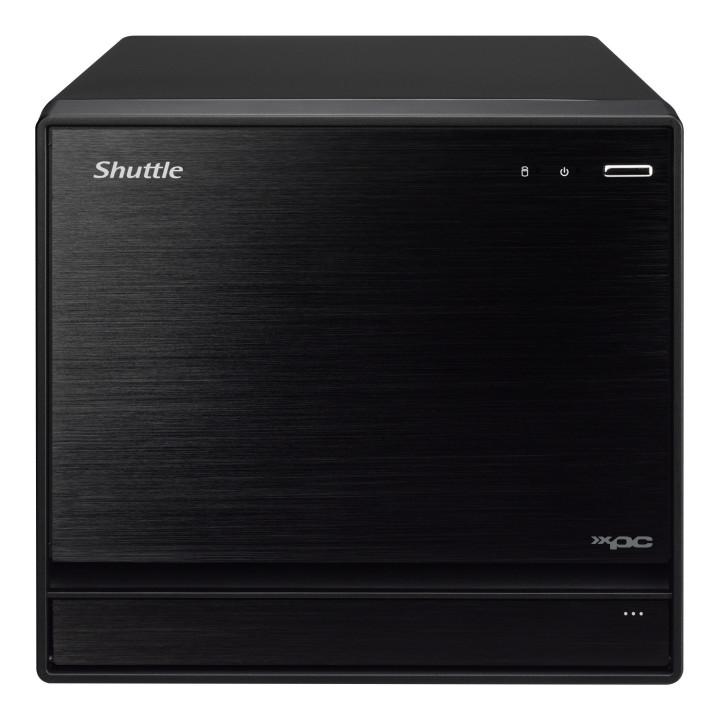

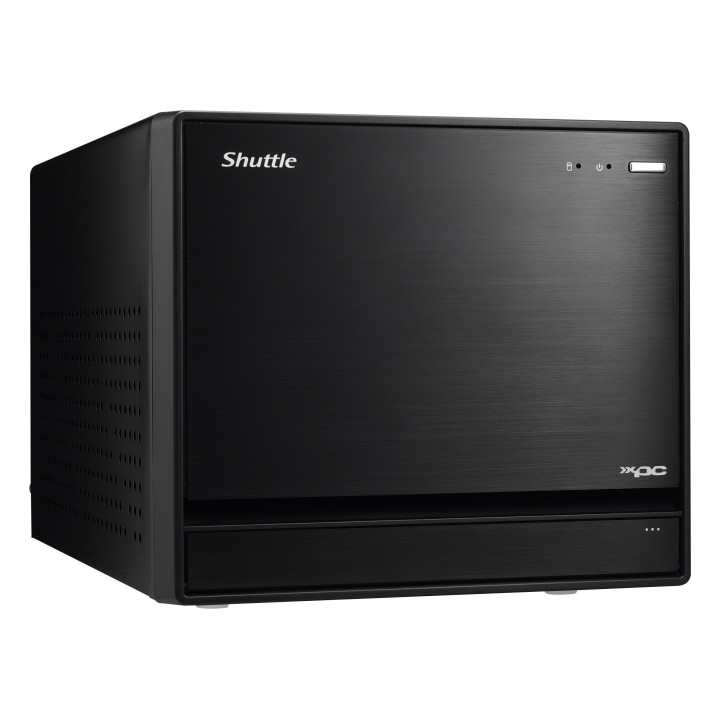

Shuttle XPC Cube SB860R8

Shuttle XPC Barebone SB860R8

XPC cube SB860R8
High-end performance in a 14-litre aluminium cube
Compact, stylish and uncompromisingly powerful: the SB860R8 redefines the boundaries of the 14-litre form factor. Designed for the groundbreaking Intel Core Ultra 200 desktop processors ("Arrow Lake-S"), this cube utilises integrated AI acceleration (NPU) for modern, workstation-class workloads.

The striking aluminium chassis houses a true storage powerhouse: space for four 3.5-inch hard drives and two M.2 SSDs (including PCIe 5.0) make it the ideal mini-server. With dual 2.5G networking, support for up to four UHD displays (including 8K support) and 192 GB of DDR5 RAM, the SB860R8 offers features usually reserved for full-tower systems – with maximum reliability in continuous operation.

For Intel Core Ultra 200 series "Arrow Lake-S" processors (LGA1851)
Up to 192 GB of DDR5 memory (4× 48 GB modules)
PCI-Express-×16-5.0, supports dual-slot graphics cards
PCIe-×4-4.0 for expansion cards
Dual 2.5 Gbit RJ45 Intel network ports
Three M.2 slots (1× M.2-2280 PCIe 5.0, 1× M.2-2280 PCIe 4.0, 1× M.2-2230)
4× SATA and space for 4× 3.5" drives (supports 2.5" with accessories)
Integrated Neural Processing Unit (NPU) for AI workloads

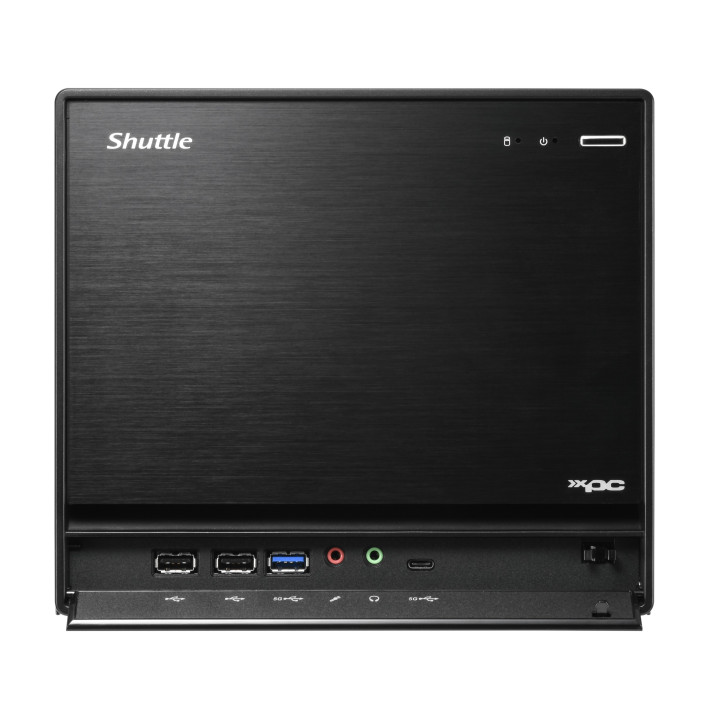

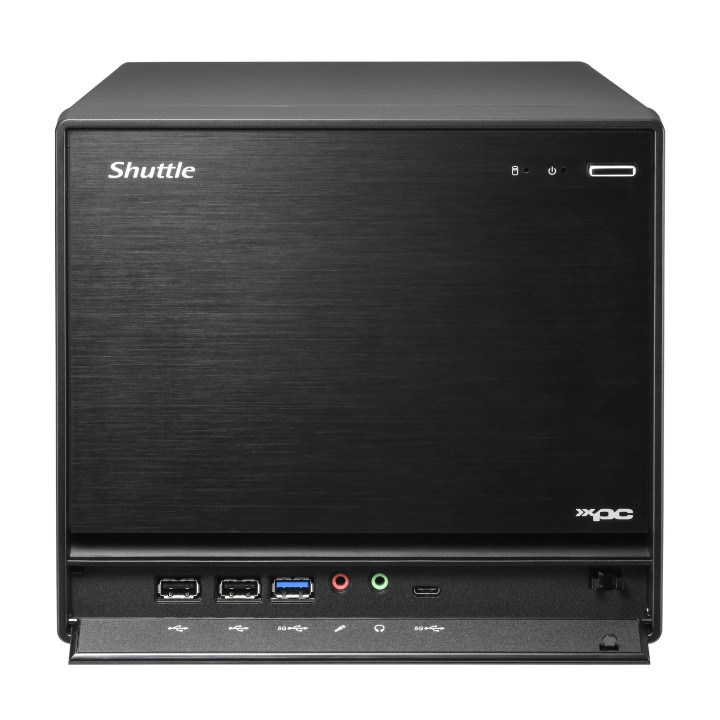

10 USB ports (incl. 1× USB 3.2 Gen 2 Type-C, 3× USB 3.2 Gen 2 Type-A)

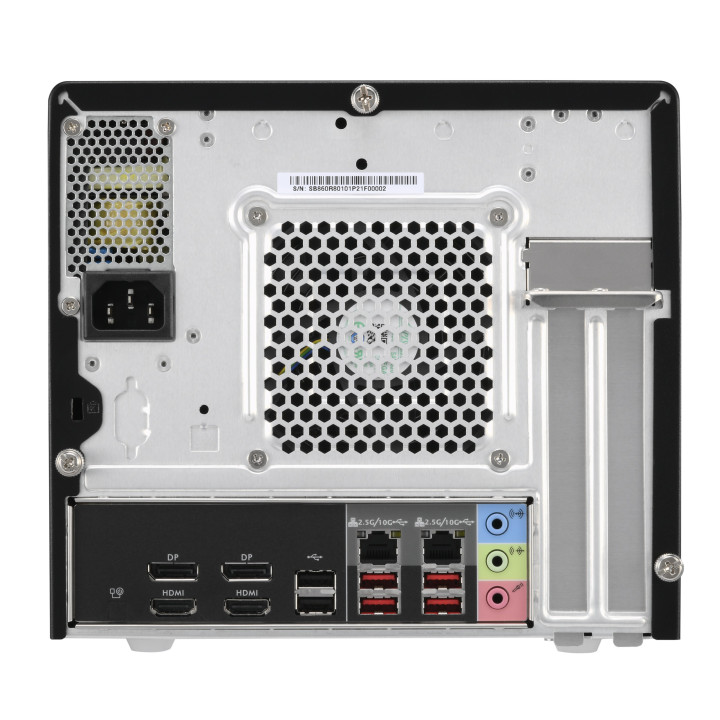

2× HDMI (2.1 & 2.0b) and 2× DisplayPort 1.4a (supports 4 UHD displays)
Remote power-on connection

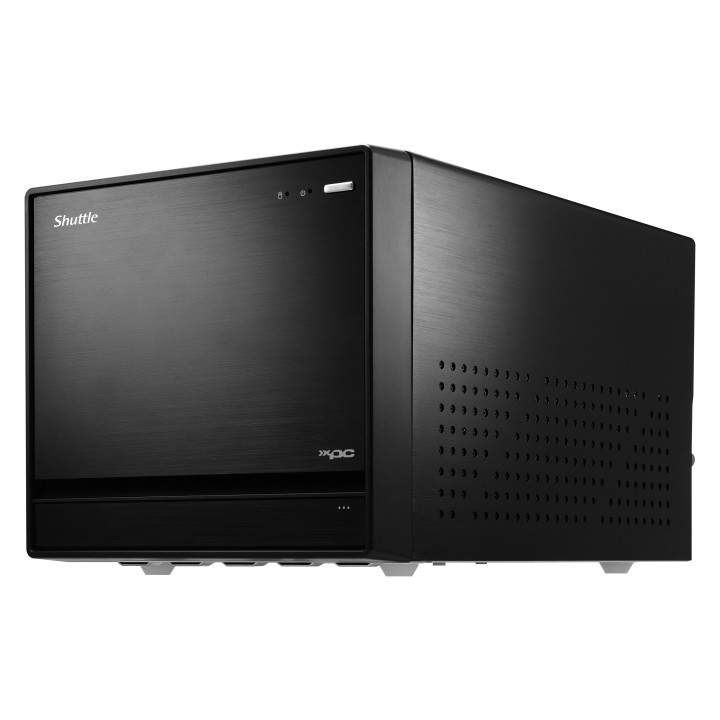

Aluminium chassis (33.2 × 21.5 × 19.0 cm DWH)

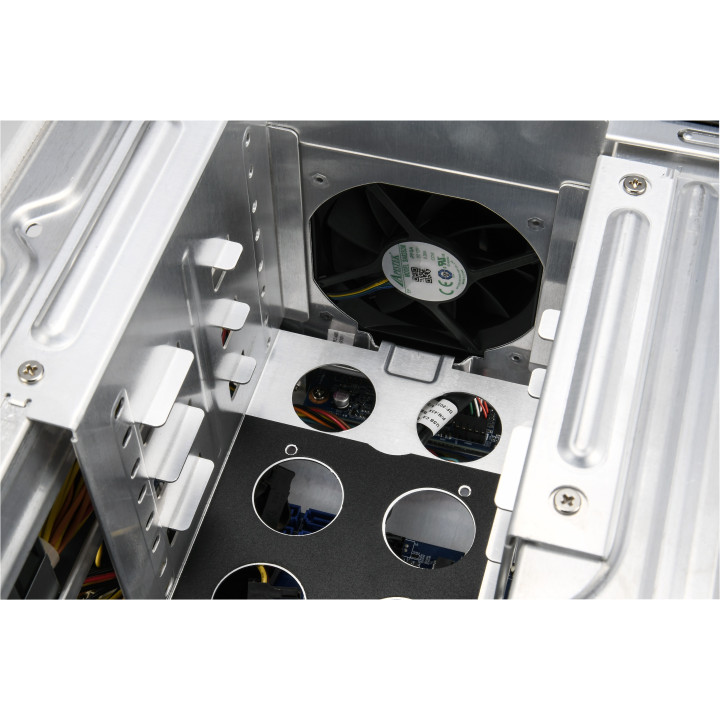

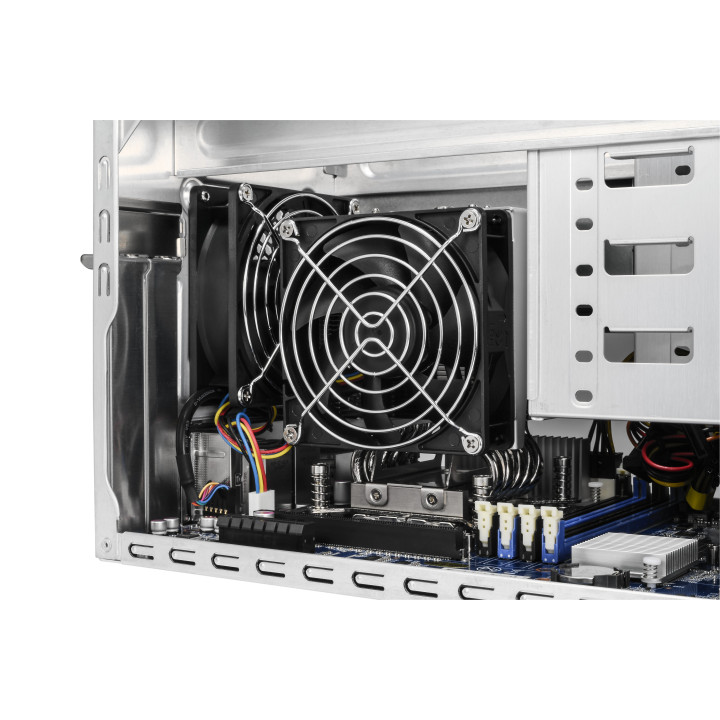

Heat-pipe cooling system and extra fan for hard drives
500 watt power supply unit (80 PLUS Gold)
