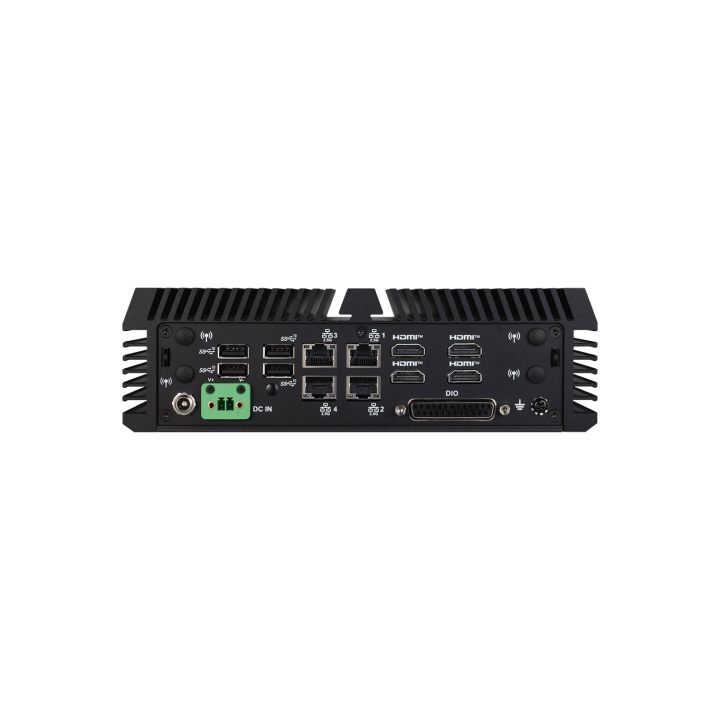

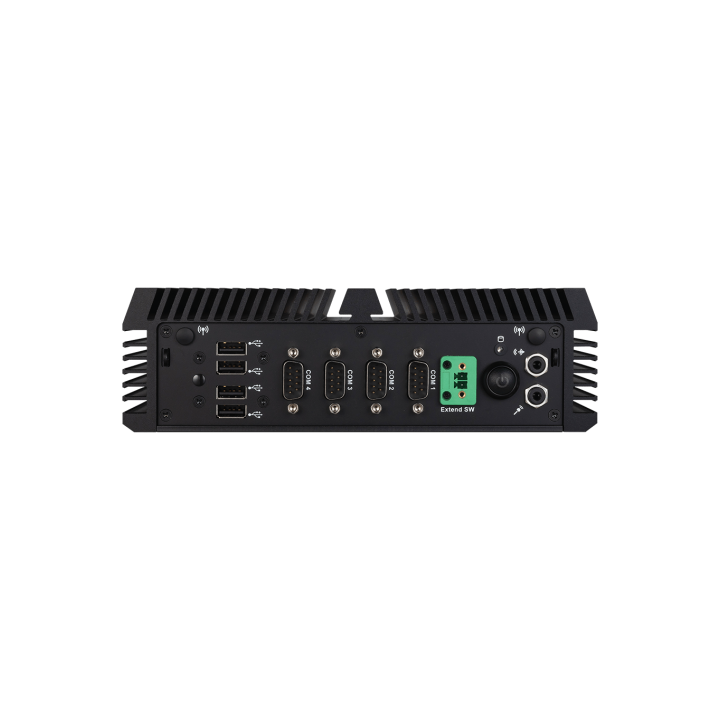

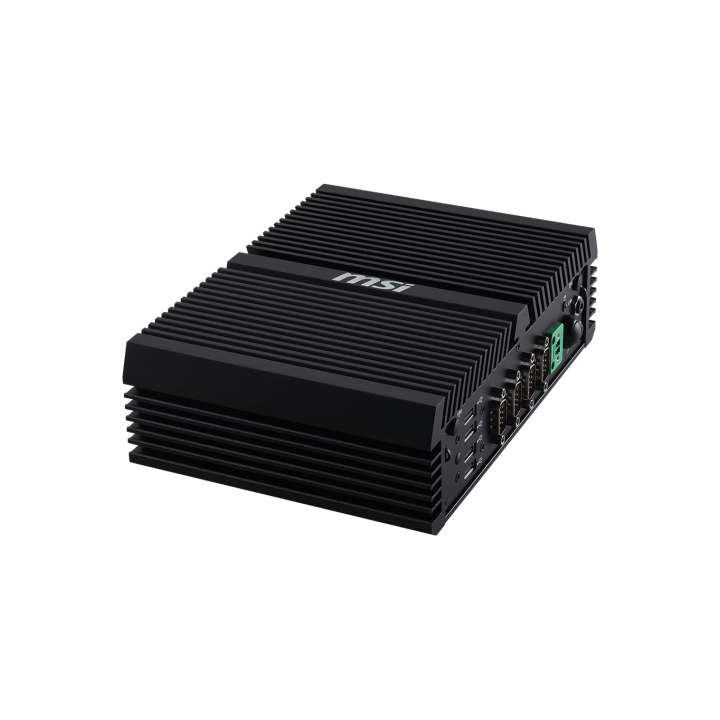

MSI BoxPC MS-C906 i5-1345UE

MSI BoxPC MS-C906 i5-1345UE

MS-C906
Compact-Size Box PC with Intel® Raptor Lake-P U Series Processor for Ultra Low-Power Fanless Solution
Intel® 13th Gen Raptor Lake-P Embedded/Industrial SKU Series
1 DDR5 5200 MHz SODIMM Slots up to 32GB
Quadruple independent displays: 4 HDMI
4 2.5GbE LAN with RJ-45
1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
1 M.2 M key, 1 SATA 3.0 for storage (2.5” SSD)
4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM, Audio
Onboard TPM 2.0
6 opening resrved for antennas
Anti-Vibration & Shockproof Design to Compliance IEC 61373
Wide operating temperature: -20~70°C
Wide Voltage DC-IN 12~24V (OCP & OVP)
Ultra-Compact with fanless design
Support EDID Lock Display Function

Intel® Mobile i5-1345UE
1 x 262-pin SO-DIMM DDR5 Up to 32 GB
Intel® Iris® Xe Graphics
4 independent displays
HDMI 2.0 up to 4096 x 2340 @60Hz
4 x Intel® I226-LM GbE LAN
4 x COM ports
COM1~4 RS-232/422/485, 0V/5V/12V
GPIO 16-bit (Default 8 x GPI, 8 x GPO), 5V
DC-in 12V~24V Wide-Range (OCP & OVP)
215 x 155 x 65 mm
