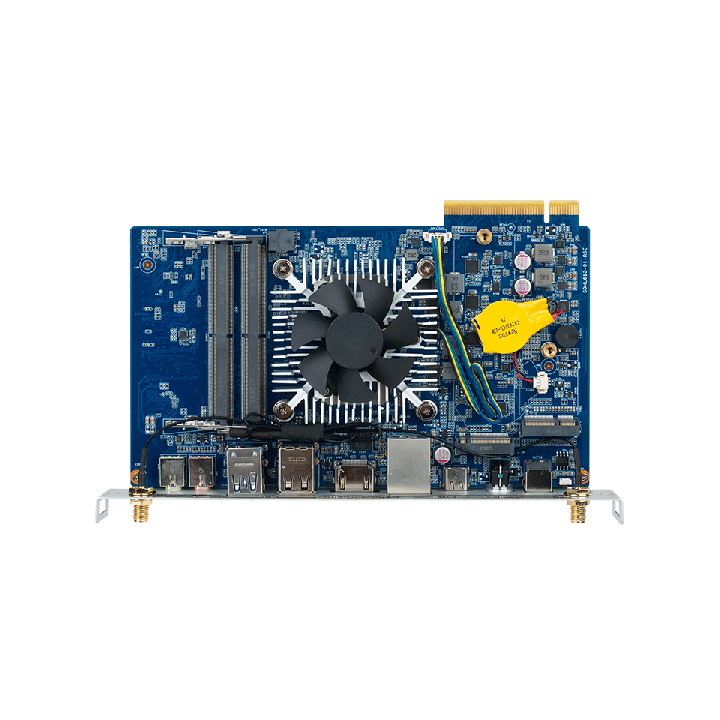

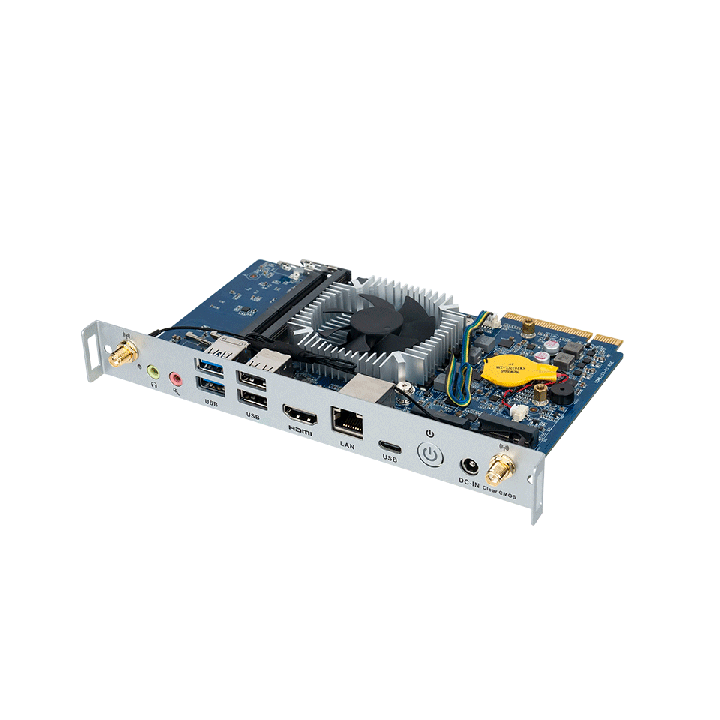

Giada SDM-L613 Intel® Core I5-1335U

Giada SDM-L613 Intel® Core I5-1335U

SDM-L613 Raptor Lake-P (Intel 13th Gen.)
Supporting 8K resolution Supporting vPro technology

Intel® 13th Gen. Raptor Lake Processors
Giada SDM-L613, armed with Intel Raptor Lake Core i3/i5/i7 processors, introduces a new era of performance and efficiency. The processors feature a combination of high-performance cores and efficient cores, working in harmony to optimize power consumption without compromising on processing power.

Supporting 8K Display

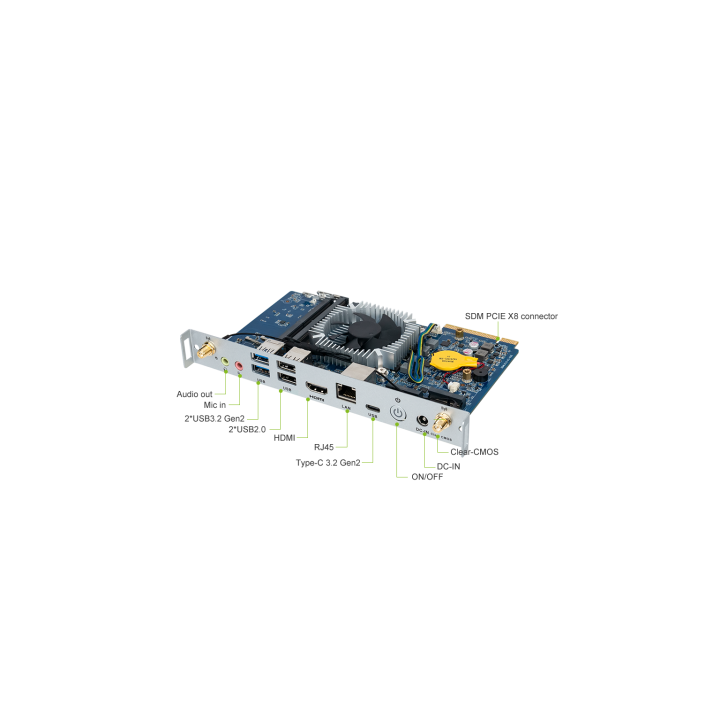

The module supports Intel® integrated Iris® Xe GPU (Core i5/i7). It supports max 8K resolution via the HDMI2.1 video out port. The SDM (PCIE X8) connector can delivery HDMI2.0 (4096 x 2304 @60 Hz), DP1.2 (4096 x 2304 @60 Hz), USB3.2 Gen1, UART, GSPI, I2C, PCIe, and SYS_FAN signals connect

Intel® vPro Technology
Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

Intel® Core I5-1335U
Intel® Iris® Xe Graphics
2 x SO-DIMM DDR5-5200 MHz)
1 x M-key M.2 (2280) for PCIe SSD
1 x 2.5 GbE RJ45
1 x E-key M.2 (2230) for WiFi 6 / CNVi)
1 x USB Type-C3.2 Gen1,
2 x USB3.2 Gen2, 2 x USB2.0
1*HDMI
175*110mm
