Giada SDM-L612 Intel® Core I3-1215U

Giada SDM-L612 Intel® Core I3-1215U

SDM-L612
Alderr LakP (Intel 12th Gen.) Supporting 4K resolution
High Computing Performance
Powered by Intel? 12th Gen. CPU
Giada SDM-L612, armed with Intel Alder Lake Core i3/i5/i7 processors, introduces a new era of performance and efficiency. The processors feature a combination of high-performance cores and efficient cores, working in harmony to optimize power consumption without compromising on processing power.

Supporting 8K Display

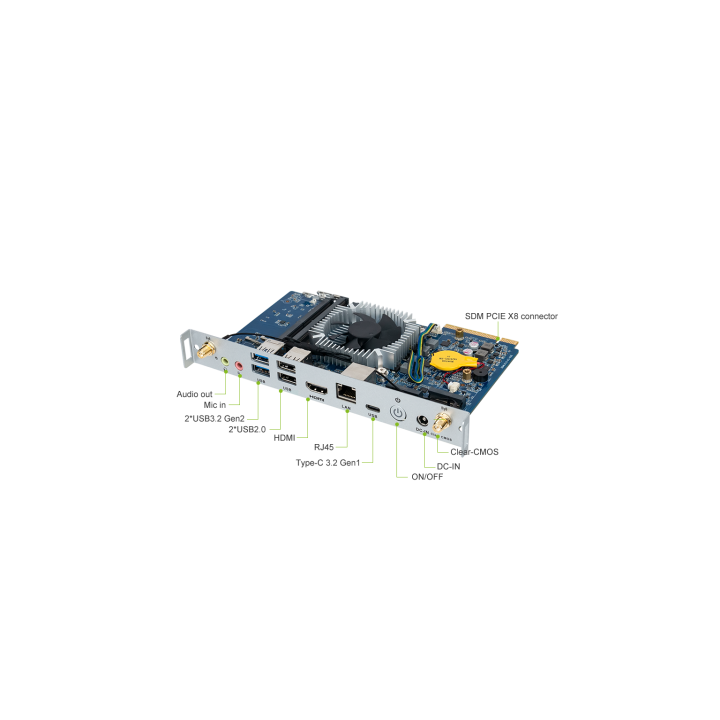

The module supports Intel? integrated Iris? Xe GPU (Core i5/i7), which has 50% graphic performance improvement compared with last generation. It supports max 8K resolution via the SDM PCIE X8 connector. There is another HDMI2.0 port (Max. 4096 x 2304@60 Hz) on the rear side, which can support a second display.

Intel® Core™ i3-1215U 6 Cores
2 x SO-DIMM DDR5-5200 MHz Up to 64 GB
Intel® UHD Graphics
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K60fps 12b 4:2:0 HEVC/VP9/SCC
1 x Intel® Ethernet Controller I225-LM
1 x USB Type-C3.2 Gen1,
2 x USB3.2 Gen2, 2 x USB2.0
175mm x 110mm (6.89” x 4.33” )
